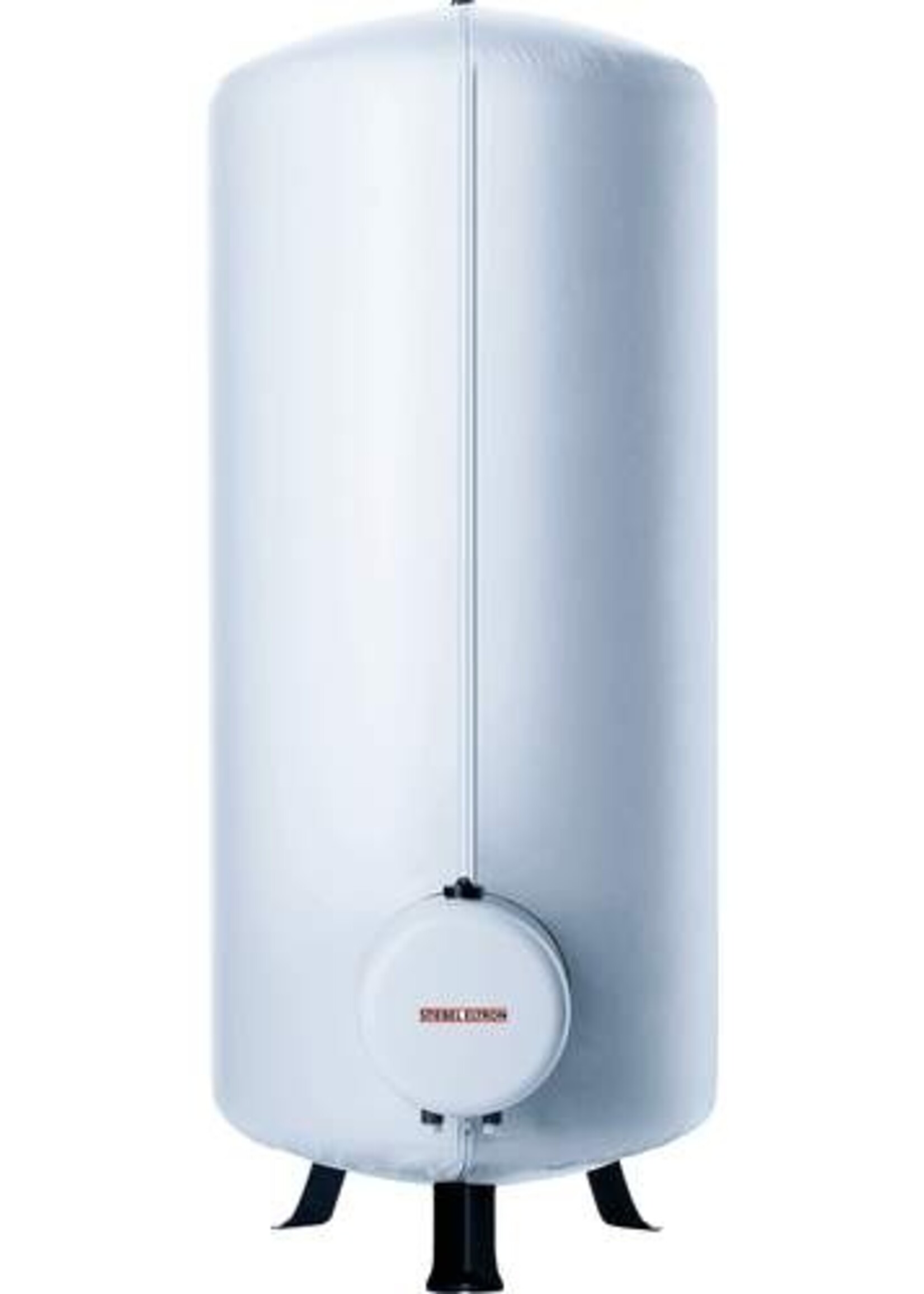

Stiebel Eltron Stiebel Eltron SHW 200ACE Elektroboiler 200 Liter Stahl zur Bodenmontage

Brand	Stiebel Eltron
Supplier code	070074
EAN Code	4017210700749
Discount group	094
Width	550 mm
Height	1578 mm
Depth	690 mm
Nom. power	6 kW
With tap/mixer tap	No
Diameter	550 mm
Tank volume	200 l
Energy efficiency class	C
Temperature limitation	Yes
Material boiler barrel	Steel
With thermometer	Yes
With temperature indication	Yes
Frequency	50/60 Hz
Degree of protection (IP)	IP25
Connection voltage	230 - 400
Placement horizontally	No
Water heating energy efficiency (Nwh)	39%
Capacity profile	XL
Nom. diameter drain connection	1" (25)
Nom. diameter hot tap water	1" (25)
Nom. diameter cold tap water	1" (25)
Material coat	Steel
Tap capacity at 60 °C continuous	30 l/min
Heating time from 10 °C - 65 °C	120 min

With cleaning opening	No
Protective anode	Yes
Wall mounting	No
Max. working pressure	6 bar
External pipe diameter cold tap water	33.7 mm
External pipe diameter hot tap water	33.7 mm
Low pressure version	No
With circulation connection	Yes
With pressure reducing valve	No
Applicable at normal water pressure	Yes
Cold tap water connection	External thread
Hot water connection	External thread
External pipe diameter circulation line	21.5 mm
Connection of circulation line	External thread
Drain connection connection	External thread
Placement vertically	Yes
Duo version	No
Implementation form	Standing
Max. permissible operating pressure	6 bar
Three phase execution	Yes
Hot fill	Yes
With night current switching	No
Nom. diameter circulation pipe	1/2" (15)
Suitable for boiling water	No
With water cooler	No
Baseboard boiler	No

The SHW 200 ACE standing boiler is an example of robust reliability. This economical and cost-effective model has optimum equipment for every home, because it supplies multiple taps with hot water without any problems. All models have a solid steel casing. Thanks to the special internal coating, you benefit from a long service life of the boiler.

The main features

Standing boiler for central hot water supply
Thermometer (in the switch room) for monitoring during operation
Including highly efficient insulation for low heat losses
Safety anode for a long life
