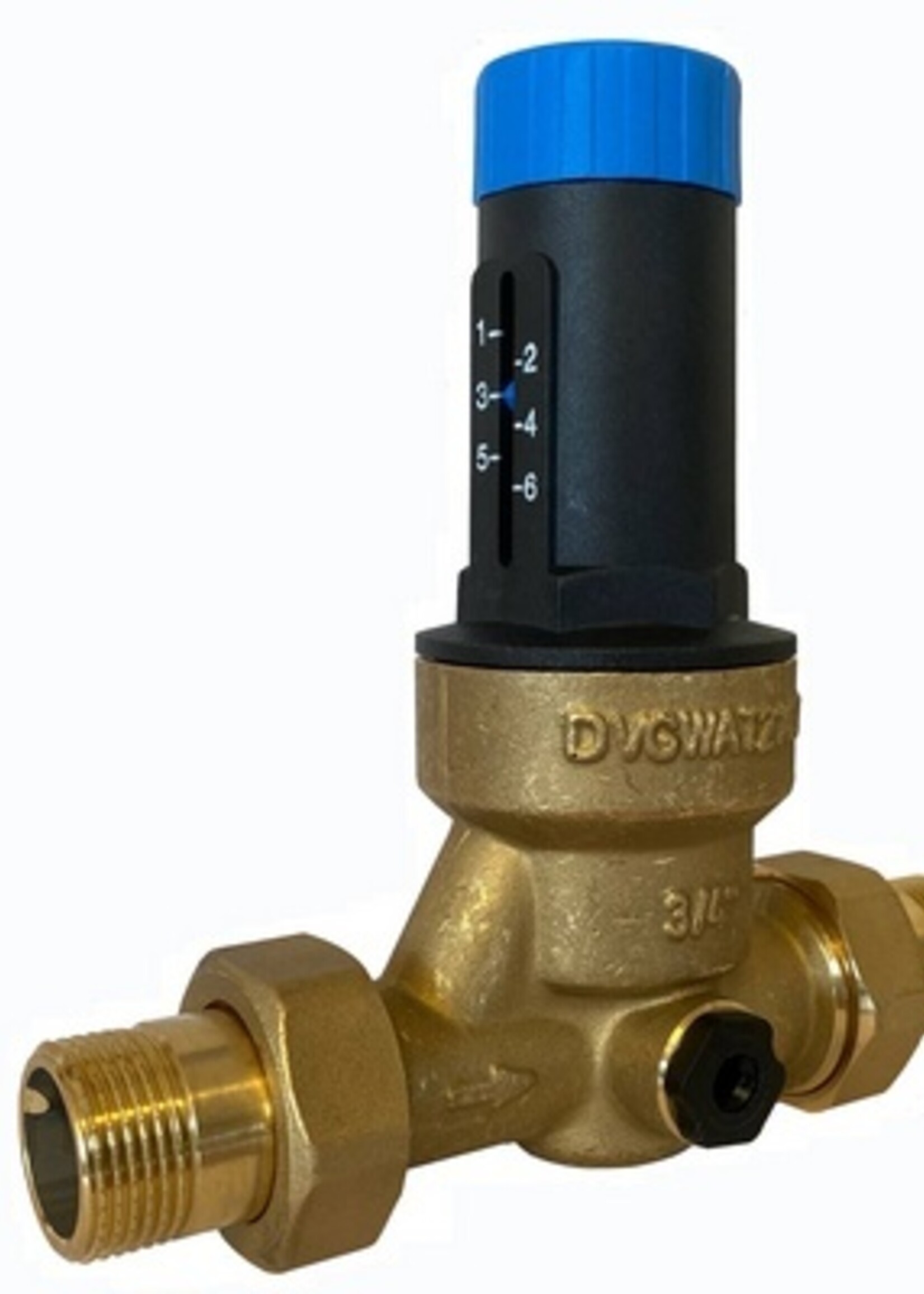

3/4"MM PRESSURE REDUCING VEIL WITH READING SCALE

pressure reducer with brass housing with stainless steel internal filter
connection: 2-piece couplings, including 1/4" manometer connections on both sides
max. inlet pressure: 25 bar
adjustment range: 1.5 - 6 bar
factory setting: 3 bar
equipped with an external scale for easy pressure adjustment
t° max: 60°C
Pressure reducing body and laiton equipment d\'un filtre interne en INOX
Raccordement : raccorden en deux parties, with connections manomètre 1/4" des deux côtés
Pression d\'entrée maximum : 25 bar
Plage de réglage : 1.5 - 6 bar
Usine regulation: 3 bar
Equipé d'external échelle pour un réglage facile de la pressure
Maximum temperature: 60°C
Druckminder with Messinggehäuse and integrated stainless steel filter
Anschluss: AG AG, incl. 1/4"-Manometer connection on both sides
Max. input pressure: 25 bar
Installation range: 1.5 - 6 bar
Used with external pressure adjustment scale
Working settings: 3 bar
Max. temperature: 60°C
DVGW-zertifiziert bis 30°C
pressure reducer with brass housing with stainless steel internal filter
connection: 2-piece couplings, including 1/4" pressure gauge connections on both sides
max. inlet pressure: 25 bar
control range: 1.5 - 6 bar
factory setting: 3 bar
equipped with an external scale for easy pressure adjustment
t° max: 60°C
