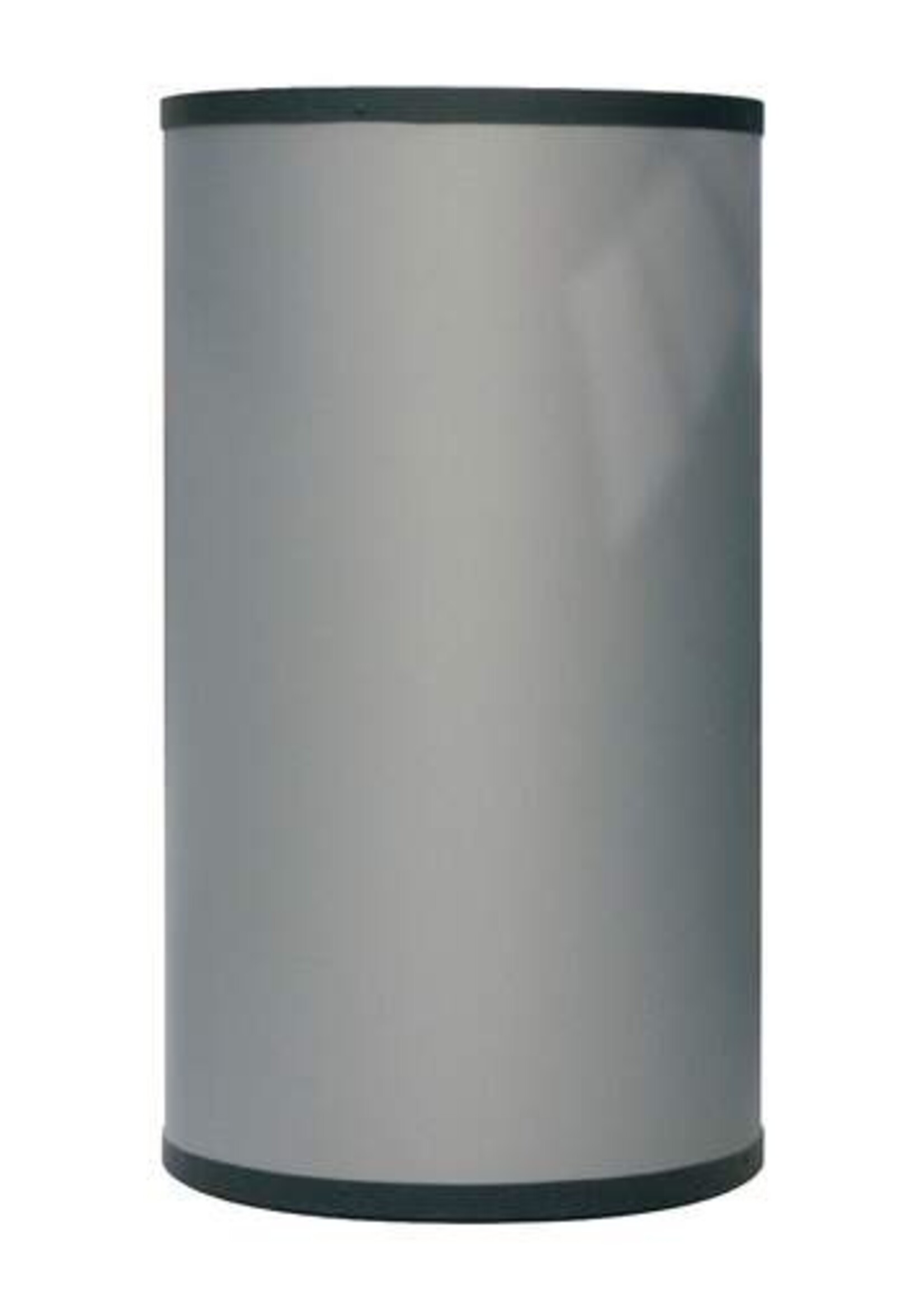

Atag CBS 200E boiler 190 liters incl. temperature sensor

The ATAG CBS200E hot water storage tank is designed to be combined with the ATAG Energion M Plus heat pumps. The storage tank has a capacity of 200 liters and is suitable for storing domestic hot water.

Features:

Suitable for a 2-3(4) person household
Improved heat transfer thanks to the enlarged heating coil surface
Works with Energion outdoor units from 5 to 8 kW
Made of enameled steel
Compact dimensions – 134 cm high, Ø 60 cm
Low empty weight – 83 kg

Specifications:

Feature	Value
Brand	Atag
Supplier Code	3060704
EAN Code	8719874615488
Discount Group	062
Width	0 mm
Height	1332 mm
Depth	731 mm
Diameter	660 mm
Energy Efficiency Class	B
Capacity	190 l
Tank Material	Steel
With Thermometer	No
With Manometer	No
Nominal Drain Connection Diameter	3/4" (20)
Nominal Primary Connection Diameter	1" (25)
Nominal Hot Water Connection Diameter	1" (25)
Tilt Height	1486.5 mm
Nominal Cold Water Connection Diameter	1" (25)
Casing Material	Plastic
Double Separation	No
With Cleaning Opening	Yes
Protection Anode	Yes
Wall Mounting	No
Tank Surface Protection	Enameled
With Pressure Reduction Valve	No
Heat Transfer	Coil
Cold Water Connection	External cylindrical thread BSPP-G (ISO 228-1)
Hot Water Connection	External cylindrical thread BSPP-G (ISO 228-1)
Circulation Line Connection	Internal cylindrical thread BSPP-G (ISO 228-1)
Drain Connection	Internal cylindrical thread BSPP-G (ISO 228-1)
Vertical Installation	Yes
Max. Primary Circuit Operating Pressure	3 bar
Max. Secondary Circuit Operating Pressure	7 bar
Primary Circuit Connection	Internal cylindrical thread BSPP-G (ISO 228-1)
Nominal Circulation Line Diameter	3/4" (20)
Max. Transferable Capacity 80/10-45°C	22.7 kW
