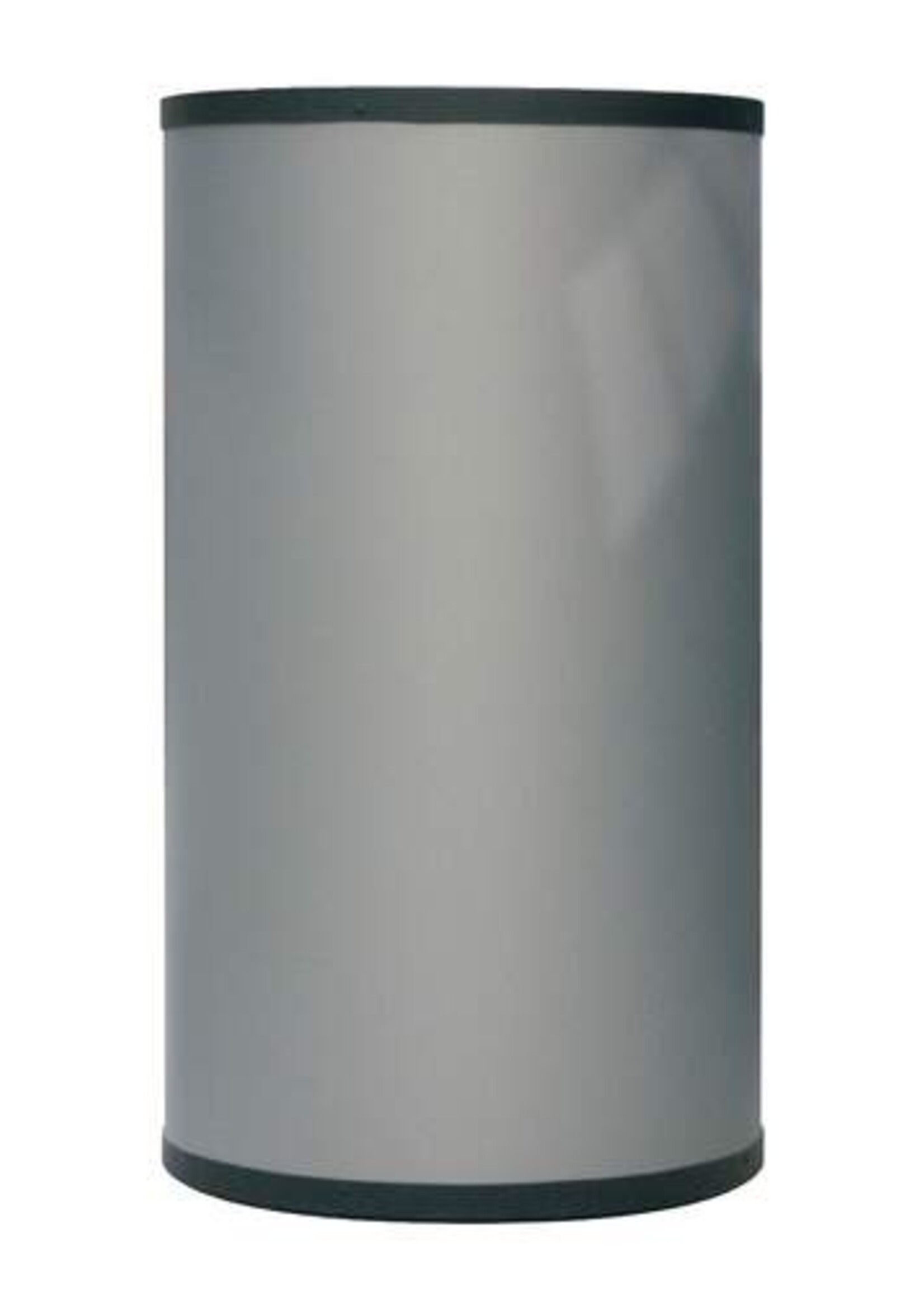

Atag CBS 300E boiler 280 liters incl. temperature sensor

The ATAG CBS300E hot water storage tank is designed to be combined with the ATAG Energion M Plus heat pumps. The tank has a capacity of 200 liters and is suitable for storing hot water.

Features:

Suitable for households of 3-4 people
Improved heat transfer thanks to the enlarged heating surface of the heat spiral
Works in conjunction with Energion outdoor units from 5 to 8 kW
Made from enamelled steel
Compact dimensions – 134 cm high, Ø 60 cm
Low empty weight – 83 kg

Specifications:

Feature	Value
Brand	Atag
Supplier Code	3060705
EAN Code	8719874615501
Discount Group	062
Width	0 mm
Height	1854 mm
Depth	731 mm
Diameter	660 mm
Energy Efficiency Class	B
Capacity	280 l
Material of Storage Tank	Steel
With Thermometer	No
With Manometer	No
Nominal Diameter of Drain Connection	3/4" (20)
Nominal Diameter Primary	1" (25)
Nominal Diameter Hot Water	1" (25)
Tilt Height	1968 mm
Nominal Diameter Cold Water	1" (25)
Material of Outer Shell	Plastic
Double Separation	No
With Cleaning Opening	Yes
Protection Anode	Yes
Wall Mountable	No
Surface Protection of Tank	Enamelled
With Pressure Reducing Valve	No
Heat Transfer	Spiral
Cold Water Connection	External thread cylindrical BSPP-G (ISO 228-1)
Hot Water Connection	External thread cylindrical BSPP-G (ISO 228-1)
Circulation Line Connection	Internal thread cylindrical BSPP-G (ISO 228-1)
Drain Connection	Internal thread cylindrical BSPP-G (ISO 228-1)
Vertical Mounting	Yes
Max. Working Pressure Primary	3 bar
Max. Working Pressure Secondary	7 bar
Primary Connection	Internal thread cylindrical BSPP-G (ISO 228-1)
Nominal Diameter Circulation Line	3/4" (20)
Max. Transferable Capacity 80/10-45°C	33.8 kW
