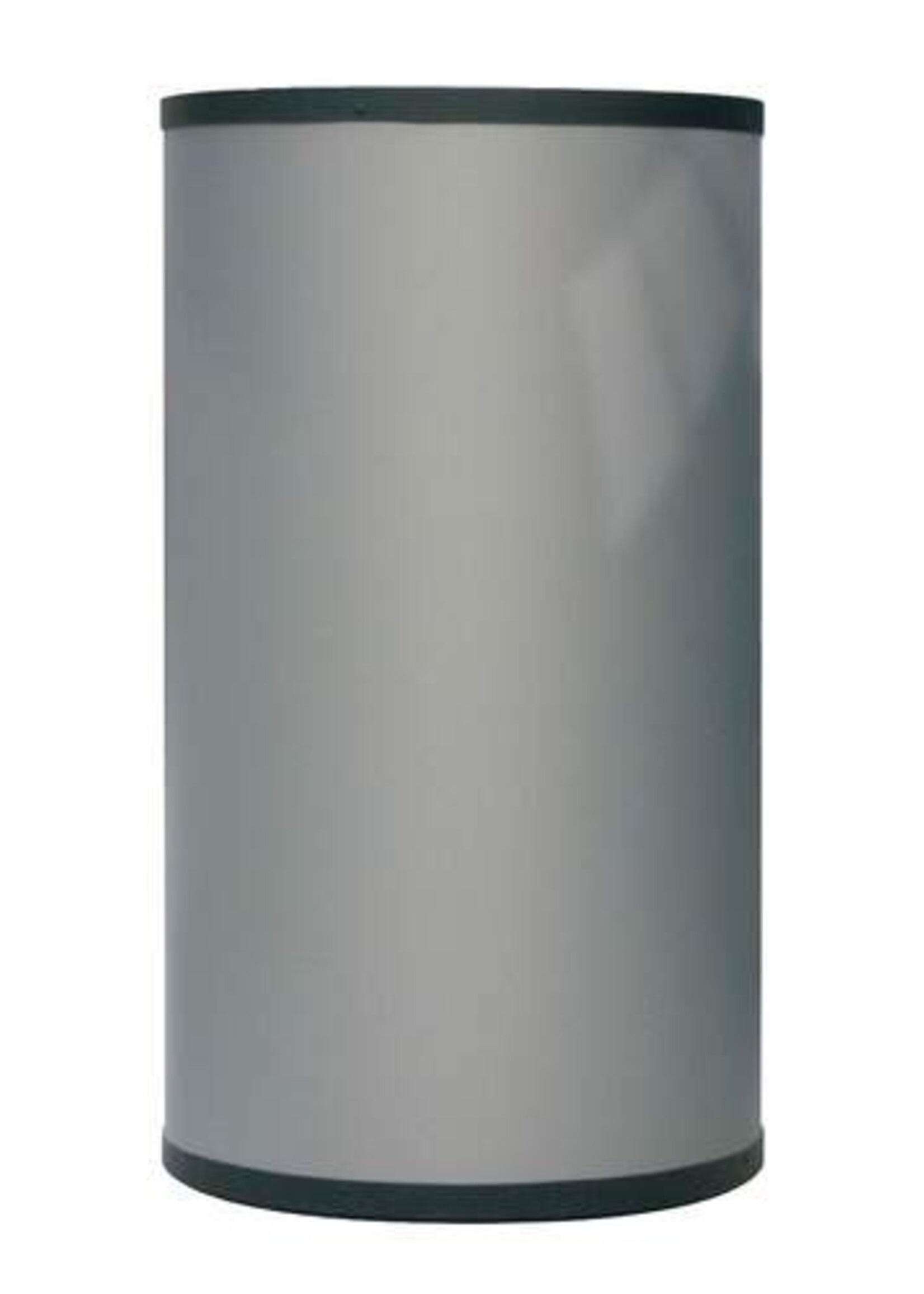

Atag CBS 450E boiler 435 liters

The ATAG CBS450E boiler is designed to be combined with the ATAG Energion M Plus heat pumps. The boiler has a volume of 435 liters and is suitable for the storage of hot water.

Features:

Suitable for households with more than 4 people
Better heat transfer thanks to the enlarged heating surface of the heat exchanger coil
Works in combination with Energion outdoor units from 5 to 8 kW
Made of enamelled steel
Compact dimensions – 134 cm high, Ø 60 cm
Low empty weight – 83 kg

Specifications:

Feature	Value
Brand	Atag
Supplier Code	3060706
EAN Code	8719874615518
Discount Group	062
Width	0 mm
Height	1978 mm
Depth	827 mm
Diameter	760 mm
Energy Efficiency Class	B
Volume	435 l
Material of Boiler Tank	Steel
With Thermometer	No
With Manometer	No
Nom. Diameter Drainage Connection	3/4" (20)
Nom. Diameter Primary	1" (25)
Nom. Diameter Hot Tap Water	1" (25)
Tilt Height	2119 mm
Nom. Diameter Cold Tap Water	1" (25)
Material of Casing	Plastic
Double Separation	No
With Cleaning Opening	Yes
Protection Anode	Yes
Wall Mounting	No
Surface Protection of Tank	Enamelled
With Pressure Reducing Valve	No
Heat Transfer	Coil
Cold Tap Water Connection	External Thread Cylindrical BSPP-G (ISO 228-1)
Hot Tap Water Connection	External Thread Cylindrical BSPP-G (ISO 228-1)
Circulation Pipe Connection	Internal Thread Cylindrical BSPP-G (ISO 228-1)
Drain Connection	Internal Thread Cylindrical BSPP-G (ISO 228-1)
Vertical Installation	Yes
Max. Working Pressure Primary	3 bar
Max. Working Pressure Secondary	7 bar
Primary Connection	Internal Thread Cylindrical BSPP-G (ISO 228-1)
Nom. Diameter Circulation Pipe	3/4" (20)
Max. Transferable Capacity 80/10-45°C	30.8 kW
