Maximum of 8 connected units:
More than 6000 cycles:
WiFi and App:
Plug & Play Installation:
Highly accurate state of charge (SOC).

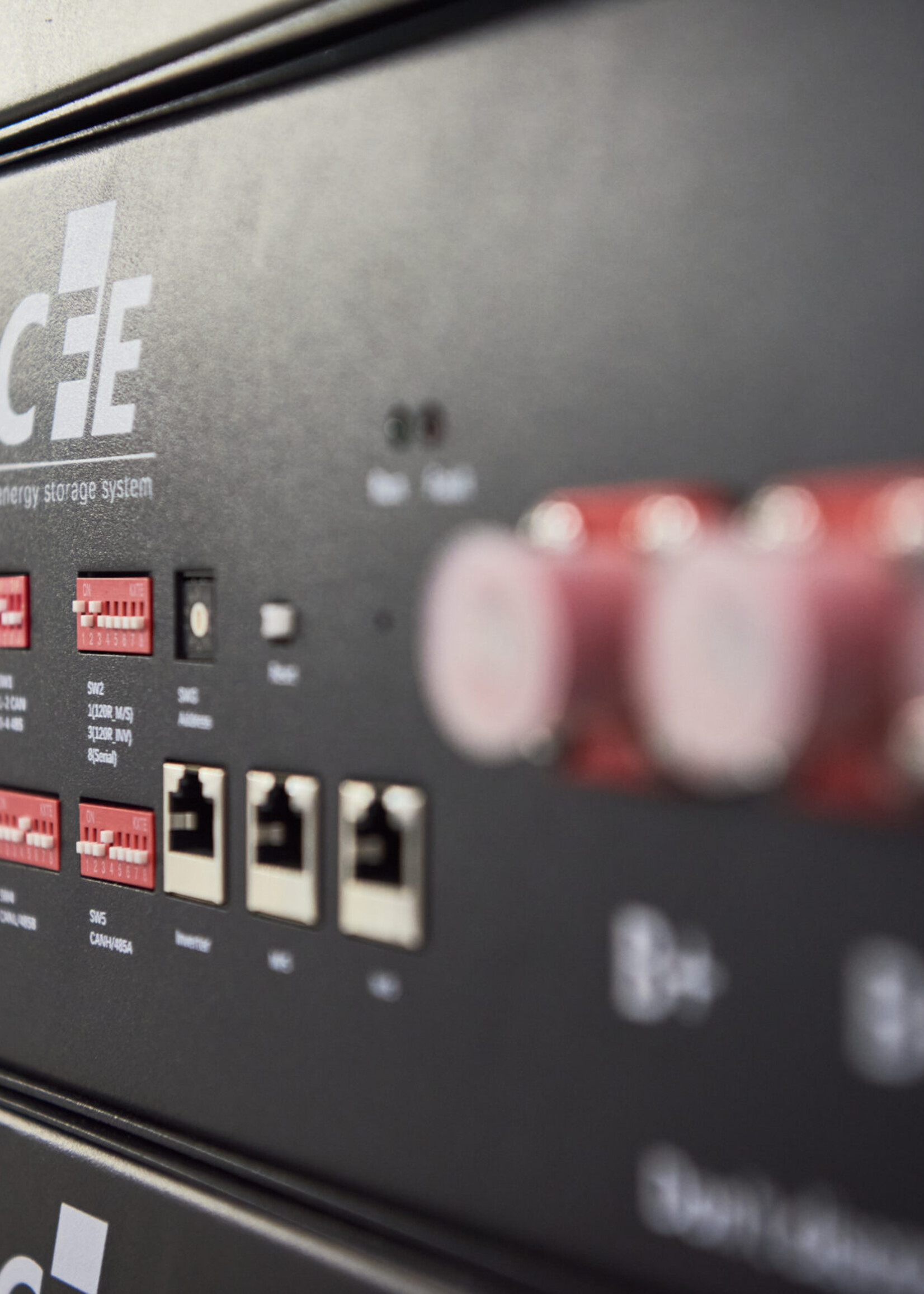

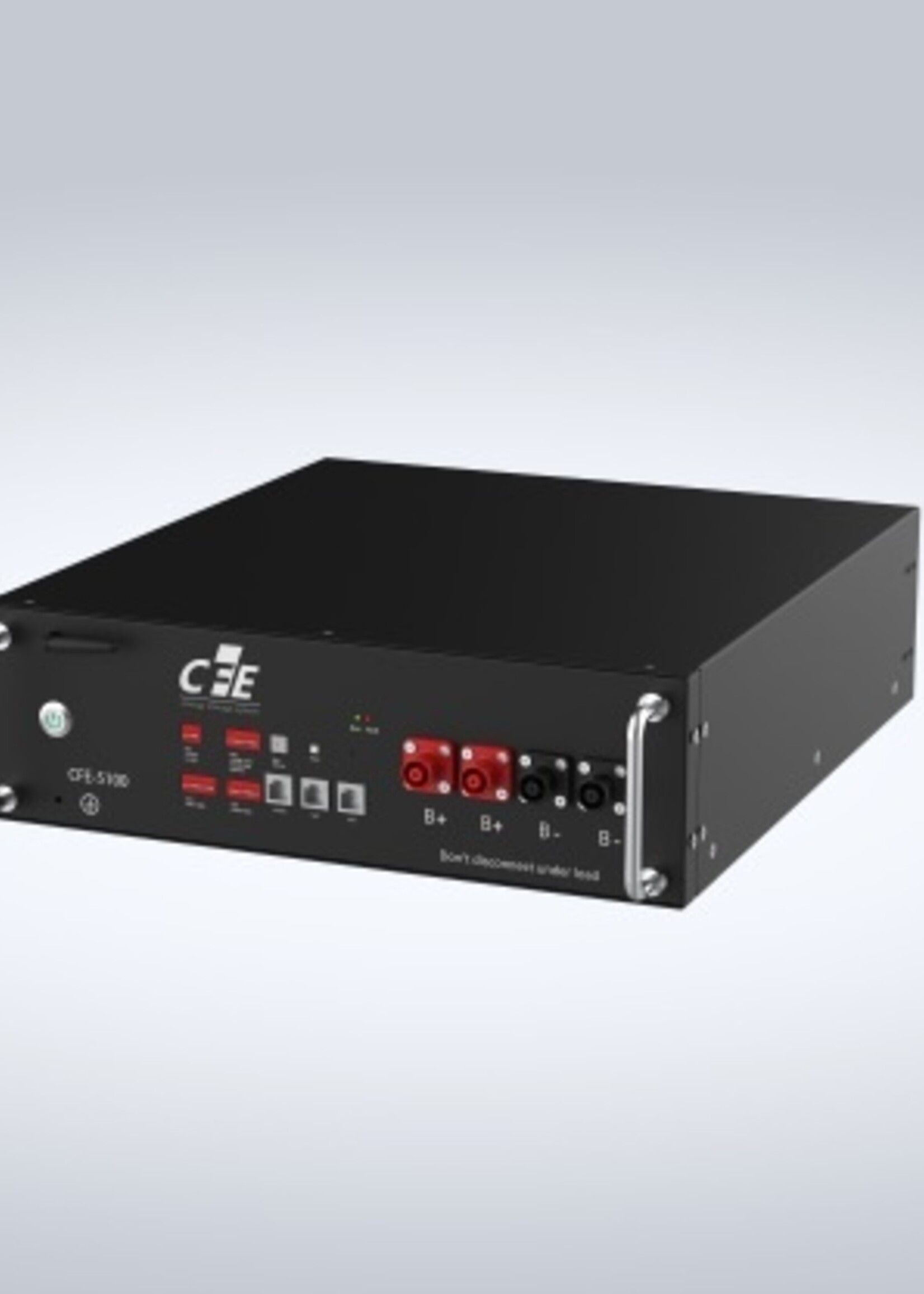

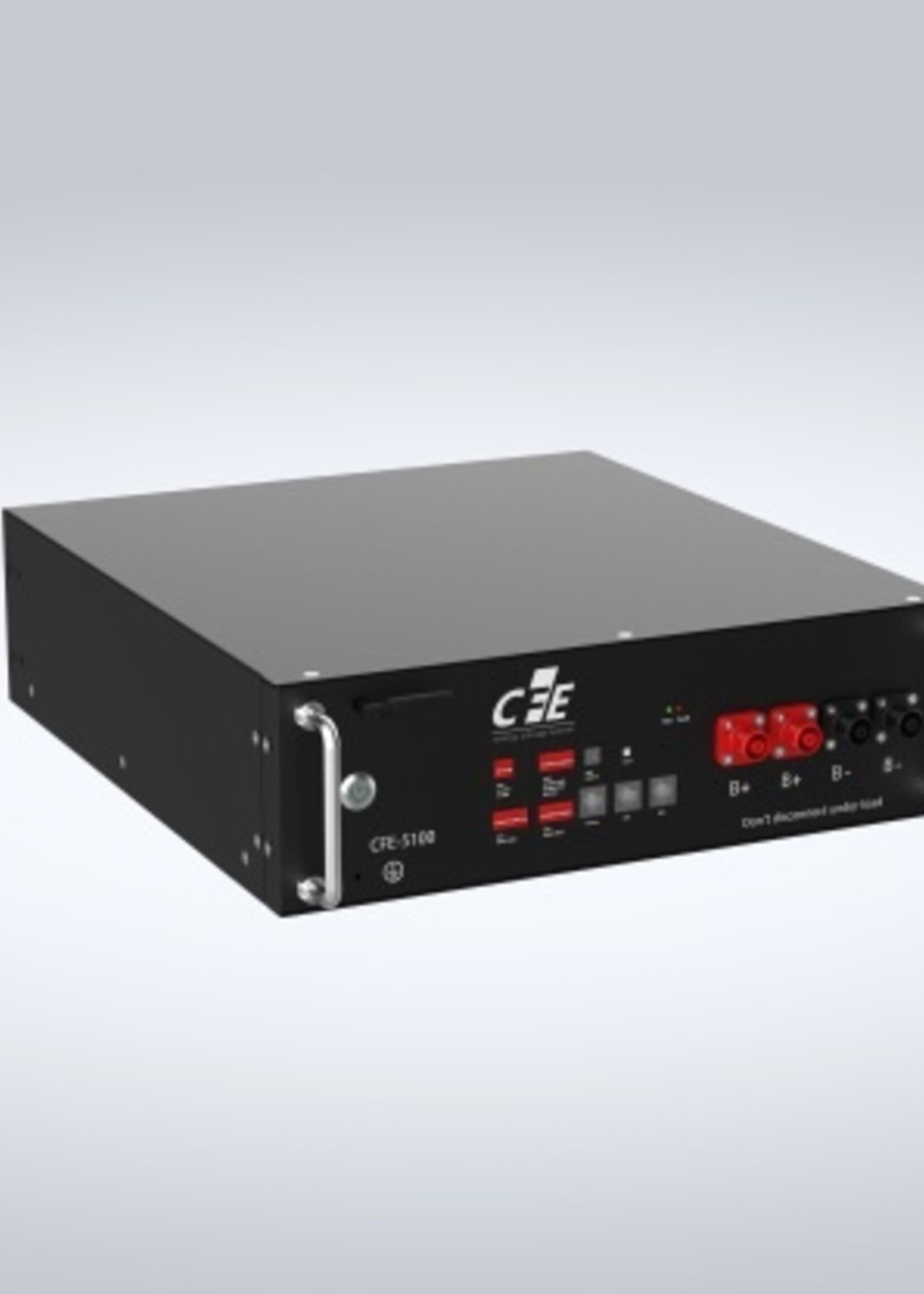

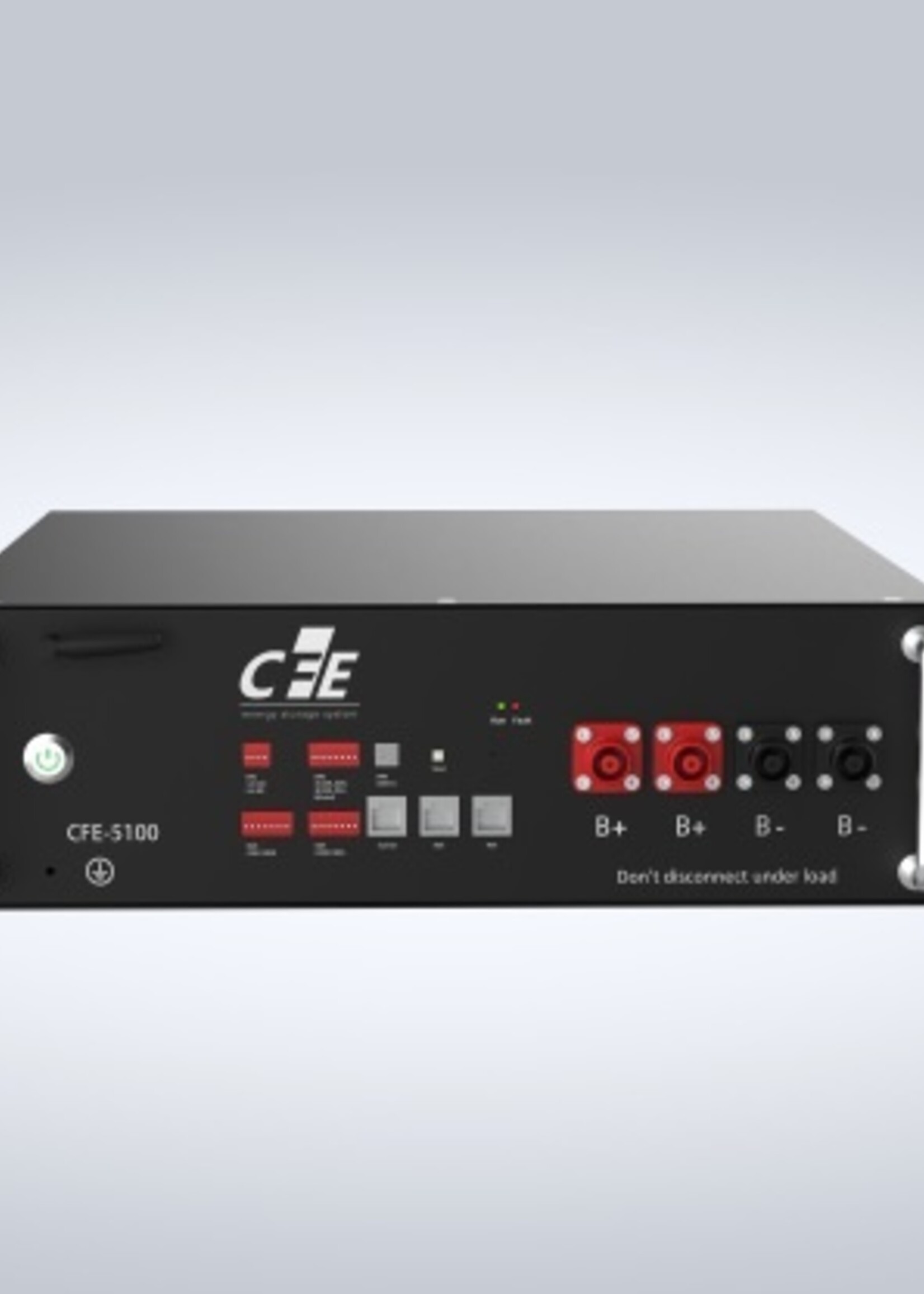

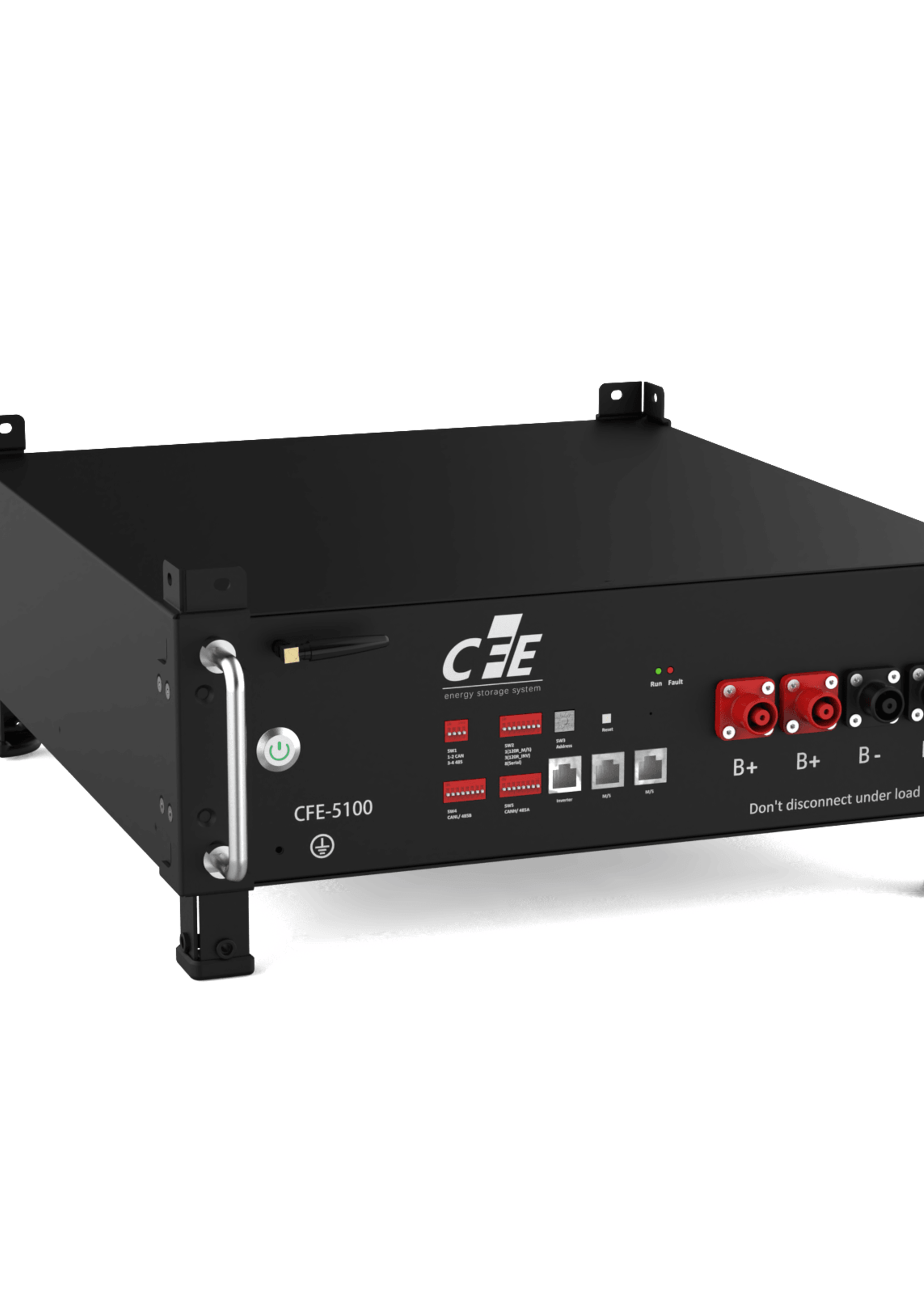

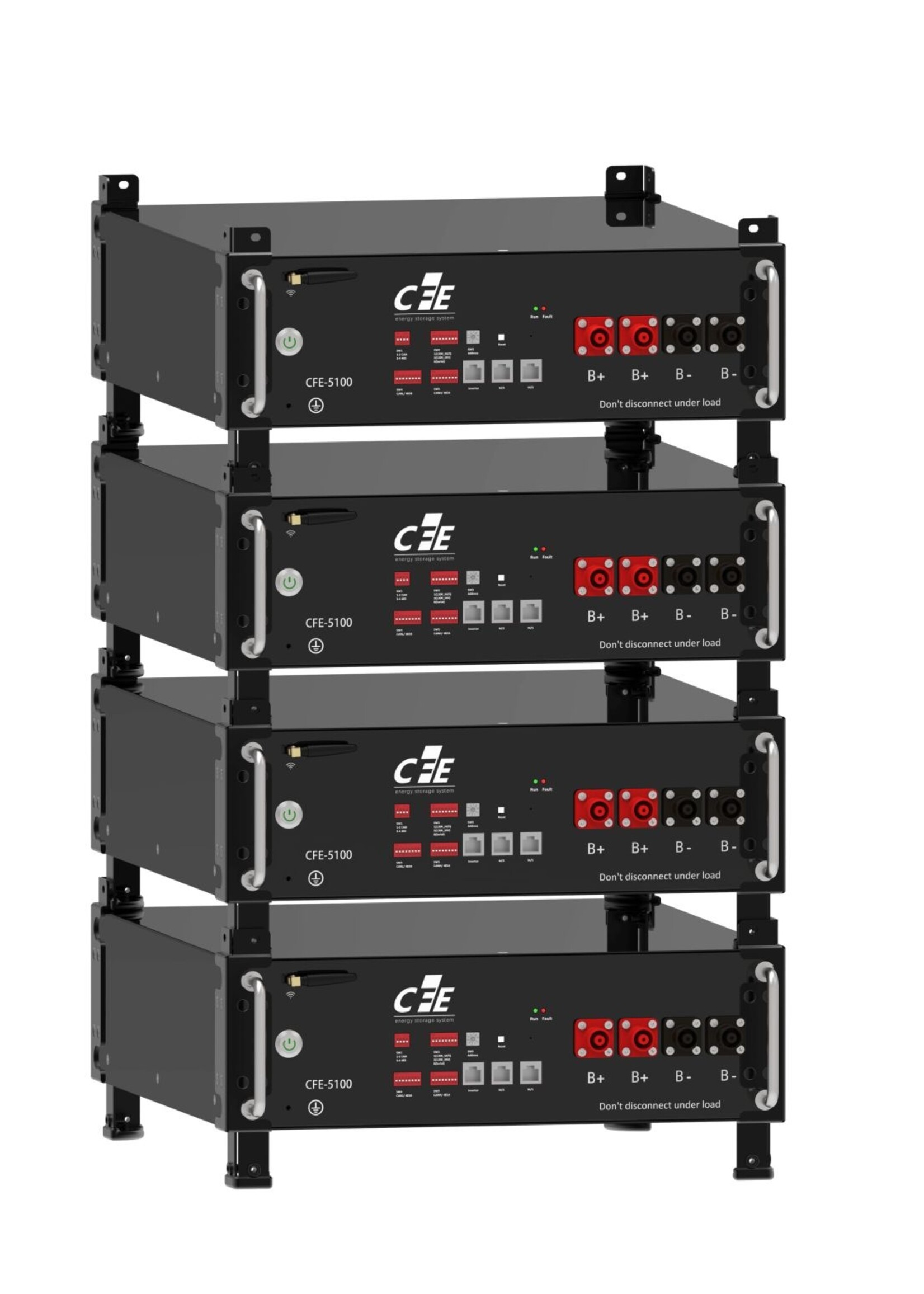

The CFE 5100 module with a capacity of 5.12 kWh is:
Security: The LFP battery (Lithium Iron Phosphate) provides the highest level of safety.

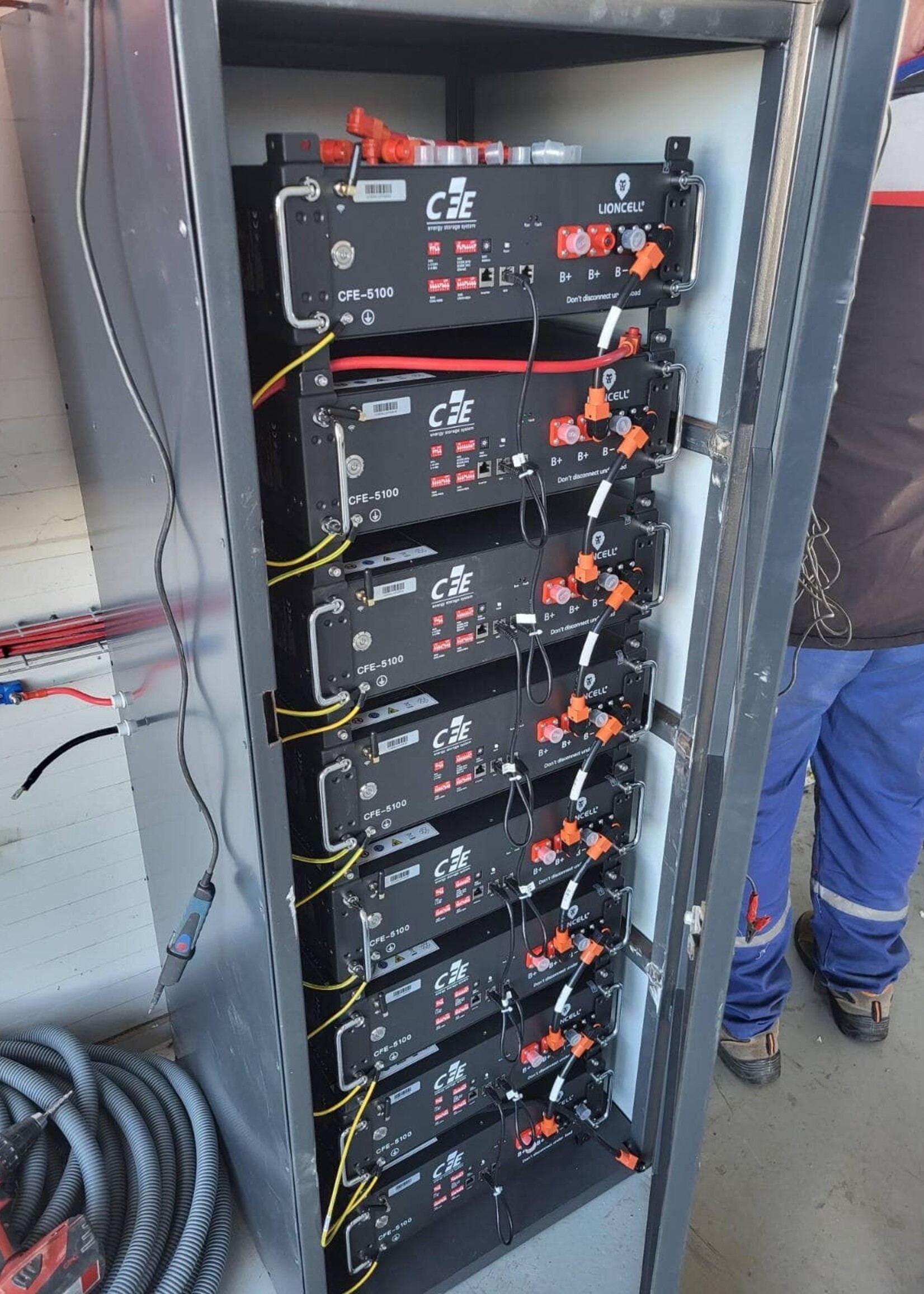

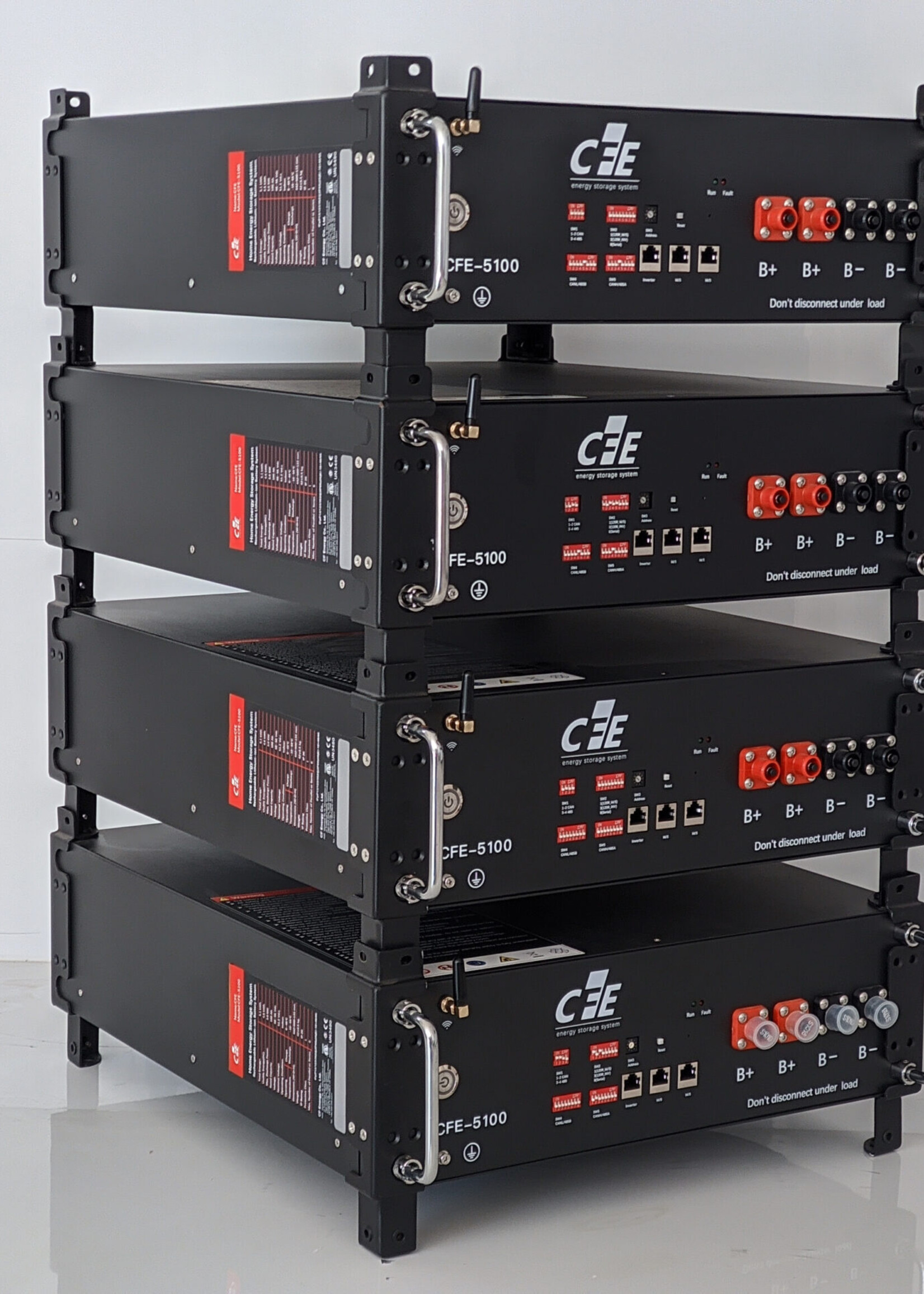

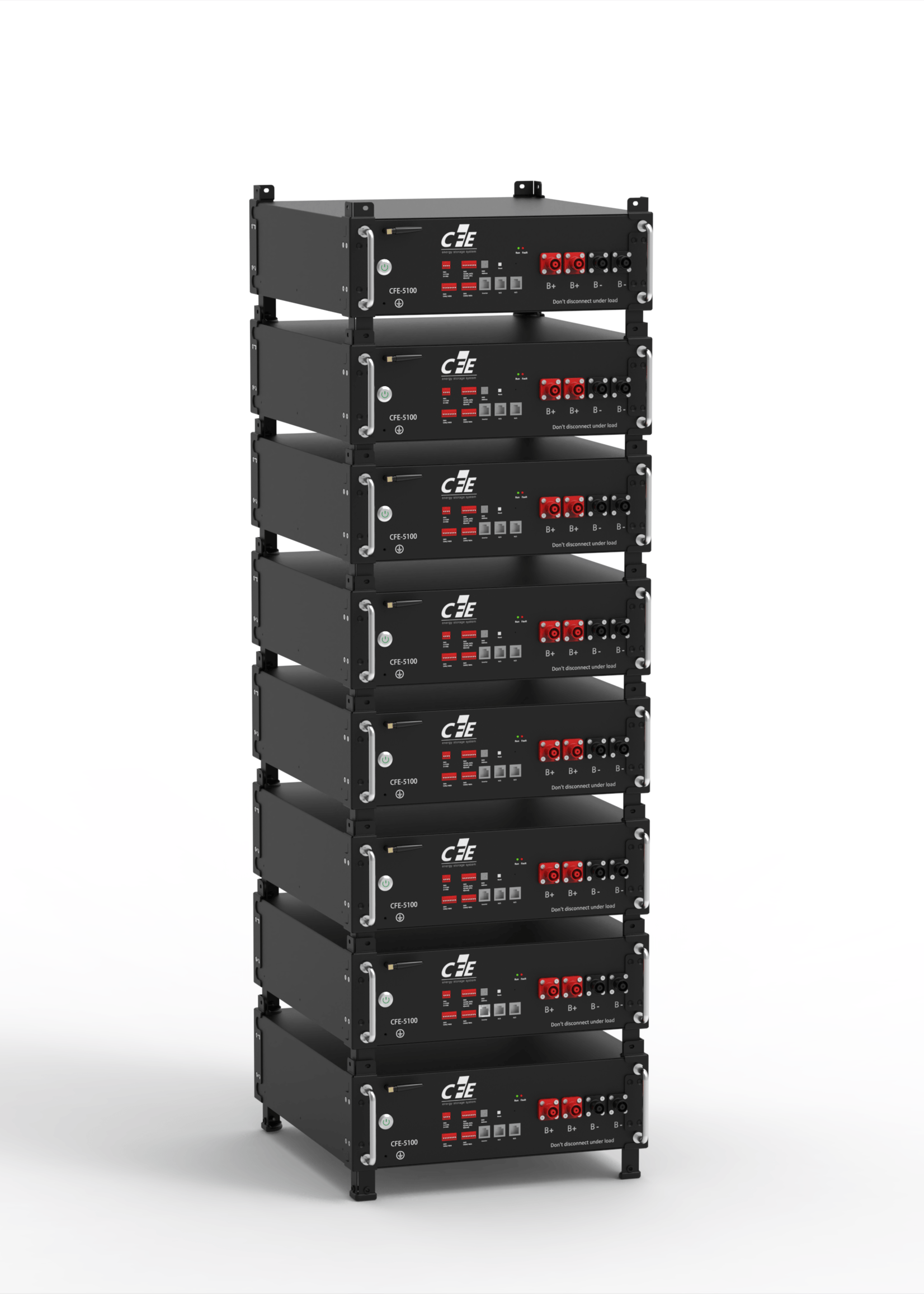

Maximum of 8 connected units: A flexible series or parallel solution to increase energy storage capacity without adding any additional hardware or modifying energy storage settings.
Lifecycle: More than 6000 cycles.
WiFi and App: Integrated WiFi OTA modem allows for online software updates, providing convenient after-sales service.
Installation: Simple terminal connection (Plug 'n' Play) minimizes installation time and costs.
Highly accurate state of charge (SOC): Accurate voltage and current monitoring for the mathematical state of charge (SOC) allows for effective assessment of internal losses and battery efficiency.
Basic Parameters | CFE 5100 |
---|---|
Nominal Voltage(V) | 51.2 |
Nominal Capacity(Wh) | 5120 |
Usable Capacity(Wh) | 4608 |
Dimension[W/H/D](mm) | 442*500*133 |
Weight (kg) | 42±0.5 |
Communication Port | CAN / RS485 |
Single string quantity(pcs) | 8 |
Charge Working Temperature(℃) | 0~45 |
DisCharge Working Temperature(℃) | -10~55 |
Storage Temperature(℃) | -10~35 |
Humidity | 0~95% (No Condensed Water) |
Altitude[m] | <2000 |
IP Rating | IP20 |
Warranty | 10 years |
Cycle life | 6000 |
Authentication Level | CE & TUV(IEC 62619, IEC 62040) UN3480 |
Cooling Type | Ambient Cooling |
Installation | Cabinet or Wall Mounting |
