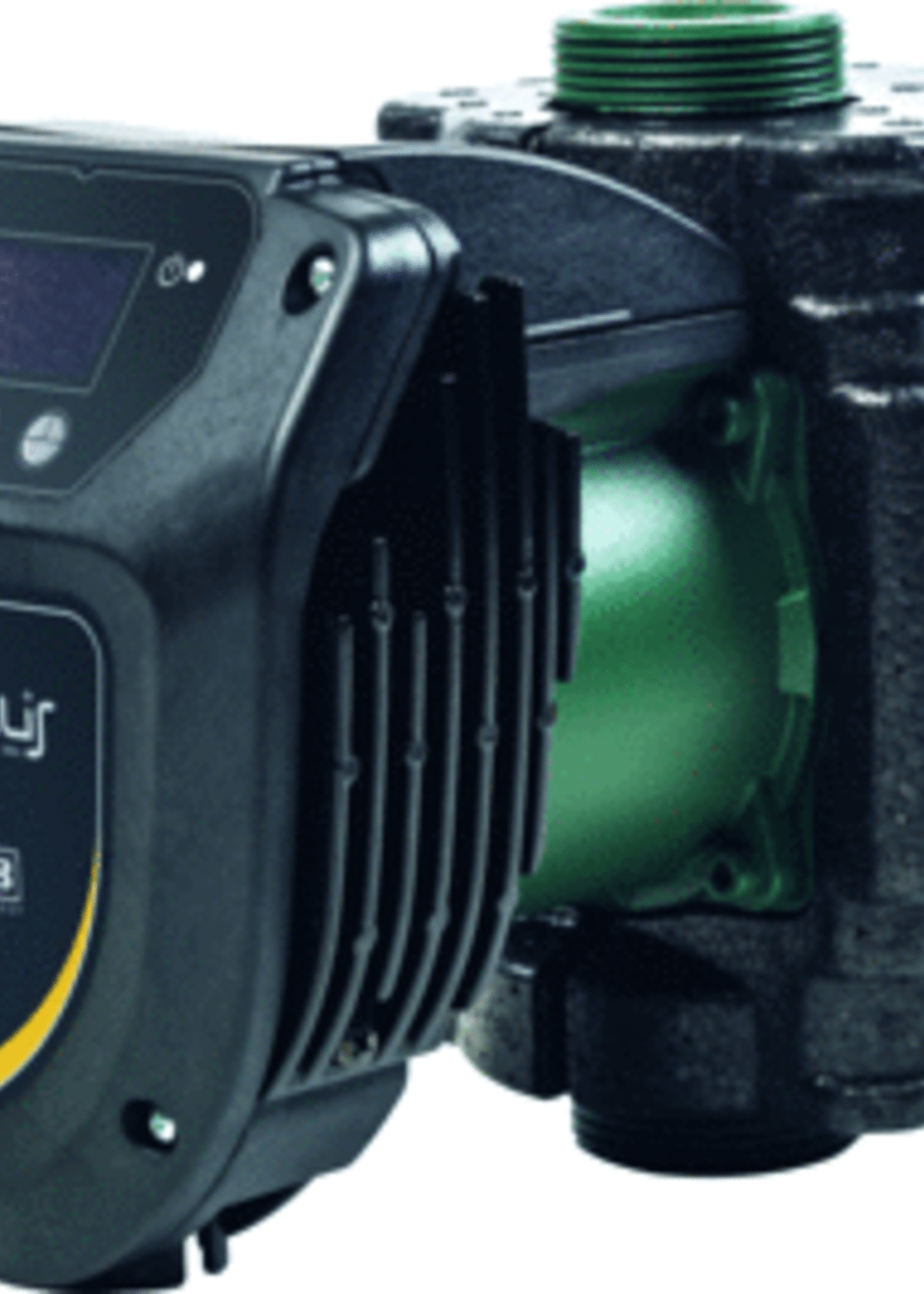

DAB Evoplus Small Circulation Pump – Media-Cooled | 220–240V | 1½" BSP | EEI 0.23 | Item No. 60150940

The DAB Evoplus Small circulation pump is a compact, high-efficiency solution for HVAC, cooling and heating systems. This media-cooled circulation pump is designed for applications requiring silent operation, long life and full integration into modern building automation systems. The pump features a durable cast iron housing (EN-GJL-250 / GG 25) and is built as a single-pump configuration, making it ideal for small to medium-sized mechanical rooms.

With a maximum flow rate of 7.2 m³/h, a BEP flow of 4.82 m³/h, and a maximum head of 8.2 meters, the Evoplus Small delivers consistent and reliable hydraulic performance. The pressure at the best efficiency point (BEP) is 54 kPa, ensuring sufficient pressure buildup in most circuits. Thanks to its integrated stepless speed control and a remarkably low Energy Efficiency Index (EEI) of 0.23, this pump meets the highest energy-saving standards.

The pump is equipped with metric 1½" BSP male threaded connections on both the suction and discharge side and has an installation length of 180 mm. The maximum working pressure is 16 bar, and the connection flanges comply with PN 16 specifications and a round flange design. It operates with media temperatures from 0 to 30 °C and is suitable for ambient temperatures up to 40 °C.

Electrically, the pump runs on single-phase 220–240 V power at 50 Hz with a nominal current of 0.95 A. It has a general-purpose electrical connection and is rated IP44 with insulation class F according to IEC.

When it comes to communication, the DAB Evoplus Small stands out. It features built-in and ready-to-use communication interfaces, including Modbus RTU, Modbus TCP and LON / LONWorks. Signal interfaces for 0–10 V, 2–10 V, 0–20 mA, 4–20 mA, and pulse counter are included. Other protocols like BACnet, KNX, CANopen, PROFIBUS, EtherNet/IP, LIN Bus and PWM are not supported. Temperature sensors such as PT100/PTC are also not supported.

Key Specifications at a Glance

• Brand: DAB

• Series: Evoplus

• Type: Small (media-cooled)

• Supplier Item Code: 60150940

• EAN: 8059893013644

• Customs Code: 84137030

• HGS Code: 478710

• Minimum Order: 1 unit

• Housing Material: Cast Iron EN-GJL-250

• Connection Diameter: 1½" BSP (40 mm), male

• Installation Length: 180 mm

• Max Flow Rate: 7.2 m³/h

• BEP Flow Rate: 4.82 m³/h

• Max Head: 8.2 m

• Pressure at BEP: 54 kPa

• Max Working Pressure: 16 bar

• Media Temperature: 0 to 30 °C

• Ambient Temperature: up to 40 °C

• Power Supply: 220–240 V

• Phase: Single-phase

• Frequency: 50 Hz

• Nominal Current: 0.95 A

• EEI Value: 0.23

• IP Protection Class: IP44

• Insulation Class: F

• Control Type: Stepless, integrated

• Supported Protocols: Modbus RTU, Modbus TCP, LON

• Supported Interfaces: 0–10 V, 4–20 mA, pulse

• Not Supported: KNX, BACnet, CAN, PROFIBUS, EtherNet/IP, PT100, PWM
