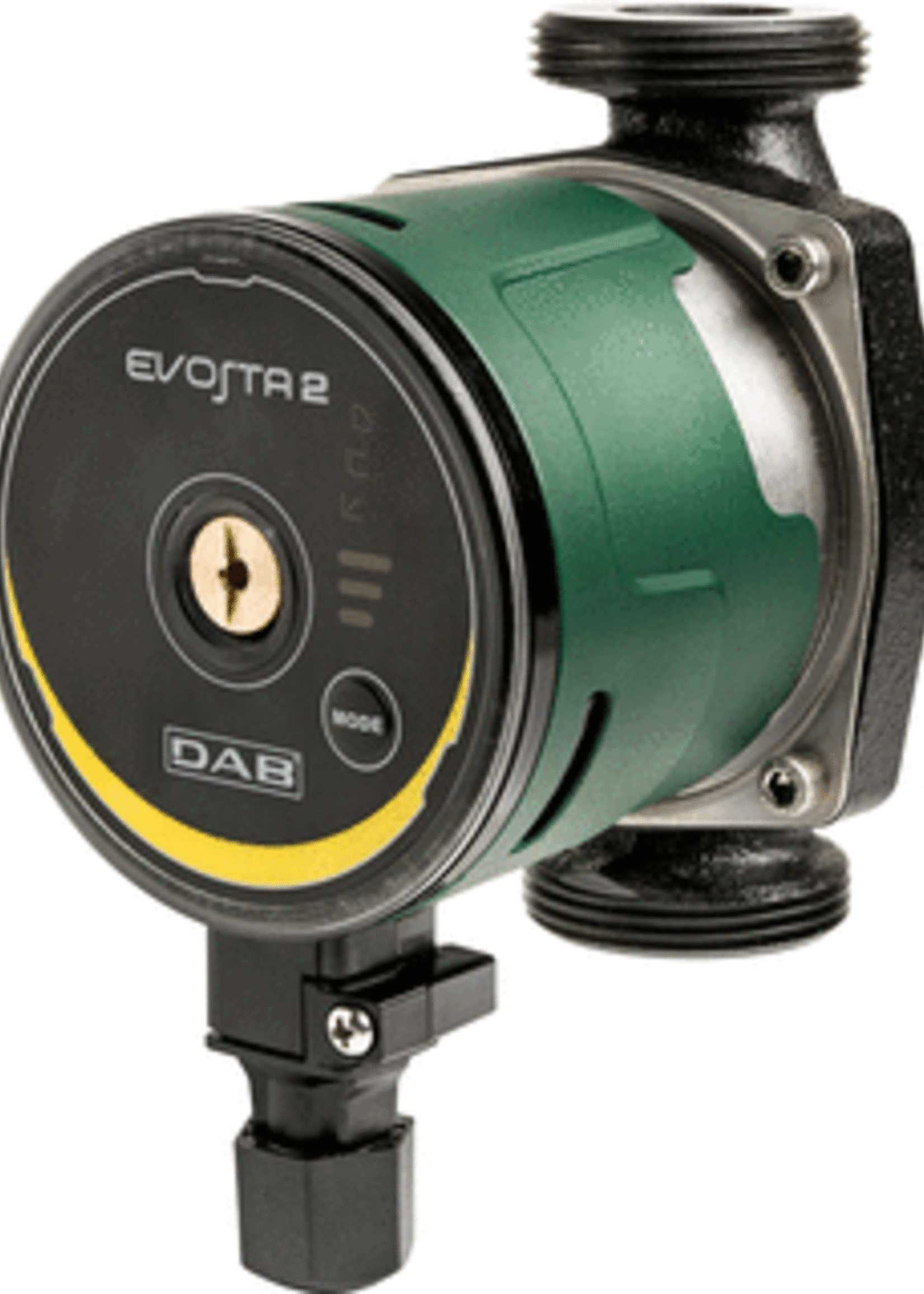

DAB CIRCULATOR PUMP 40-70/180M – EvoSta2 | 1½” | 6.9 m Head | 3.6 m³/h Flow | Media-Cooled | IPX5
The DAB EvoSta2 40-70/180M is an advanced media-cooled circulator pump, specifically designed for heating and cooling applications in residential and commercial systems. With its high energy efficiency (EEI 0.18), stepless integrated speed control, and a compact installation length of 180 mm, this pump is ideal for modern installers who value performance, reliability, and efficiency.
Pump Housing and Connections
The pump housing is made from high-grade cast iron EN-GJL-250 (GG25), a material known for strength, durability, and vibration damping. The pump is equipped with 1½" (40 mm) metric male thread connections on both the inlet and discharge sides, in accordance with ISO 228-1. The external pipe diameter on both sides is 139.7 mm, with a round flange shape and PN 10 pressure class for both suction and discharge flanges.
Hydraulic Performance
The EvoSta2 40-70/180M offers a maximum flow rate of 3.6 m³/h, with a best efficiency point (BEP) of 1.94 m³/h and a BEP pressure of 31 kPa. The maximum head is 6.9 meters, making it suitable for medium-sized circulation systems. The pump supports a continuous media temperature from -10 °C to +110 °C, and can operate in ambient temperatures up to 60 °C, ensuring flexibility across a range of demanding applications.
Motor and Electrical Specifications
The pump features an integrated stepless motor speed control, ensuring silent, precise, and energy-efficient operation. The single-phase motor runs on a nominal voltage of 230 V, 50/60 Hz, with a motor speed of 2800 rpm. The absorbed power (P1) is 0.35 kW, and the nominal current is 0.32 A. The motor is rated to insulation class F according to IEC standards, and features an IPX5 protection rating, making it fully resistant to water splashes.
The pump comes with a 1.5-meter power cable with plug, allowing for quick and easy installation.
Intelligent Control & Communication
Although this pump does not include external communication protocols like RS-232, RS-485, Modbus, BACnet or KNX, it does feature internal communication and a pulse output interface. It does not support wireless technologies such as Bluetooth, WLAN, or cellular standards (2G, 3G, 4G, 5G).
No volt-free contacts or external signal interfaces such as 0–10 V, 4–20 mA or PT100/PTC are included. However, with its advanced internal control and low energy index (EEI 0.18), this pump is one of the most efficient circulators in its class.
Applications
Key Features at a Glance:
-
Type: Media-cooled circulator pump (EvoSta2)
-
Pump housing: Cast iron EN-GJL-250 (GG25)
-
Connections: 1½" BSPT male thread (ISO 228-1)
-
Flow rate: Max. 3.6 m³/h | BEP 1.94 m³/h
-
Head: Max. 6.9 m
-
Media temperature: -10 °C to +110 °C
-
Voltage: 230 V | 1~ | 50/60 Hz
-
Energy Efficiency Index (EEI): 0.18
-
Speed control: Integrated, stepless
-
Protection class: IPX5
-
Installation length: 180 mm
With the DAB EvoSta2 40-70/180M, you choose a compact, powerful, and highly efficient circulator pump that meets the demands of modern heating and cooling systems. Designed for performance, built for reliability – this is DAB quality at its best.
