This product falls under the European F-gas regulation and commissioning may only be carried out by an F-gas certified company.

Are you not yet in possession of an F-gases certificate? Then click here for the start of your training with which you can install both single and multi-split systems and also other heat pumps.

Curious about the possibilities? Then use our AirConfigurator to quickly put together an entire system from 1 to 5 rooms.

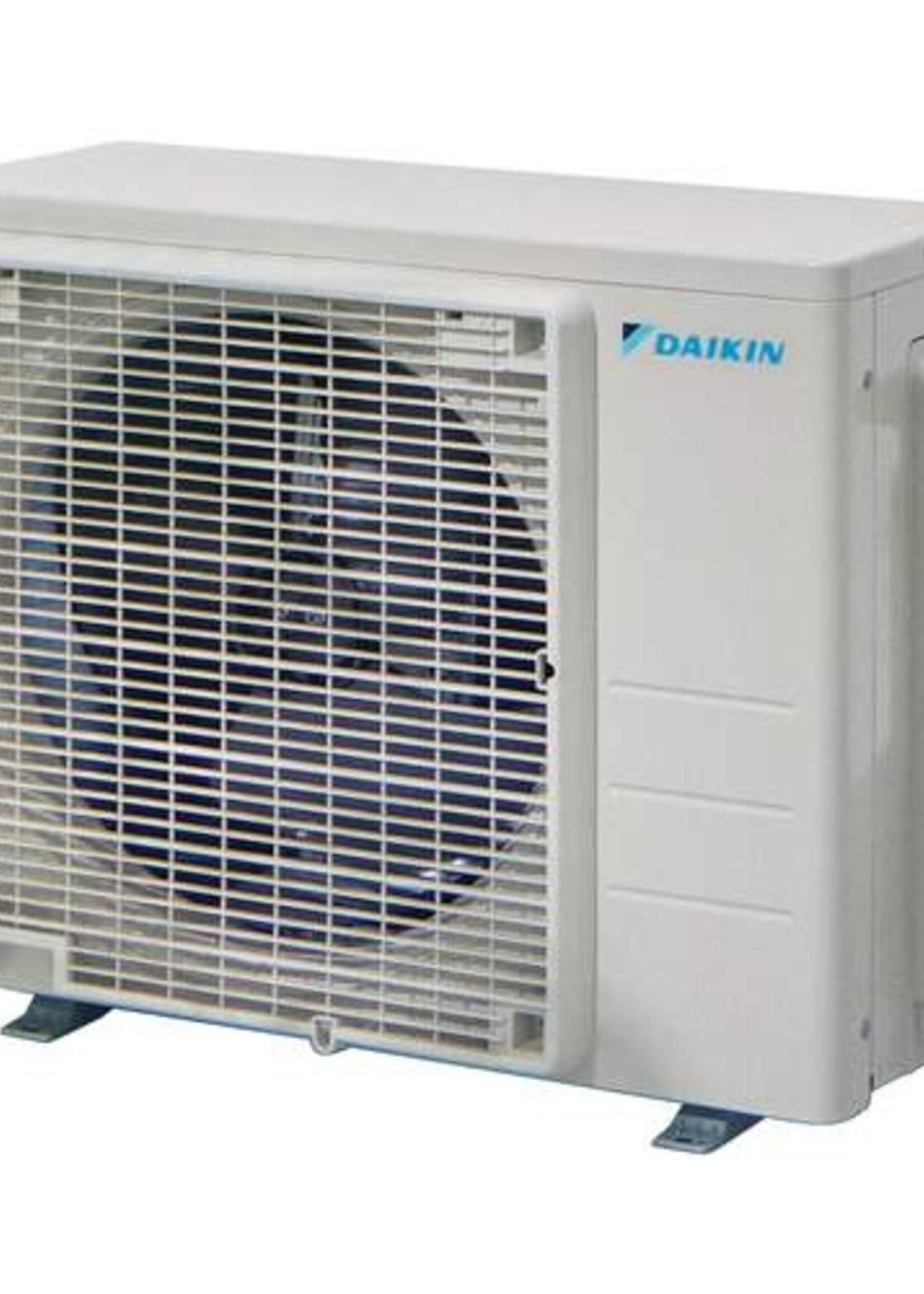

Outdoor unit specifications

• Unit dimensions HxWxD: 550x658x275 mm
• Unit weight: 28 kg
• Sound power level Cooling: 62 dB(A)
• Sound power level Heating: 62 dB(A)
• Sound pressure level Cooling High: 48 dB(A)
• Sound pressure level Heating High: 48 dB(A)
• Operation range Cooling Min.~Max.: -10~46 °CDB
• Operating range Heating Min.~Max.: -15~18 °CWB
• Refrigerant Type/Content kg/Content TCO eq/GWP R-32/0.70/0.48/675: R-32/0.55/0.37/675
• Refrigeration pipe sizes Liquid: 1/4" inch
• Refrigeration pipe sizes Gas: 3/8" inch
• Refrigeration pipe sizes Pipe length Max.: 15 m
• Refrigeration pipe sizes Pipe length Pre-filled up to: 10 m
• Refrigeration pipe sizes Additional filling (manual): 0.020 (for pipe lengths over 10 m) kg/m
• Refrigeration pipe dimensions Height difference Max.: 12 m
• Voltage shape Phase/Frequency/Voltage: 1~/50/220-240 Hz/V
