This product falls under the European F-gas regulation and commissioning may only be carried out by an F-gas certified company.

Are you not yet in possession of an F-gases certificate? Then click here for the start of your training with which you can install both single and multi-split systems and also other heat pumps.

Curious about the possibilities? Then use our AirConfigurator to quickly put together an entire system from 1 to 5 rooms.

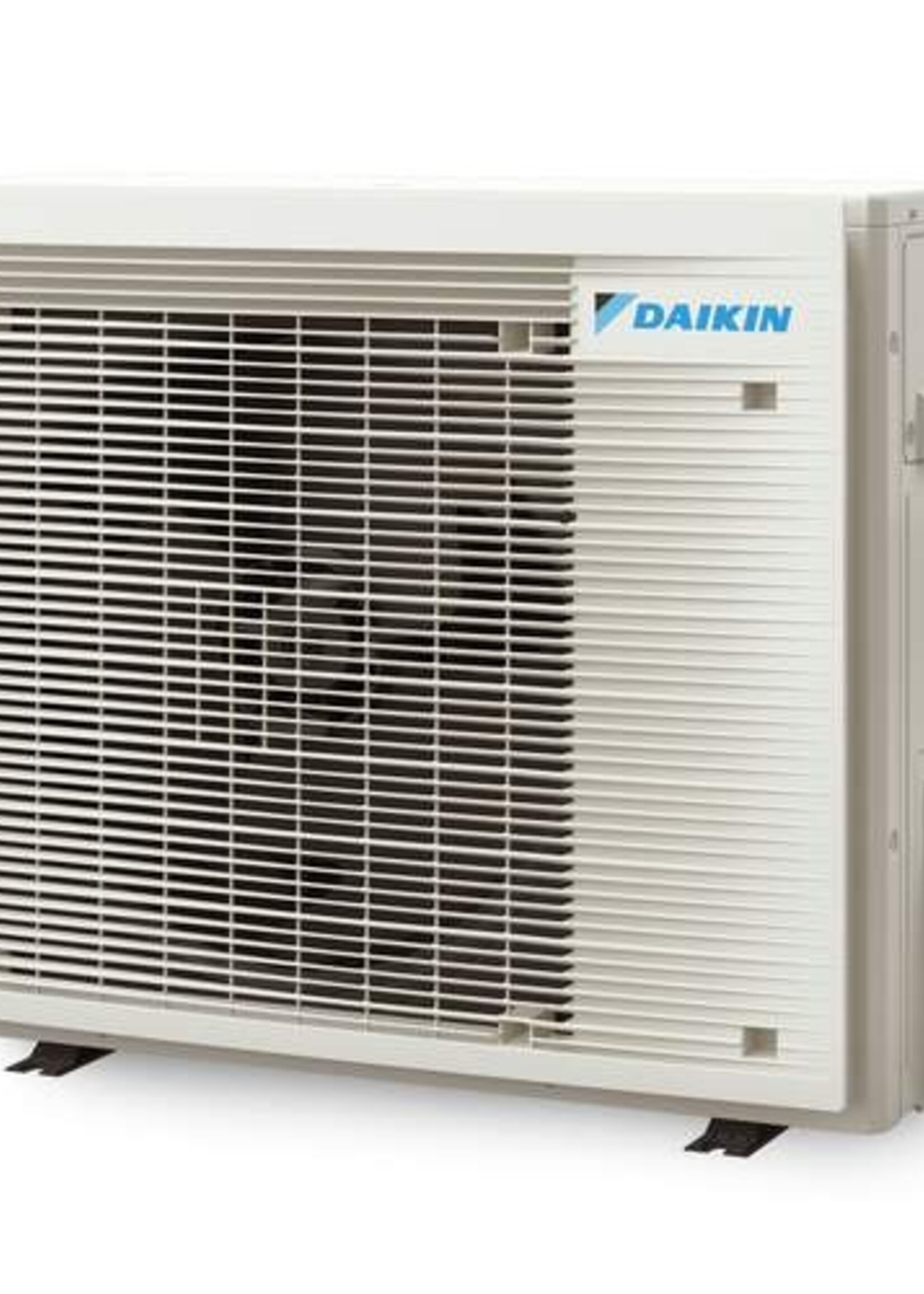

Outdoor unit specifications

• Unit dimensions HxWxD: 734x954x408 mm
• Unit weight: 49 kg
• Sound power level Cooling: 62/62 dB(A)
• Sound pressure level Cooling Nom.: 48/49 dB(A)
• Operating range Cooling Min.~Max.: -10~50 °CDB
• Operating range Heating Min.~Max.: -20~24 °CWB
• Refrigerant Type/Content kg/Content TCO eq/GWP R-32/675/0.76/0.52
• Refrigeration pipe sizes Liquid: 1/4" inch
• Refrigeration pipe sizes Gas: 1/2" inch
• Refrigeration pipe sizes Pipe length Max.: 30 m
• Refrigeration pipe dimensions Height difference Max.: 20 m
• Voltage shape Phase/Frequency/Voltage: 1~/50/220-240 Hz/V
