This product falls under the European F-gas regulation and commissioning may only be carried out by an F-gas certified company.

Are you not yet in possession of an F-gas certificate? Then click here to start your training with which you can install both single and multi-split systems as well as other heat pumps.

Curious about the possibilities? Then use our AirConfigurator to quickly put together an entire system from 1 to 5 rooms.

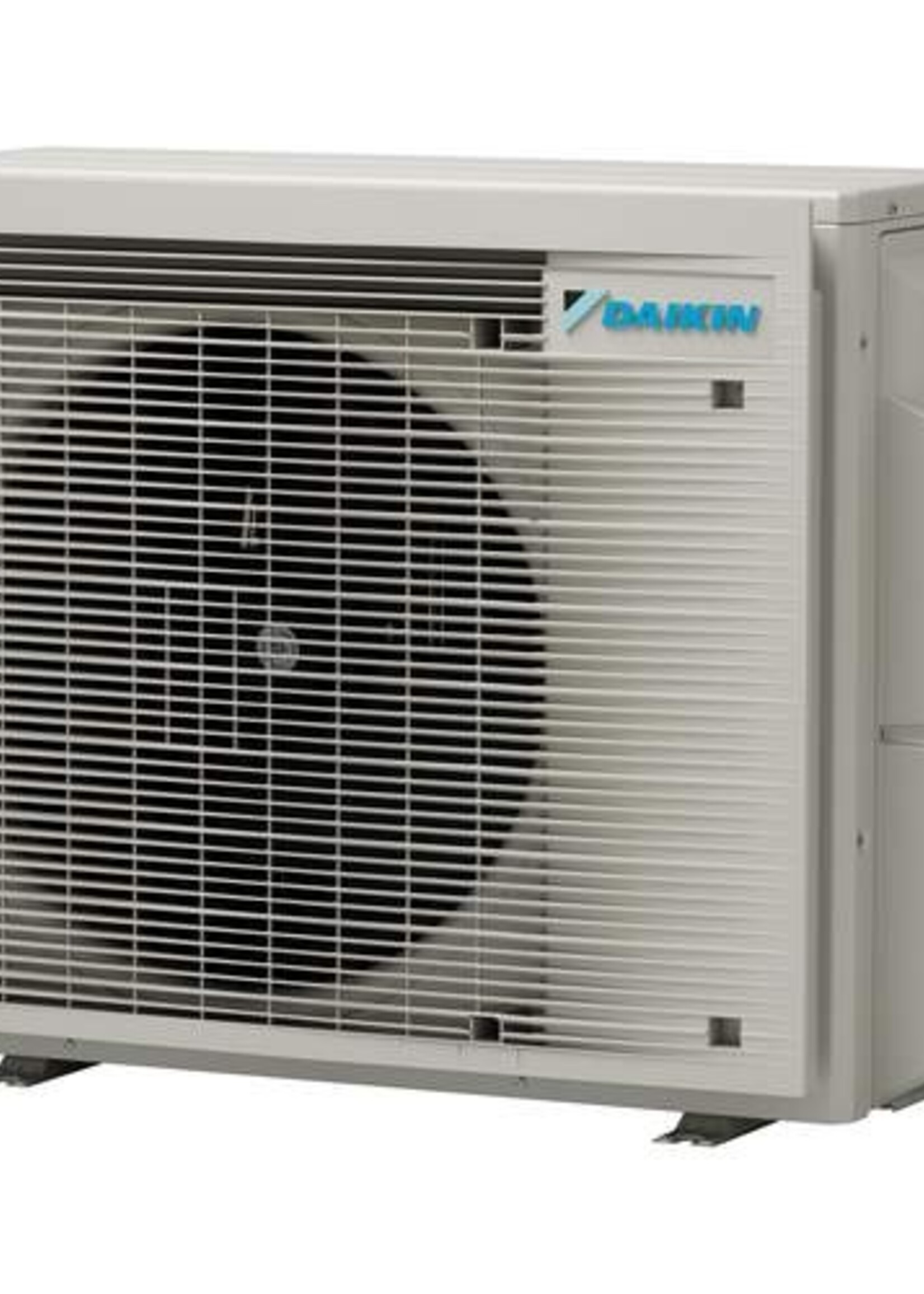

Multi-split outdoor unit MXM

• Completely new design for the entire range
• Seasonal efficiency up to A+++ at cooling and A++ for heating.
• A minimum of 2 and a maximum of 5 indoor units can be connected to 1 Multi-split outdoor unit; all indoor units remain individually controllable and do not have to be installed at the same time or in the same room.
• Different types of indoor units can be connected, e.g. wall, cassette and duct models.
• Choose an R-32 product to reduce the environmental impact by 68% (compared to R-410A systems) and immediately reduce energy consumption due to the high energy efficiency.
• The outdoor units are equipped with a swing compressor, which has a guarantees low-noise and energy-efficient operation.

Specifications Outdoor unit Wasco art. no.: 7832410

• Maximum number of indoor units: 2
• Dimensions Unit HxWxD: 552x852x350 mm
• Weight Unit: 36 kg
• SCOP outdoor unit: 5.07
• Advantage Energy Investment Deduction: Yes
• Sound power level Cooling : 60 dB(A)
• Sound pressure level Cooling Nom.: -/46 dB(A)
• Sound pressure level Heating Nom.: -/48 dB(A)
• Operating range Cooling : -10~46 °CDB
• Operating range Heating : -15~18 °CWB
• Refrigerant Type/GWP R-32/675
• Refrigerant charge Content TCO2eq: 0.88/0.60
• Pre-charged up to: 20m
• Refrigeration pipe dimensions pipe length indoor part: Max. 20m
• Refrigeration pipe dimensions pipe length combination: Max. 30m
• Height difference Outdoor unit-Indoor unit: 15m
• Height difference Indoor unit-Outdoor unit: 7.5m
• Voltage shape Phase/Frequency/Voltage: 1~/50/220-240 Hz/V
• Fuse rating: 16A
• Liquid pipe: 2x 1/4"
• Gas pipe: 2x 3/8"
