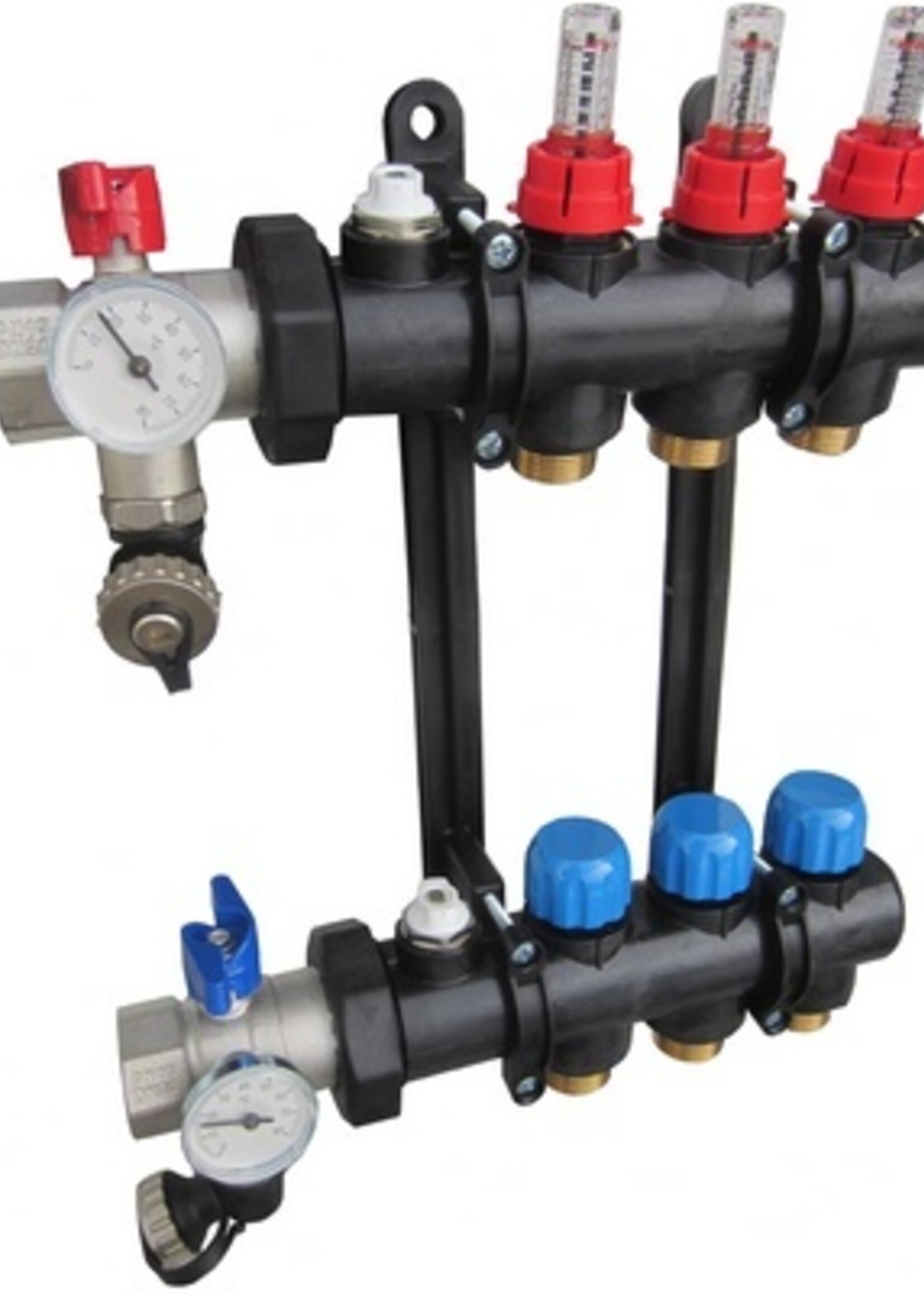

DISTRIBUTOR FLOOR HEATING 9 CIRCUITS

Underfloor heating distributor made of composite material for heating and cooling.
Connection distributor 4/4" with shut-off valves
Connection circuits 3/4" euro-cone.
Taco flow meters on the departure, adjustable between 0 and 5 liters/min.
Thermostatizable shut-off valves on the return line
Equipped with thermometers, air vents and filling valves
Maximum percentage of glycol 50%
Standard operating pressure 1.5 - 2.5 bar
Maximum operating pressure 6 bar
Temperature range: 4 to 70°C
Distance between connections: 45 mm
ollecteurs pour le chuffage par the sol and composition for chauffeé and refroidissement,
Raccordement des colleteurs 4/4" avec vanne.à bille
Raccordement des circuits 3/4" euro-cone
Sur le départ, débitmètre réglable TACO, Reglage between 0 and 5 litres/min.
Sur le rétour, vanne motorisable.
Equipée de thermometers, purgeurs et vanne de remplissage,
Maximum pourcentage glycol: 50%
Pression de function standard: 1.5 - 2.5 bar
Pression de function max.: 6 bar
Plage de température: 4 to 70°C
Distance between the connections: 45 mm
Fußbodenheizungsverteiler aus Kunststoff zum Heizen und Kühlen
Anschluss Verteiler 4/4 "mit Absperrventile
Anschlussskreise 3/4 "Eurokonus
Taco-Durchflussmesser, einstelbar zwischen 0 und 5 l / min.
Möglichkeit zum construction of electric motors with the rücklauf M30
Ausgestattet mit Thermometern, Entlufter und Füllhähne
Maximaler Glykolanteil 50%
Standard operating pressure 1.5 - 2.5 bar
Maximum operating pressure 6 bar
Temperature range: 4 to 70 ° C
Abstand zwischen den schlüssen: 45 mm
Underfloor heating distributor made of composite material for heating and cooling.
Connection distributor 4/4" with shut-off taps
Connection circuits 3/4" euro-cone.
Taco flow meters on the room, adjustable between 0 and 5 litres/min.
Thermostatizable shut-off valves on the return line
Equipped with thermometers, air vents and filling valves
Maximum glycol percentage 50%
Standard operating pressure 1.5 - 2.5 bar
Maximum operating pressure 6 bar
Temperature range: 4 to 70°C
Distance between connections: 45 mm
