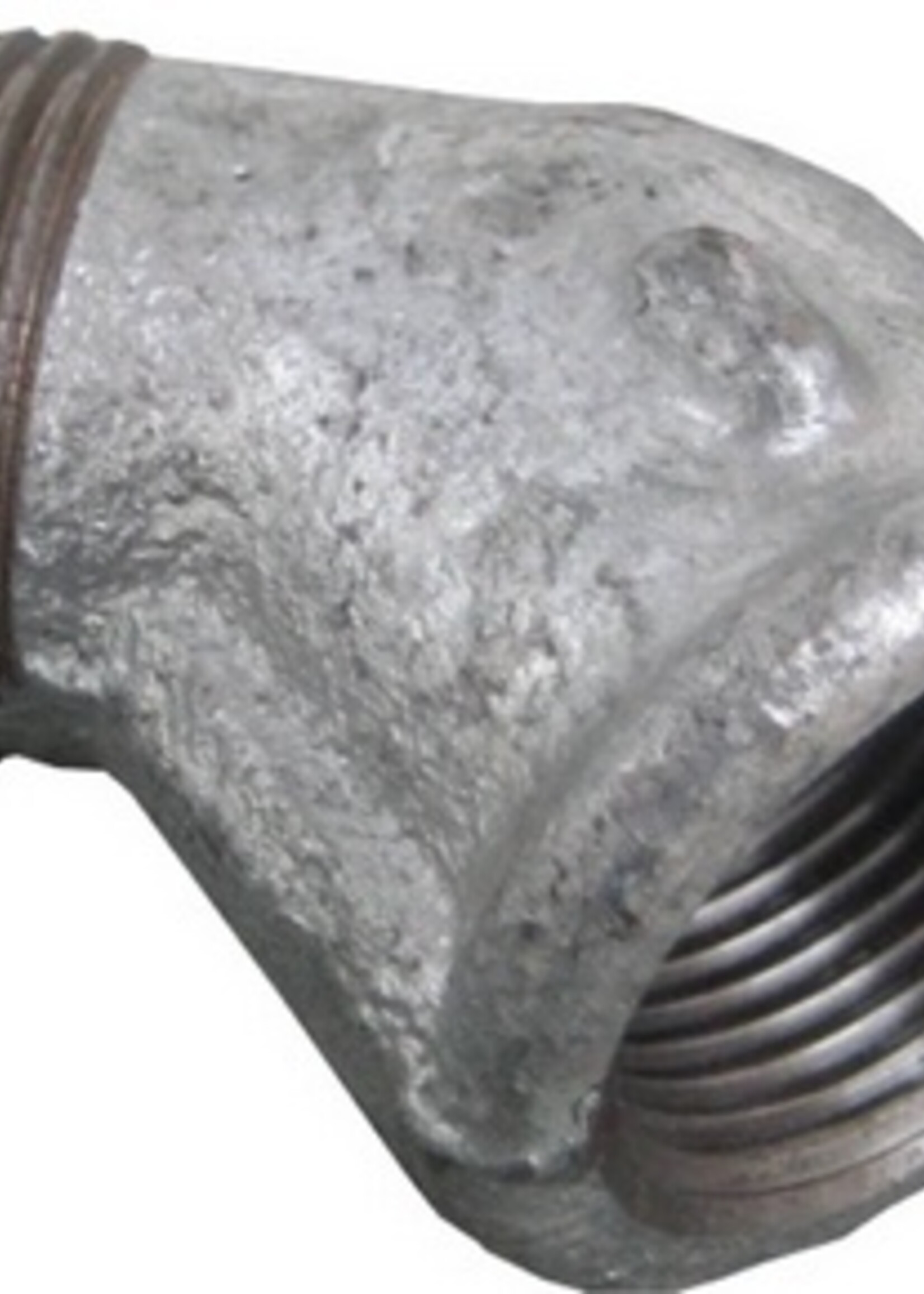

  • GALVA FITTING KNEE 45° NO. 121 1 1/4"MF

GALVA FITTING KNEE 45° NO. 121 1 1/4"MF

Article number: 100693
€9,26
Incl. tax

The rating of this product is 0 out of 5

 (0)
In stock (Delivery timeframe:1-2 days delivery - Minimum order value €150 for fittings)
Add to wish list Add to wish list
swap-horizontal Add to comparison
  • Malleable cast iron EN-GJMB-350-10
  • According to DIN EN 10242 symbol A
  • Average minimum zinc layer thickness is 70 microns
  • Maximum operating range, -20°C and 25 bar
  • Permissible operating pressure between -20°C and 120°C is 25 bar
  • Permissible operating pressure between 120°C and 300°C is 20 bar
  • Male thread according to ISO 7-1 (DIN 2999) conical (R)
  • Internal thread according to ISO 7-1 (DIN 2999) cylindrical (Rp)
  • Internal thread according to ISO 7-1 (DIN 2999) conical (R)
  • Internal thread according to ISO 7-1 (DIN 2999) cylindrical (Rp)
    • |
  • Fonte maleable galvanized EN-GJMB-350-10
  • Suitable for standard DIN EN 10242 A
  • Galanised for standard DIN EN 10242
  • Revêtement de zinc minimum moyenne 70 micron
  • Température de fonctionnement minimum -20°C et 25 bar
  • Température de fonctionnement maximum 300°C et 20 bar
  • Fillet exterior suivante ISO 7-1 (DIN 2999) conical (R)
  • Fillet interior suivante ISO 7-1 (DIN 2999) cilindrique (R)
    • |
  • Gusseiserner Gewindefitting .EN-GJMB-350-10 / DIN EN 10242 Symbol A
  • galvanized gemäß DIN EN 10242 - ø minimum zinc flash = 70 micron
  • zulässiger temperature/pressure range -20° to 120°C = 25 bar / 120° to 300°C = 20 bar
  • Außengewinde gemäß ISO 7-1 (DIN 2999) conical (R)
  • Innengewinde gemäß ISO 7-1 (DIN 2999) cylindrical (Rp)
  • Malleable cast iron EN-GJMB-350-10
  • According to DIN EN 10242 symbol A
  • Average minimum zinc layer thickness is 70 micron
  • Maximum operating range, -20°C and 25 bar
  • Permissible operating pressure between -20°C and 120°C is 25 bar
  • Permissible operating pressure between 120°C and 300°C is 20 bar
  • External thread according to ISO 7-1 (DIN 2999) conical (R)
  • Internal thread according to ISO 7-1 (DIN 2999) cylindrical (Rp)
  • External thread according to ISO 7-1 (DIN 2999) conical (R)
  • Internal thread according to ISO 7-1 (DIN 2999) cylindrical (Rp)
