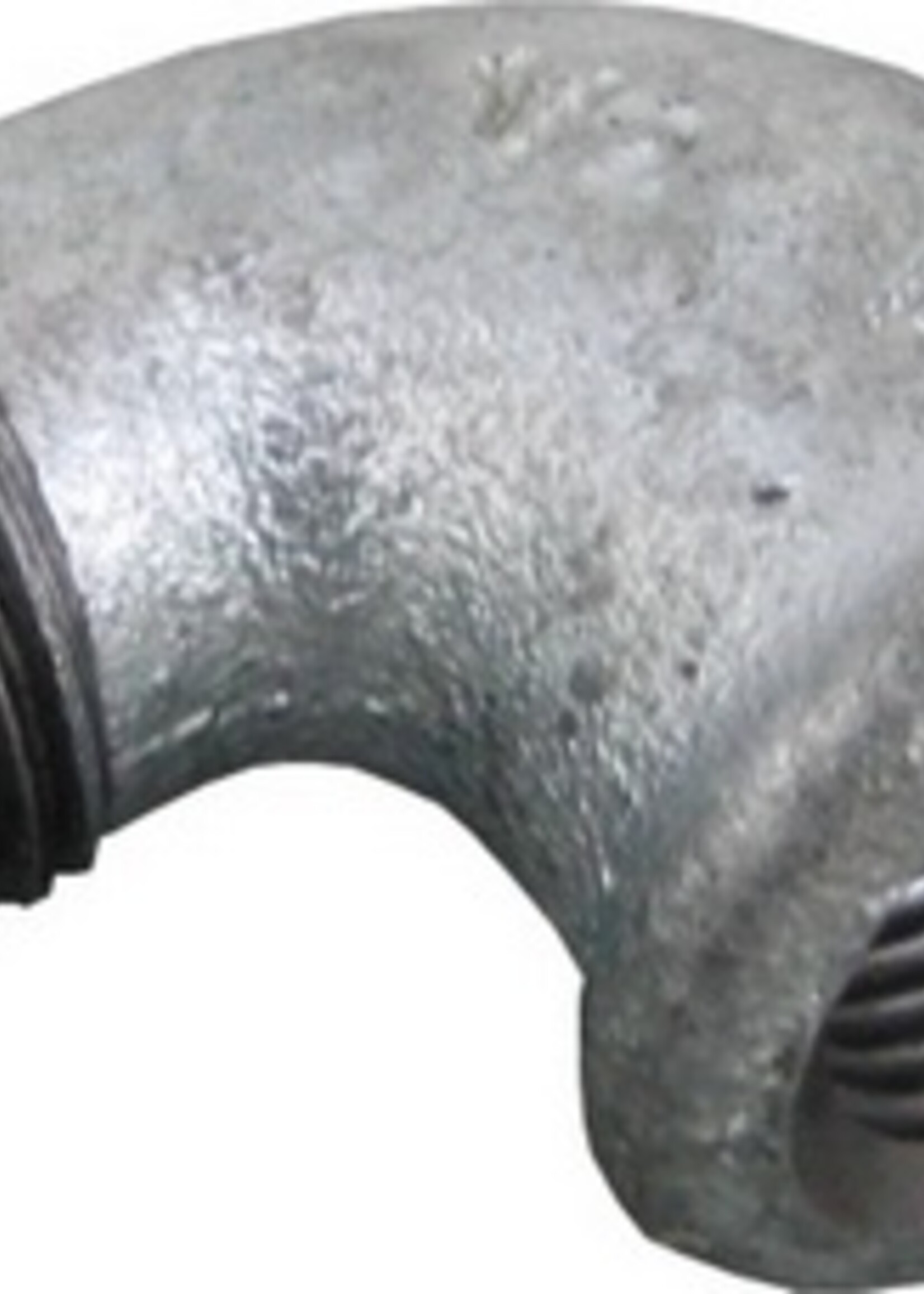

  • GALVA FITTING KNEE 90° NO. 92 1" x 3/4"MF

GALVA FITTING KNEE 90° NO. 92 1" x 3/4"MF

Article number: 100656
€5,05
Incl. tax

The rating of this product is 0 out of 5

 (0)
In stock (Delivery timeframe:1-2 days delivery - Minimum order value €150 for fittings)
Add to wish list Add to wish list
swap-horizontal Add to comparison
  • Malleable cast iron EN-GJMB-350-10
  • According to DIN EN 10242 symbol A
  • Average minimum zinc layer thickness is 70 microns
  • Maximum operating range, -20°C and 25 bar
  • Permissible operating pressure between -20°C and 120°C is 25 bar
  • Permissible operating pressure between 120°C and 300°C is 20 bar
  • Male thread according to ISO 7-1 (DIN 2999) conical (R)
  • Female thread according to ISO 7-1 (DIN 2999) cylindrical (Rp)
    • |
  • Fonte maleable galvanized EN-GJMB-350-10
  • Suivant le norme DIN EN 10242 A
  • Galanised according to DIN EN 10242 standards
  • Minimum zinc rating 70 micron
  • Minimum operating temperature -20°C and 25 bar
  • Maximum operating temperature 300°C et 20 bar
  • Fillet exterior suivante ISO 7-1 (DIN 2999) conical (R)
  • Fillet interior suivante ISO 7-1 (DIN 2999) cilindrique (R)
    • |
  • Gusseiserner Gewindefitting .EN-GJMB-350-10 / DIN EN 10242 Symbol A
  • galvanized gemäß DIN EN 10242 - ø minimum zinc flash thickness = 70 Mikron
  • zulässiger Temperatur-/Druckbeich -20° bis 120°C = 25 bar / 120° bis 300°C = 20 bar
  • Außengewinde gemäß ISO 7-1 (DIN 2999) conical (R)
  • Innengewinde gemäß ISO 7-1 (DIN 2999) cylindrical (Rp)
  • Malleable cast iron EN-GJMB-350-10
  • According to DIN EN 10242 symbol A
  • Average minimum zinc layer thickness is 70 microns
  • Maximum application range, -20°C and 25 bar
  • Permissible operating pressure between -20°C and 120°C is 25 bar
  • Permissible operating pressure between 120°C and 300°C is 20 bar
  • Male thread according to ISO 7-1 (DIN 2999) conical (R)
  • Internal thread according to ISO 7-1 (DIN 2999) cylindrical (Rp)
