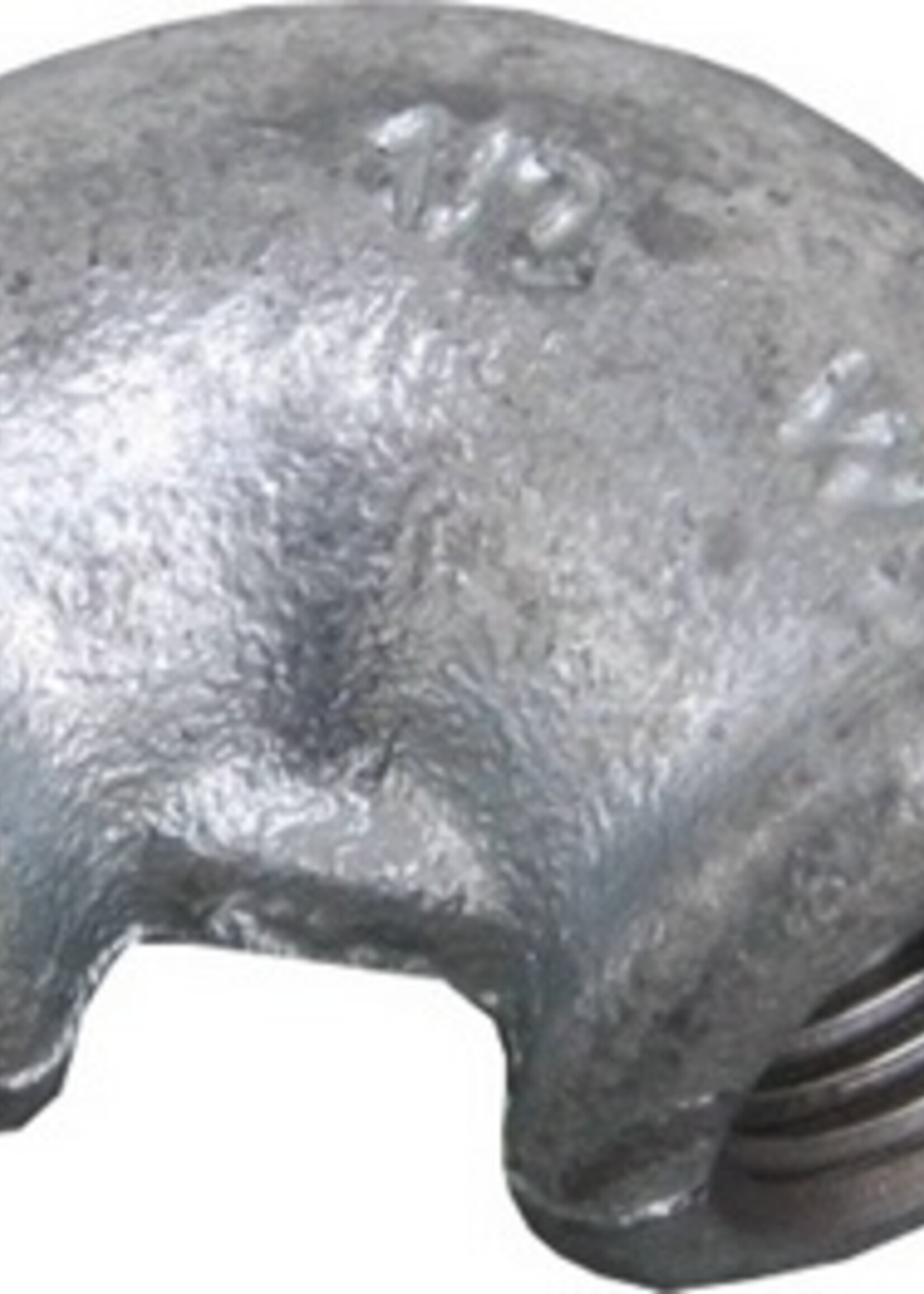

GALVA FITTING KNEE 90° NR 90 1 1/4" x 1"FF

Malleable cast iron EN-GJMB-350-10
According to DIN EN 10242 symbol A
Average minimum zinc layer thickness is 70 microns
Maximum operating range, -20°C and 25 bar
Permissible operating pressure between -20°C and 120°C is 25 bar
Permissible operating pressure between 120°C and 300°C is 20 bar
Male thread according to ISO 7-1 (DIN 2999) conical (R)
Internal thread according to ISO 7-1 (DIN 2999) cylindrical (Rp)
Internal thread according to ISO 7-1 (DIN 2999) cylindrical (Rp)
Fonte maleable galva EN-GJMB-350-10
Suivant according to standard DIN EN 10242 A
Galanisé according to standard DIN EN 10242
Revêtement de zinc minimum average 70 micron
Température de Minimum function -20°C at 25 bar
Maximum function temperature 300°C at 20 bar
Exterior fillet ISO 7-1 (DIN 2999) conical (R)
Interior fillet ISO 7-1 (DIN 2999) cilindrique (R)
Gusseiserner Gewindefitting .EN-GJMB-350-10 / DIN EN 10242 Symbol A.
galvanized gemäß DIN EN 10242 - ø minimum zinc bolt thickness = 70 Mikron
Zulässiger Temperatur-/Druckbeich -20° bis 120°C = 25 bar / 120° bis 300°C = 20 bar
Außengewinde gemäß ISO 7-1 (DIN 2999) conical (R)
Innengewinde gemäß ISO 7-1 (DIN 2999) cylindrical (Rp)
Malleable cast iron EN-GJMB-350-10
According to DIN EN 10242 symbol A
Average minimum zinc layer thickness is 70 micron
Maximum operating range, -20°C and 25 bar
Permissible operating pressure between -20°C and 120°C is 25 bar
Permissible operating pressure between 120°C and 300°C is 20 bar
External thread according to ISO 7-1 (DIN 2999) conical (R)
Internal thread according to ISO 7-1 (DIN 2999) cylindrical (Rp)
Internal thread according to ISO 7-1 (DIN 2999) cylindrical (Rp)
