Note: Excluding anti-bacterial front panel PB-620KB(H) white (7818556) or black (7818912) and IR remote control YR-HQS01 (7815167)

This product falls under the European F-gas regulation and commissioning may only be carried out by an F-gas certified company.

Are you not yet in possession of an F-gases certificate? Then click here to start your training with which you can install both single and multi-split systems as well as other heat pumps.

Are you already certified and experienced? Then scroll further down for more information and materials to get the job done or make your own choice from our complete range.

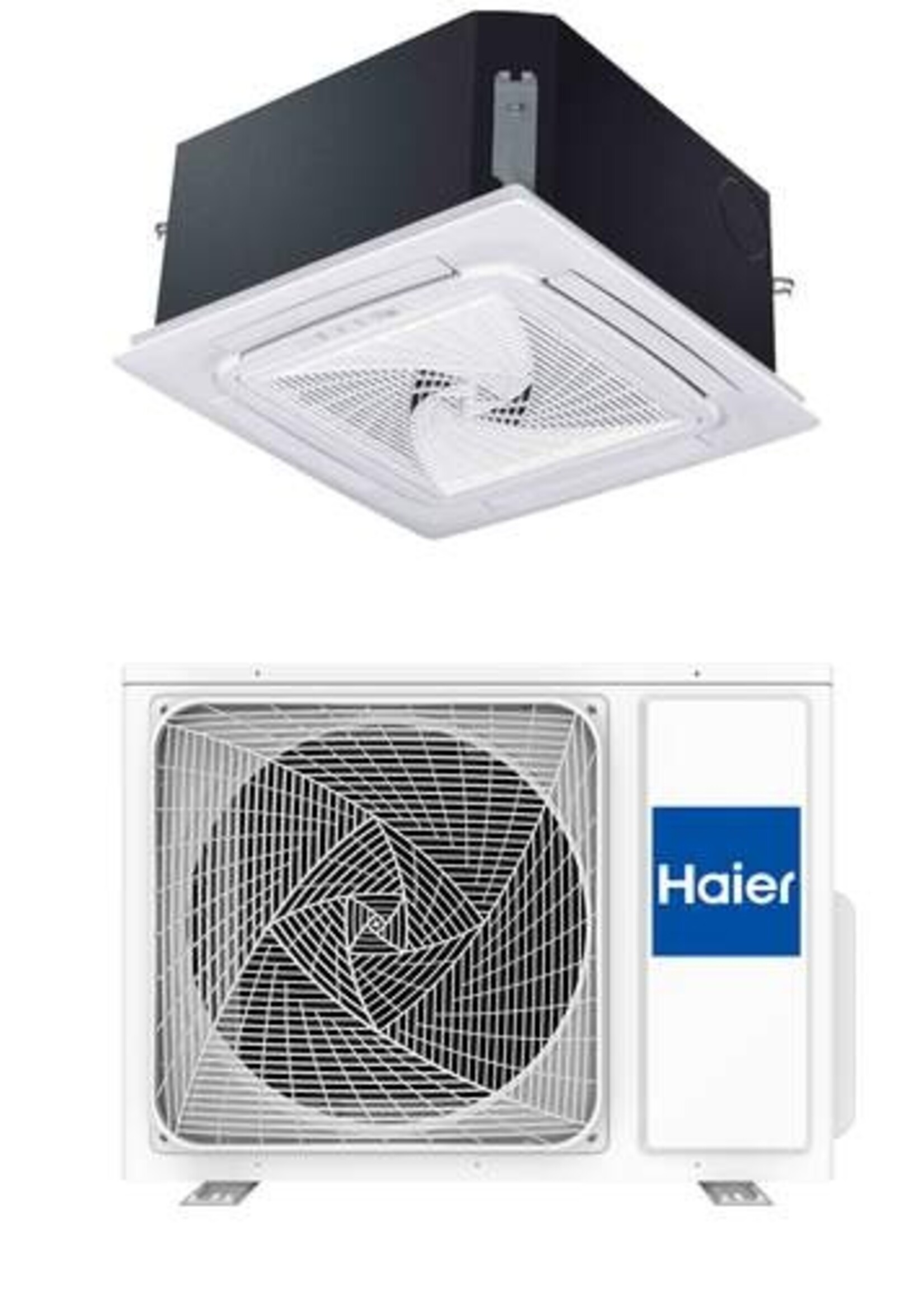

Functions of the Compact Cassette

Quiet

Low noise level thanks to the optimized design of the fan, air ducts and motor.

Blowout rulers individually adjustable

When the unit cannot be placed exactly in the middle of the room.

Wifi standard with hOn Smart Home App

Download the Haier App on anApple Android device and connect the equipment to your device to control your system, wherever you are and at any time.

Possibility of connecting outside air

This connection is optional for the supply of fresh outside air

On/Off Card

Potential free contact for, for example, a door or window contact.

Super match

Many combination options of indoor and outdoor units.

Capacity data

• Cooling capacity nom. (min. - max.): 3.5 (0.9 - 4.5) kW
• Heating capacity nom. (min. - max.): 4.0 (1.0 - 4.8) kW
• Power input - cooling nom. (min. - max.): 1.06 (0.28 - 1.8) kW
• Power input - heating nom. (min. - max.): 0.99 (0.28 - 1.8) kW
• EER return: 3.31 w/w
• Yield COP: 3.71 w/w
• Pdesign - cooling 35 °C: 3.5 kW
• Pdesign - heating (-10 °C): 3 kW
• Seasonal efficiency SEER: 6.1 (A++)
• Seasonal efficiency SCOP: 3.8 (A)
• Annual energy consumption - cooling: 222 kWh/y
• Annual energy consumption - heating: 1427 kWh/y

Indoor unit

• Power supply: 1/220-240/50 Ph/V/Hz
• Air flow max.: 620/520/450 m3/h
• Dehumidification: 1.0 l/h
• Sound power level - cooling: 52 dB
• Sound power level - heating: 52 dB
• Sound pressure level - cooling: 36/33/30/27 dB(A)
• Sound pressure level - heating: 36/33/30/27 dB(A)
• Net dimensions W x D x H: 570x570x260 mm
• Net weight: 18.5 kg
• Panel (can be ordered separately) Model: PB-620KB (7815242)
• Net dimensions W x D x H: 620x620x60 mm
• Net weight: 2.8 kg

Outdoor unit

• Power supply: 1/220-240/50 Ph/V/Hz
• Sound power level Hi: 61 dB
• Sound pressure level Hi: 48 dB(A)
• Maximum power consumption: 7.2 A
• Net dimensions W x D x H: 800x275x553 mm
• Net weight: 31.5 kg
• Compressor type: Single rotary inverter
• Compressor brand: Mitsubishi

Technical data

• Refrigerant: R32
• Liquid line diameter Ø: 6.35 (1/4”) mm (inch)
• Gas side diameter Ø: 9.52 (3/8”) mm (inch)
• Pipe length without top-up: 5 m
• Maximum pipe length: 15 m
• Maximum pipe height: 10 m
• Refrigerant charge: 0.94 kg
• Refrigerant charge: 0.63 tCO ² Eq
• Topping up: 20 g/m
• Operating range - cooling min. - max.: 21 - 35 °C (indoor)/-10 - 43 °C (outdoor) °C
• Operating range - heating min. - max.: 10 - 27 °C (indoor)/-15 - 24 °C (outdoor) °C
