The Flair series air conditioner is available in 10.5 kW size. Haier Flair offers a great level of comfort thanks to the 3D airflow and the continuous movement of horizontal and vertical deflectors. It operates at a very low noise level and has a sleep mode to ensure peace and quiet when you need it most.

3D Airflow
The 3D airflow ensures better distribution of the air in the room, thanks to the synchronized movement of the horizontal and vertical deflectors.

Easy installation

A simplified installation procedure allows the installer to work more efficiently, resulting in faster installation and better customer service, especially during peak season.

On/Off card
The unique keycard management system reduces energy costs without compromising guest comfort. When entering or leaving a hotel room, the smart keycards automatically communicate with the unit to turn off the air conditioning or heating.

Sleep mode
Presets 4 separate sleep curves for people of different ages.

Capacity data

• Cooling capacity: nom. (min. - max.) 9.00 (2.50-10.00) kW
• Heating capacity: nom. (min. - max.) 9.50 (3.00-10.50) kW
• Power input - cooling: nom. (min. - max.) 3.00 (0.80 - 3.70) kW
• Power input - heating: nom. (min. - max.) 2.56 (0.80 - 4.00) kW
• Yield: EER 3.00 w/w
• Yield: COP 3.71 w/w
• Pdesign - cooling: 35 °C 9.00 kW
• Pdesign - heating: (-10 °C) 7.20 kW
• Seasonal efficiency: SEER 6.10 (A++)
• Seasonal efficiency: SCOP 4.00 (A+)
• Annual energy consumption - cooling: 516 kWh/y
• Annual energy consumption - heating: 2518 kWh/y

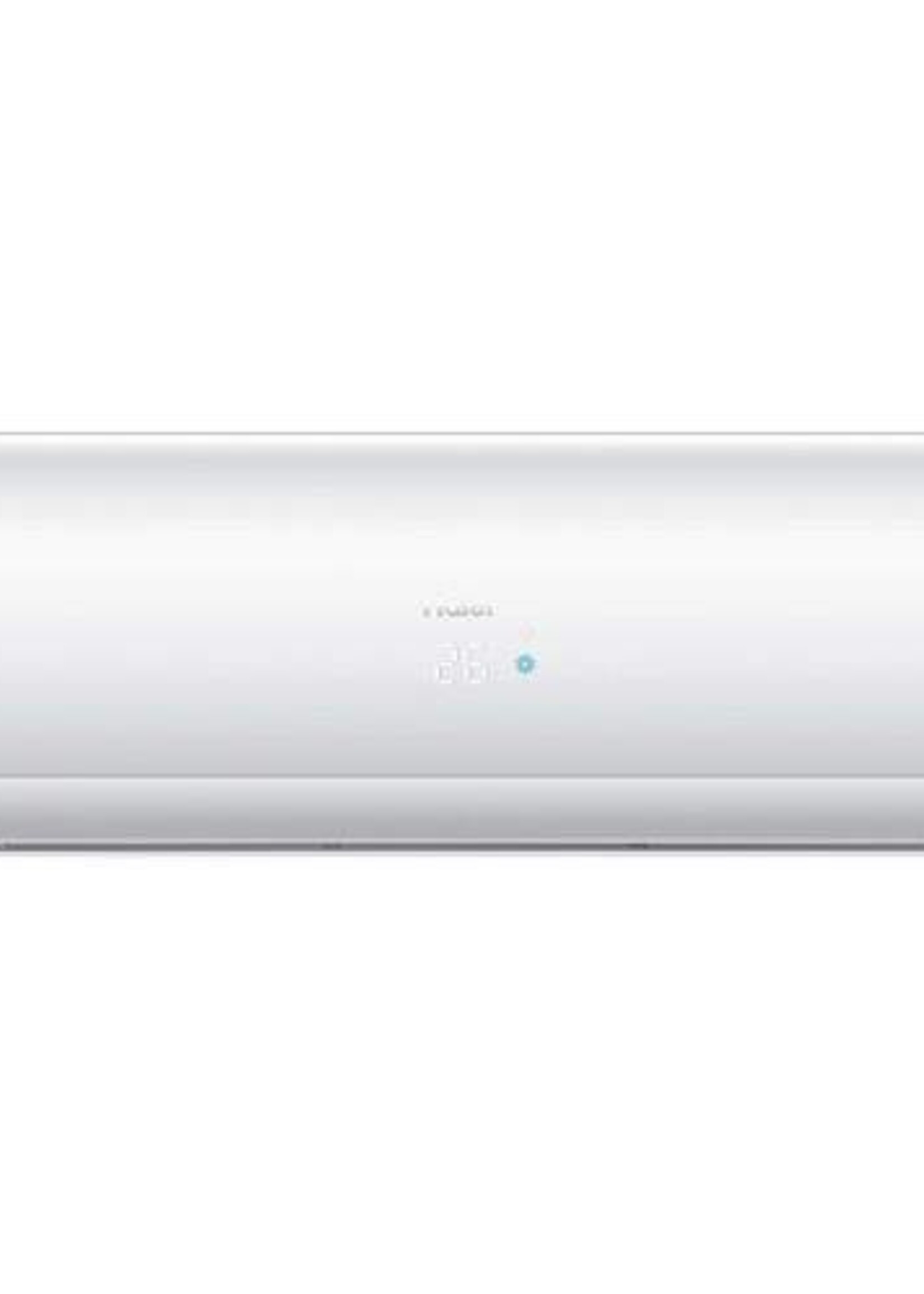

Indoor unit

• Power supply: 1/220-240/50/60 Ph/V/Hz
• Air flow rate: max. 1300 m3/h
• Sound power level: 65 dB
• Sound pressure level: 48/44/40/36 dB(A)
• Net dimensions: w x d x h 1342x275x365 mm
• Net weight: 21 kg

Technical data

• Refrigerant: R32
• Diameter liquid pipe Ø 3/8"
• Diameter gas side Ø 5/8"
• Pipe length without top-up: 7m
• Maximum pipe length: 50 m
• Maximum pipe height: 30 m
• Refrigerant charge: 1.70 kg
• Refrigerant charge TCO2eq 1.15
• Refill: 45 g/m
• Operating range - cooling: min. - max.: -20~43°C
• Operating range - heating: min. - max.: -20~24°C
