This product falls under the European F-gas regulation and commissioning may only be carried out by an F-gas certified company.

Are you not yet in possession of an F-gases certificate? Then click here to start your training with which you can install both single and multi-split systems as well as other heat pumps.

Curious about the possibilities? Then use our AirConfigurator to quickly put together an entire system from 1 to 5 rooms.

Capacity data

• Cooling capacity nom. (min. - max.): 4.0 (1.0 - 4.5) kW
• Heating capacity nom. (min. - max.): 4.4 (1.5 - 4.8) kW
• Power input - cooling nom. (min. - max.): 1.0 (0.3 - 1.65) kW
• Power input - heating nom. (min. - max.): 1.07 (0.38 - 2.25) kW
• EER return: 4.0
• Efficiency COP: 4.1
• Pdesign - cooling capacity (35°): 4.0 kW
• Pdesign - heating capacity (-10 °): 3.3 kW
• Seasonal efficiency SEER: 6.5 (A++)
• Seasonal efficiency SCOP: 4.0 (A+)
• Annual energy consumption - cooling kWh/y: 269
• Annual energy consumption - heating kWh/y: 1645

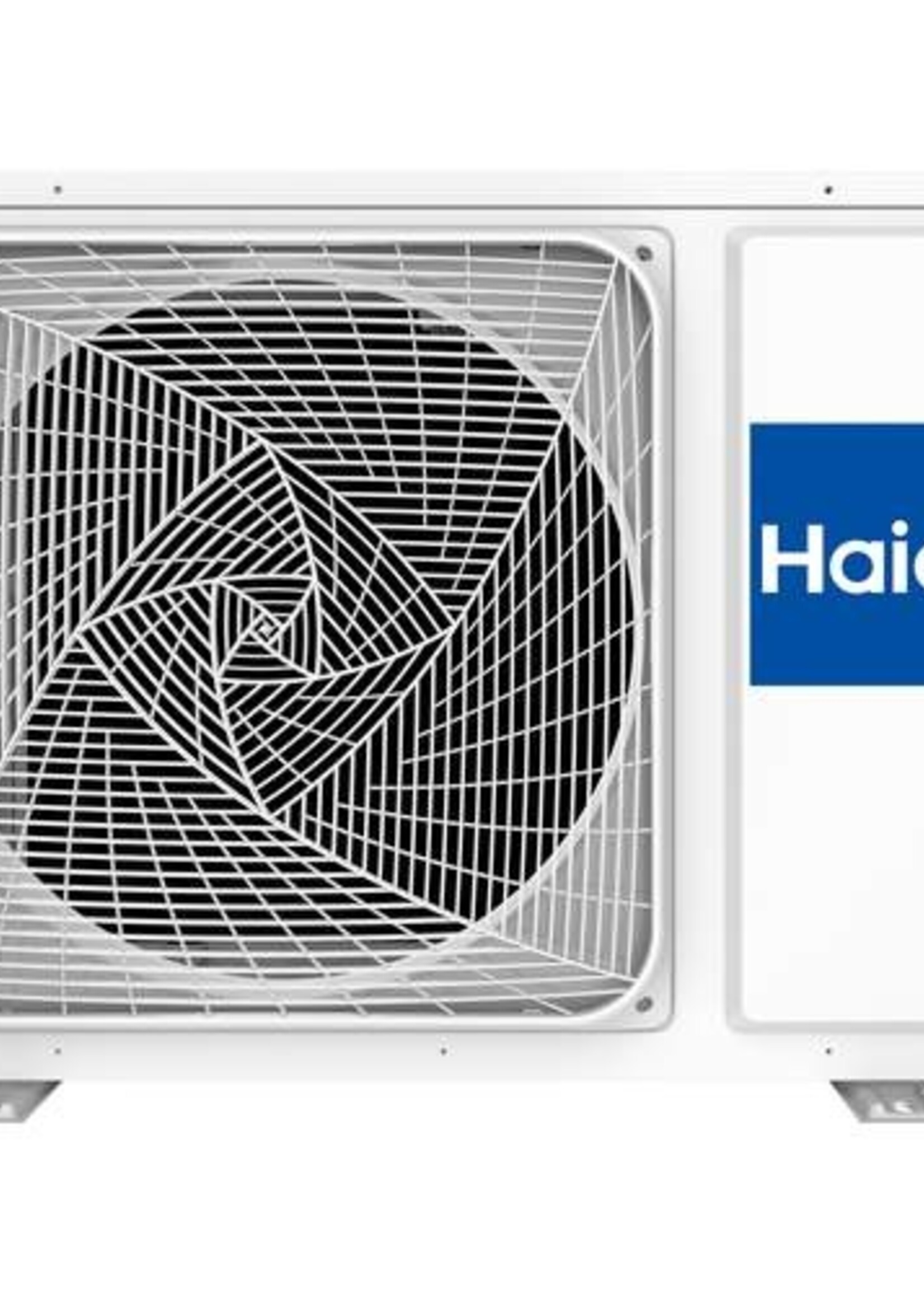

Outdoor unit

• Power supply: 1/220-240/50 Ph/V/Hz
• Air flow rate Hi: 2200 m3/h
• Sound power level: 62 dB
• Sound pressure level: 52 dB(A)

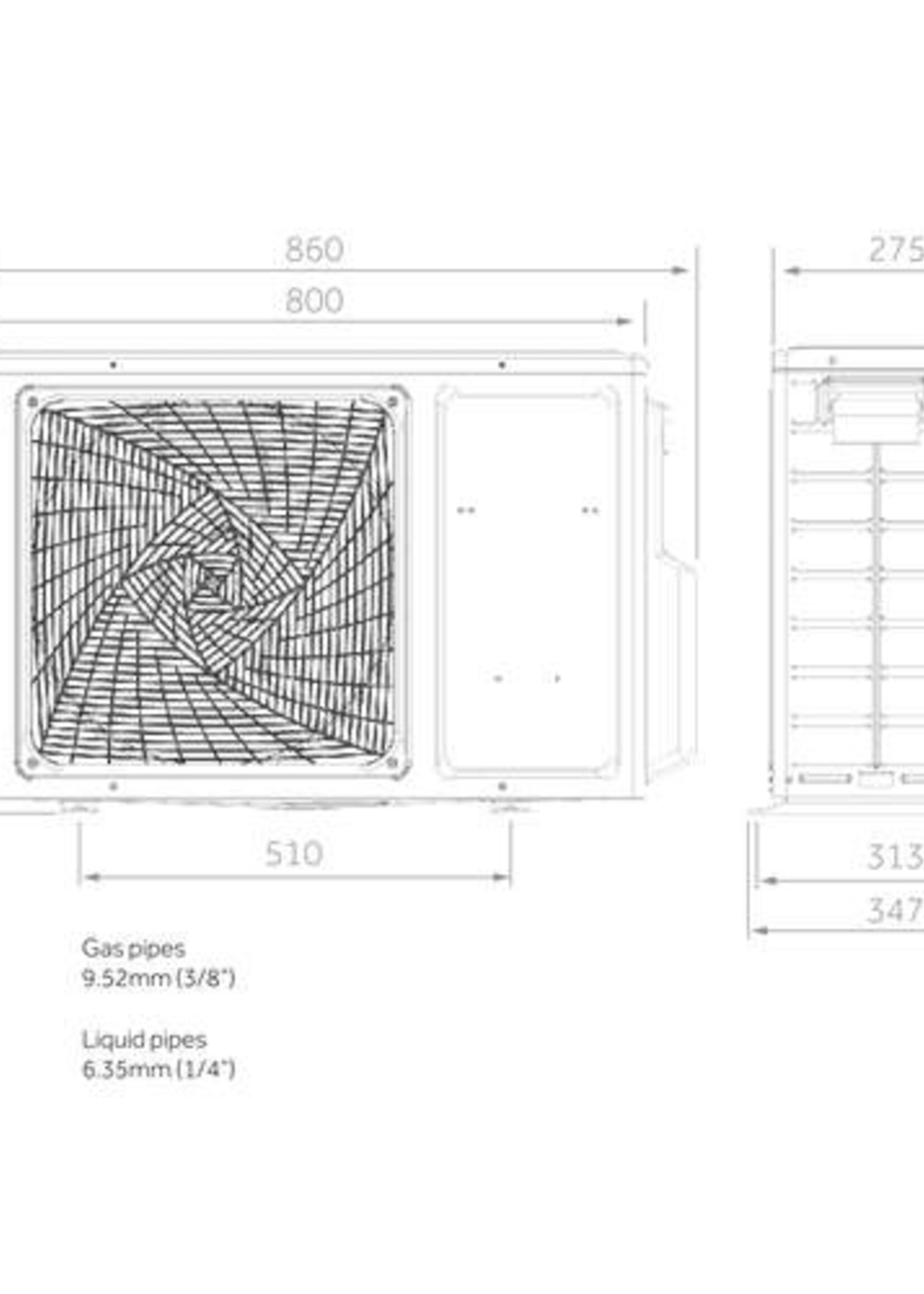

• Net dimensions W x D x H: 800x275x553 mm
• Net weight: 34 kg
• Compressor type: Double rotary inverter
• Compressor brand: Mitsubishi

Technical data

• Maximum number of indoor units: 2
• Refrigerant: R32
• Diameter liquid line: 2x 1/4" inch
• Diameter gas side: 2x 3/8" inch
• Total maximum pipe length: 30 m
• Maximum pipe length single: 20 m
• Pipe length without top-up: 20 m
• Max. height difference IU/OU: 15 m
• Max. height difference IU/IU: 15 m
• Refrigerant charge R32: 1.0 kg
• Refrigerant charge: 0.67 tCO2Eq
• Refill R32: 20 g/m
• Operating range - cooling min. - max.: -10 - 43 °C
• Operating range - heating min. - max.: -15 - 24 °C
