Applicable to the Jade, Expert, Flexis Plus and the Pearl high wall units except the Tundra and Revive

Tip: Use a flare adapter directly on the valve tap for different pipe diameters.

This product falls under the European F-gas regulation and commissioning may only be carried out by an F-gas certified company.

Are you not yet in possession of an F-gases certificate? Then click here to start your training with which you can install both single and multi-split systems as well as other heat pumps.

Curious about the possibilities? Then use our AirConfigurator to quickly put together an entire system from 1 to 5 rooms.

Capacity data

• Cooling capacity nom. (min. - max.): 5.0 (1.1 - 5.6) kW
• Heating capacity nom. (min. - max.): 5.2 (1.4 - 6.0) kW
• Consumed cooling nom. (min. - max.): 1.43 (0.3 - 2.4) kW
• Power consumption nom. (min. - max.): 1.4 (0.5 - 2.4) kW
• EER return: 3.45
• COP return: 3.71
• Pdesign - cooling capacity (35°): 5.0 kW
• Pdesign - heating capacity (-10 °): 4.7 kW
• Seasonal efficiency SEER: 6.5 (A++)
• Seasonal efficiency SCOP: 4.0 (A+)
• Annual energy consumption - cooling kWh/y: 226
• Annual energy consumption - heating kWh/y: 1645

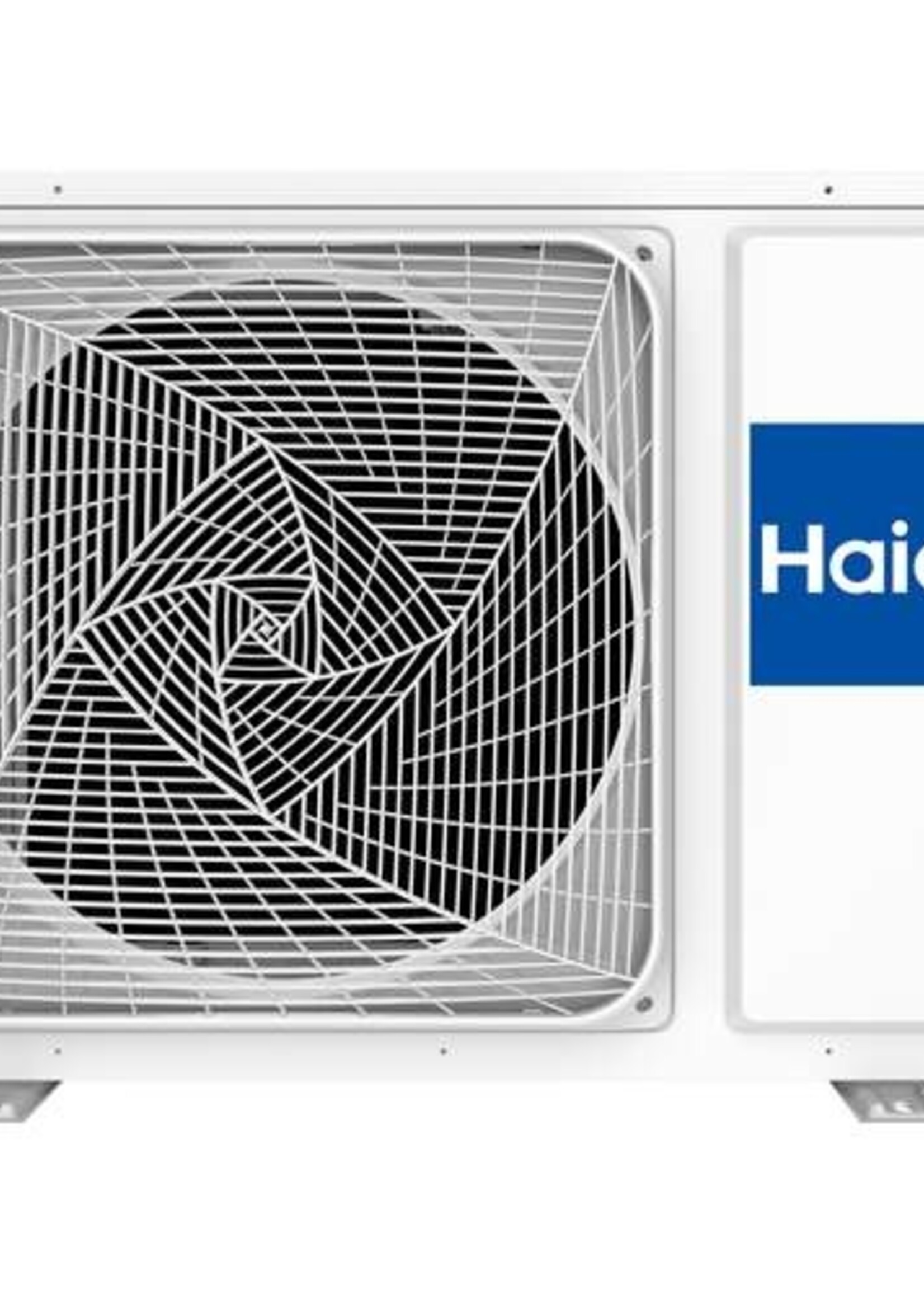

Outdoor unit

• Power supply: 1/220-240/50 Ph/V/Hz
• Air flow rate Hi: 2400 m3/h
• Sound power level: 63 dB
• Sound pressure level: 53 dB(A)

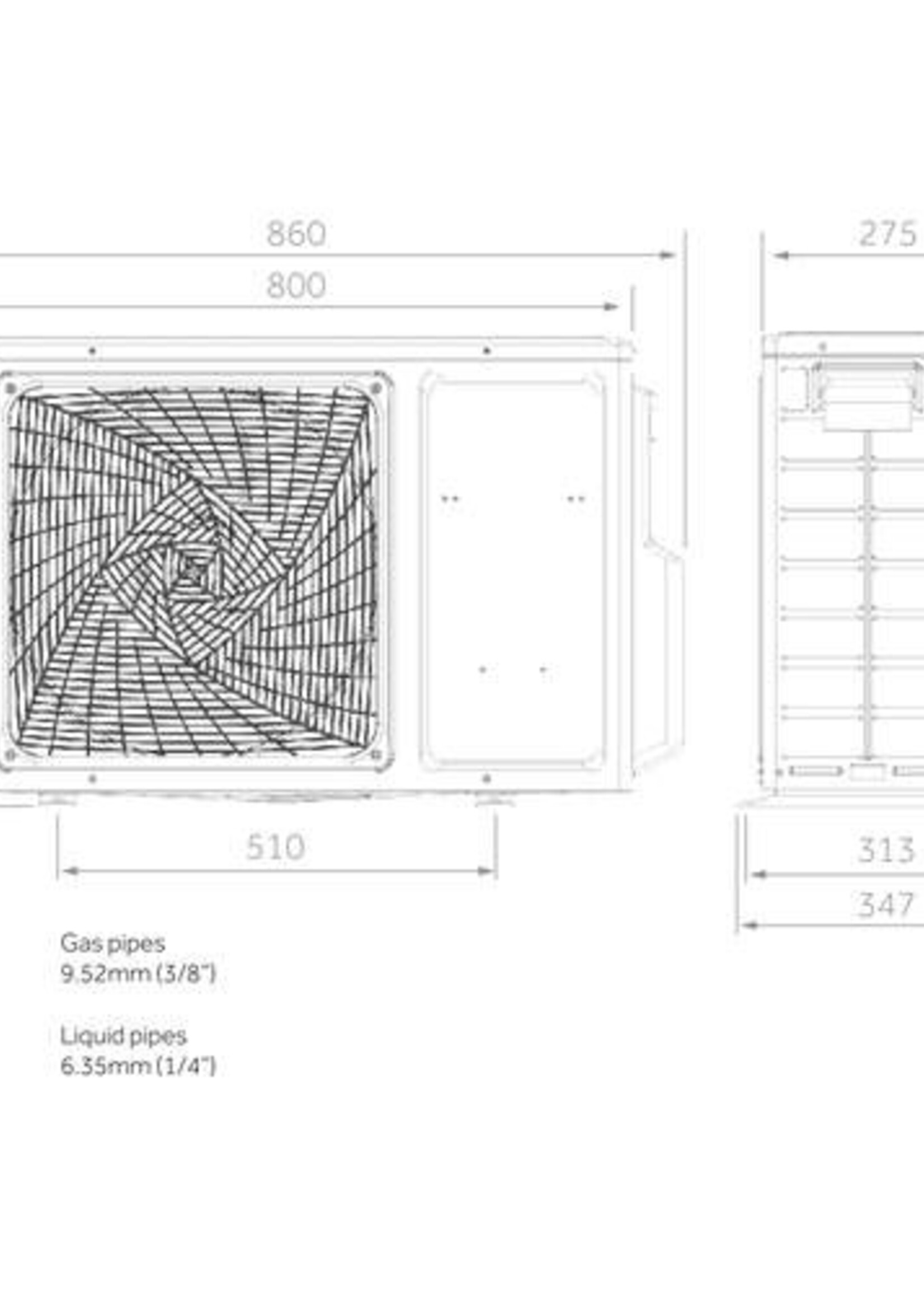

• Net dimensions W x D x H: 800x275x553 mm
• Net weight: 36 kg
• Compressor type: Double rotary inverter
• Compressor brand: Mitsubishi

Technical data

• Maximum number of indoor units: 2
• Refrigerant: R32
• Diameter liquid line: 2x 1/4" inch
• Diameter gas side: 2x 3/8" inch
• Total maximum pipe length: 30 m
• Maximum pipe length single: 20 m
• Pipe length without top-up: 20 m
• Max. height difference IU/OU: 15 m
• Max. height difference IU/IU: 7.5 m
• Refrigerant charge R32: 1.0 kg
• Refrigerant charge: 0.68 tCO2Eq
• Refill R32: 20 g/m
• Operating range - cooling min. - max.: -10 - 43 °C
• Operating range - heating min. - max.: -15 - 24 °C
