Applicable to all models except the Tundra and Revive

Tip: Use a flare adapter directly on the valve tap for different pipe diameters.

This product falls under the European F-gas regulation and commissioning may only be carried out by an F-gas certified company.

Are you not yet in possession of an F-gases certificate? Then click here to start your training with which you can install both single and multi-split systems as well as other heat pumps.

Curious about the possibilities? Then use our AirConfigurator to quickly put together an entire system from 1 to 5 rooms.

Capacity data

• Cooling capacity nom. (min. - max.): 7.5 (2.4 - 8.7) kW
• Heating capacity nom. (min. - max.): 8.6 (3.1 - 10.0) kW
• Consumed cooling nom. (min.-max.): 1.97 kW
• Power consumption nom. (min.- max.): 2.15 kW
• EER return: 3.8
• Efficiency COP: 4.0
• Pdesign - cooling capacity (35°): 7.5 kW
• Pdesign - heating capacity (-10 °): 6.3 kW
• Seasonal Efficiency SEER: 7.0 (A++)
• Seasonal efficiency SCOP: 4.0 (A+)
• Annual energy consumption - cooling kWh/y: 379
• Annual energy consumption - heating kWh/y: 2179

Outdoor unit

• Power supply: 1/220-240/50 Ph/V/Hz
• Air flow rate Hi: 4000 m3/h
• Sound power level: 66 dB
• Sound pressure level: 55 dB(A)

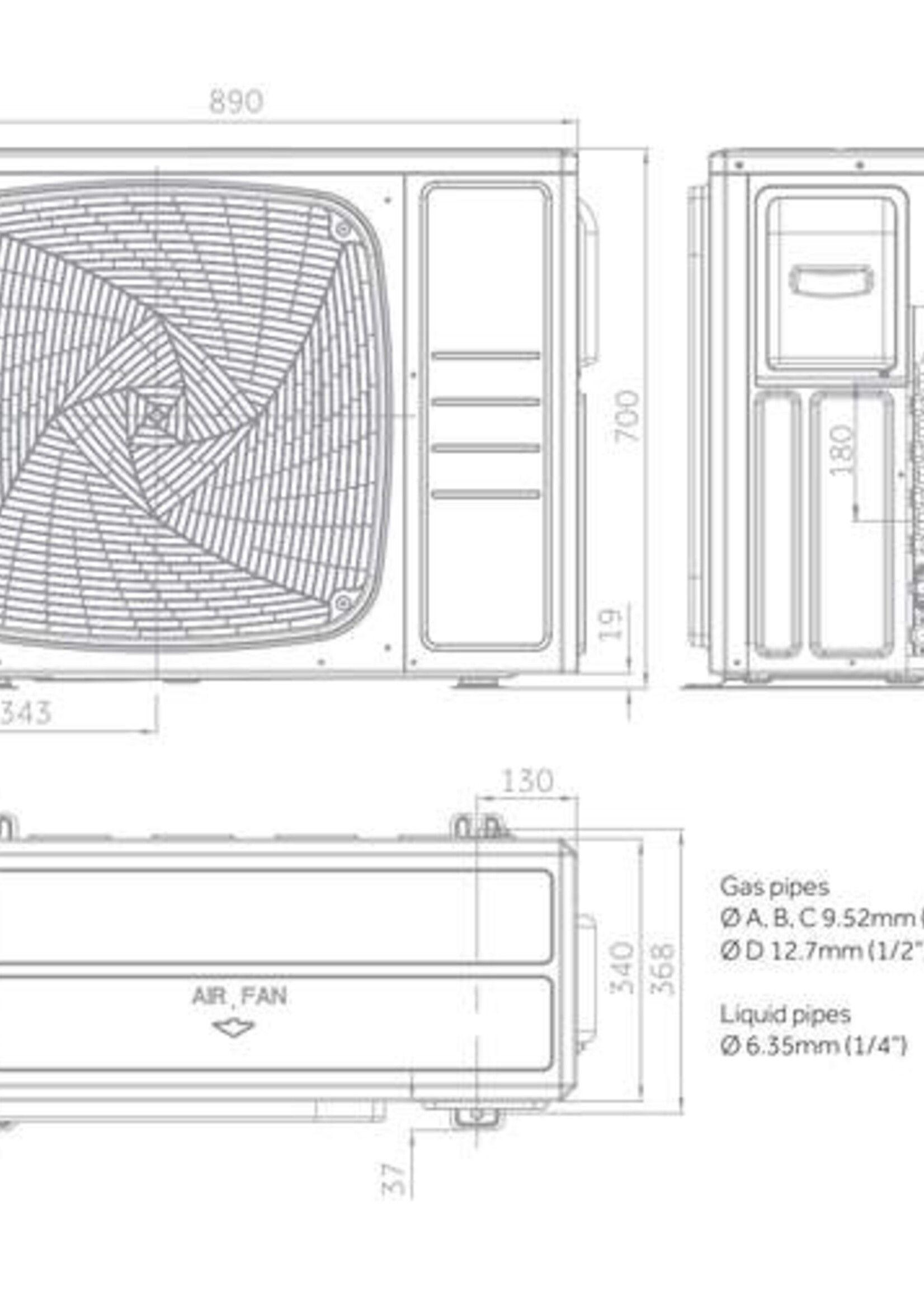

• Net dimensions W x D x H: 800x340x700 mm
• Net weight: 61 kg
• Compressor type: Double rotary inverter
• Compressor brand: Mitsubishi

Technical data

• Maximum number of indoor units: 4
• Refrigerant: R32
• Liquid pipe diameter: 4x 1/4" inch
• Diameter gas side: 3x 3/8" inch + 1x 1/2" inch
• Total maximum pipe length: 70 m
• Maximum pipe length single: 25 m
• Pipe length without top-up: 40 m
• Max. height difference IU/OU: 15 m
• Max. height difference IU/IU: 7.5 m
• Refrigerant charge R32: 2.2 kg
• Refrigerant charge: 1.08 tCO2Eq
• Refill R32: 20 g/m
• Operating range - cooling min. - max.: -10 - 43 °C
• Operating range - heating min. - max.: -15 - 24 °C
