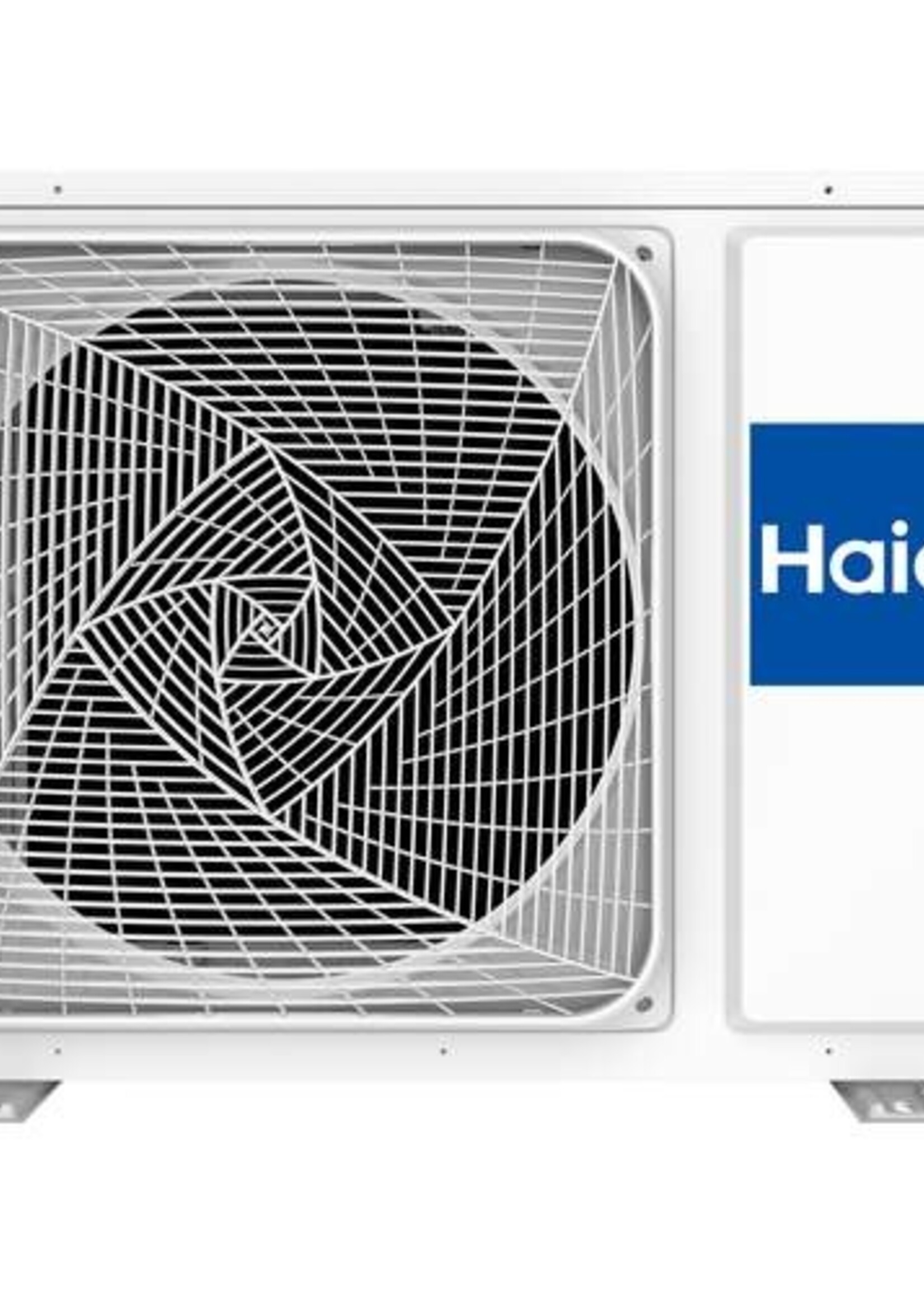

Haier Multi-split outdoor unit 9.0 kW for max. 5 indoor units R32

Applicable to all models except the Tundra and Revive

Tip: Use a flare adapter directly on the valve tap for different pipe diameters.

This product falls under the European F-gas regulation and commissioning may only be carried out by an F-gas certified company.

Are you not yet in possession of an F-gases certificate? Then click here to start your training with which you can install both single and multi-split systems as well as other heat pumps.

Curious about the possibilities? Then use our AirConfigurator to quickly put together an entire system from 1 to 5 rooms.

Capacity data

Cooling capacity nom. (min. - max.): 9.0 (3.2 - 11) kW
Heating capacity nom. (min. - max.): 10.4 (4.4 - 11.5) kW
Consumed cooling nom. (min.-max.): 2.79 kW
Power consumption nom. (min.-max.): 2.79 kW
EER return: 3.23
COP return: 3.73
Pdesign - cooling capacity (35°): 9.0 kW
Pdesign - heating capacity (-10 °): 7.2 kW
Seasonal Efficiency SEER: 7.0 (A++)
Seasonal efficiency SCOP: 4.0 (A+)
Annual energy consumption - cooling kWh/y: 457
Annual energy consumption - heating kWh/y: 2441

Outdoor unit

Power supply: 1/220-240/50 Ph/V/Hz
Air flow rate Hi: 4200 m3/h
Sound power level: 70 dB
Sound pressure level: 55 dB(A)

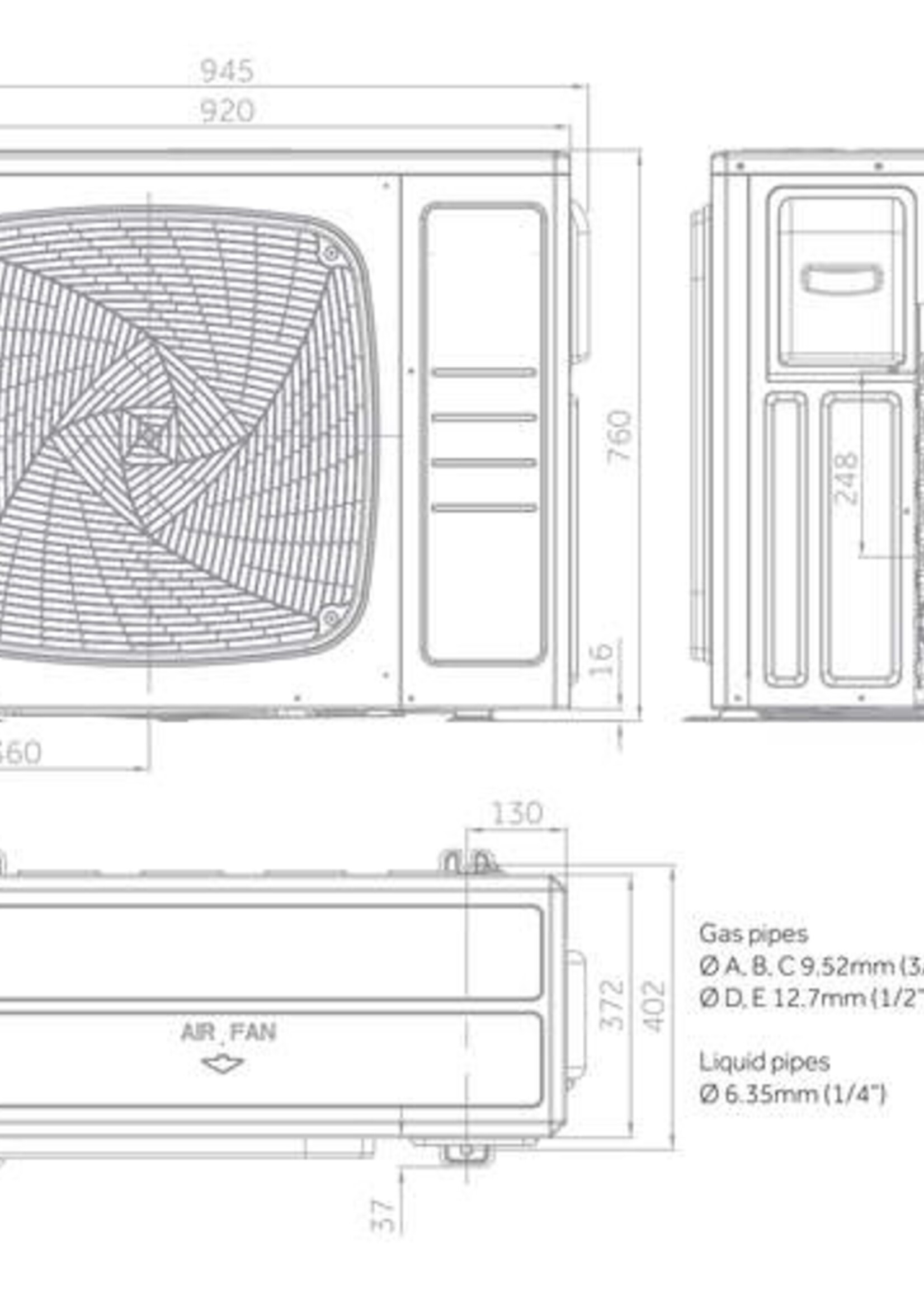

Net dimensions W x D x H: 920x372x760 mm
Net weight: 66 kg
Compressor type: Double rotary inverter
Compressor brand: Mitsubishi

Technical data

Maximum number of indoor units: 5
Refrigerant: R32
Liquid pipe diameter: 5x 1/4" inch
Diameter gas side: 3x 3/8" + 2x 1/2" inch
Total maximum pipe length: 80 m
Maximum pipe length single: 25 m
Pipe length without top-up: 40 m
Max. height difference IU/OU: 15 m
Max. height difference IU/IU: 7.5 m
Refrigerant charge R32: 2.4 kg
Refrigerant charge: 1.62 tCO2Eq
Refill R32: 20 g/m
Operating range - cooling min. - max.: -10 - 43 °C
Operating range - heating min. - max.: -15 - 24 °C

Applicable Multi-split all models of indoor units up to max. 9.0 kW 1:5

Brand	Haier
Supplier code	5U90S2SS5FA
EAN code	6936294571374
Discount group	PHR
Product type	Outdoor unit

Type	R32
Height	760 mm
Width	920 mm
Depth	372 mm
Connection size	5x 1/4" + 3x 3/8" + 2x 1/2"
