This product falls under the European F-gas Regulation, and installation may only be carried out by an F-gas certified company.

Don’t have an F-gas certificate yet? Click here to start your training, which will allow you to install both single and multisplit systems, as well as other heat pumps.

Wondering about the possibilities? Use our AirConfigurator to quickly put together a complete system for 1 to 5 rooms.

Capacity Data

• Nominal cooling capacity (min. - max.): 12.0 (2.4 - 12.7) kW
• Nominal heating capacity (min. - max.): 12.3 (1.8 - 13.0) kW
• Nominal power consumption - cooling (min. - max.): 4.3 (0.3 - 5.6) kW
• Nominal power consumption - heating (min. - max.): 3.8 (0.3 - 5.6) kW
• EER (Energy Efficiency Ratio): 2.64
• COP (Coefficient of Performance): 3.08
• Pdesign - cooling capacity (35 °C): 12.1 kW
• Pdesign - heating capacity (-10 °C): 8.3 kW
• Seasonal efficiency SEER: 5.9
• Seasonal efficiency SCOP: 3.7
• Annual energy consumption - cooling: 719 kWh/year
• Annual energy consumption - heating: 3100 kWh/year

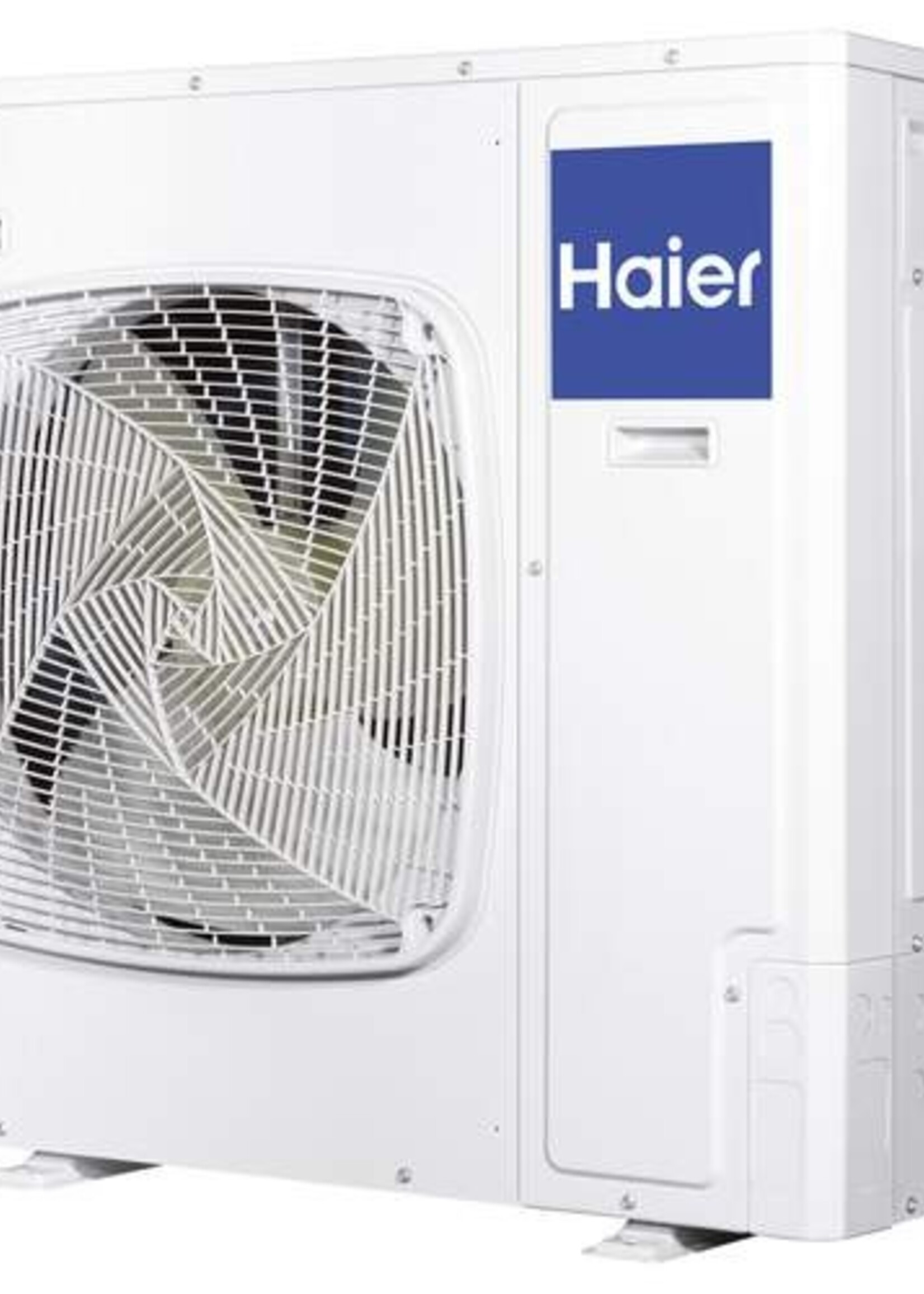

Outdoor Unit

• Power supply: 1/220-240/50/60 Ph-V-Hz
• Sound power level Hi: 68 dB
• Sound pressure level Hi: 52 dB(A)
• Dimensions (W x D x H): 965 x 950 x 370 mm
• Net weight: 82 kg
• Compressor type: Double rotating inverter

Technical Data

• Refrigerant: R32
• Liquid pipe diameter Ø: 9.52 mm (3/8")
• Gas pipe diameter Ø: 15.88 mm (5/8")
• Pipe length without recharging: 30 m
• Maximum pipe length: 50 m
• Maximum height difference: 30 m
• Refrigerant charge: 2.3 kg
• Refrigerant charge (CO2 equivalent): 1.3 tCO2Eq
• Recharging (g/m): 45 g/m
• Operating range - cooling min. - max.: 21 - 35 °C (indoor) / -10 - 46 °C (outdoor)
• Operating range - heating min. - max.: 10 - 27 °C (indoor) / -15 - 24 °C (outdoor)
