This product falls under the European F-gas regulation and commissioning may only be carried out by an F-gas certified company.

Are you not yet in possession of an F-gas certificate? Then click here to start your training with which you can install both single and multi-split systems as well as other heat pumps.

Curious about the possibilities? Then use our AirConfigurator to quickly put together an entire system of 1 to 5 rooms.

Capacity data

• Cooling capacity nom. (min. - max.): 12.3 (2.8 - 14.0) kW
• Heating capacity nom. (min. - max.): 14.5 (3.0 - 15.0) kW
• Power input - cooling nom. (min. - max.): 4.39 (1.0 - 7.2) kW
• Power input - heating nom. (min. - max.): 4.68 (1.0 - 7.2) kW
• Efficiency EER: 2.80
• Efficiency COP: 3.10
• Pdesign - cooling capacity (35 °): 13 kW
• Pdesign - heating capacity (-10 °): 10 kW
• Seasonal efficiency SEER: 5.1
• Seasonal efficiency SCOP: 3.8
• Annual energy consumption - cooling: 765 kWh/y
• Annual energy consumption - heating: 3800 kWh/y

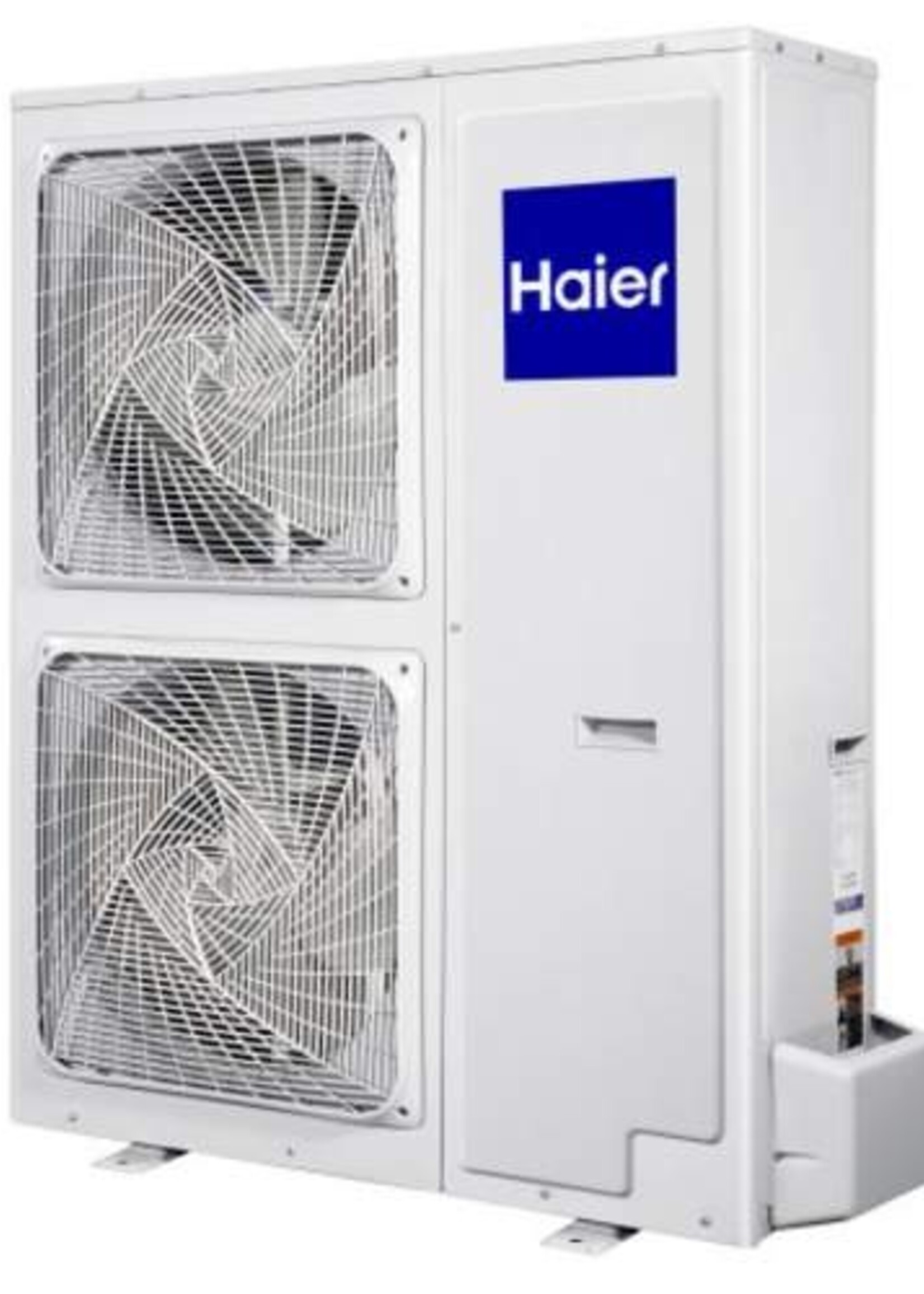

Outdoor unit

• Power supply: 1/220-240/50/60 Ph-V-Hz
• Sound power level Hi: 70 dB
• Sound pressure level Hi: 53 dB(A)
• Dimensions w x d x h: 1350x950x370 mm
• Net weight : 105 kg
• Type of compressor : Double rotary inverter
• Maximum pipe length: 75 m
• Maximum pipe height: 30 m
• Refrigerant charge: 2.9 kg
• Refrigerant charge: 1.9 tCO2Eq
• Recharge g/m: 45 g/m
• Operating range - cooling min. - max.: 21 - 35 °C (indoor)/-15 - 52 °C (outdoor) °C
• Operating range - heating min. - max.: 10 - 27 °C (indoor)/-20 - 24 °C (outdoor) °C
