Capacity data

• Cooling capacity nom. (min. - max.): 3.5 (1.0 - 4.0) kW
• Heating capacity nom. (min. - max.): 4.2 (1.0 - 5.2) kW
• Power input - cooling nom. (min. - max.): 0.88 (0.3 - 1.5) kW
• Power input - heating nom. (min. - max.): 1.1 (0.5 - 1.6) kW
• EER return: 4.0 w/w
• Yield COP: 3.81 w/w
• Pdesign - cooling 35 °C: 3.5 kW
• Pdesign - heating (-10 °C): 2.8 kW
• Seasonal efficiency SEER: 8.5 (A+++)
• Seasonal efficiency SCOP: 4.6 (A++)
• Annual energy consumption - cooling: 144 kWh/y
• Annual energy consumption - heating: 854 kWh/y

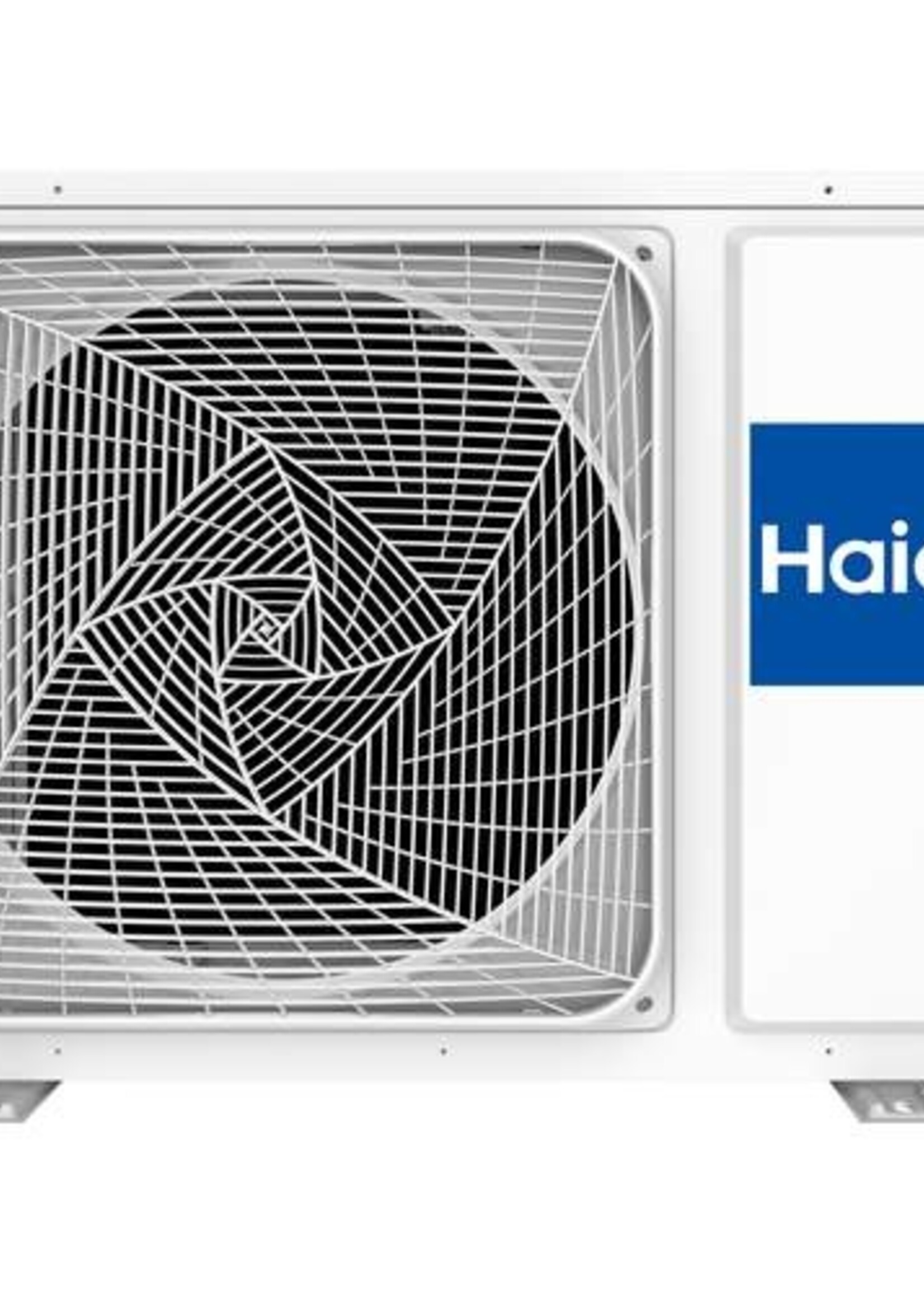

Outdoor unit

• Power: 1/220-240/50 Ph/V/Hz
• Sound power level: Hi 59 dB
• Sound pressure level: Hi 47 dB(A)
• Consumed current: max. 7.2 A
• Net dimensions: w x d x h 800x275x553 mm
• Net weight: 29 kg
• Compressor type: Single rotary inverter
• Compressor brand: Panasonic

Technical data

• Refrigerant: R32
• Liquid pipe diameter: Ø 6.35 (1/4”) mm (inch)
• Gas side diameter: Ø 9.52 (3/8”) mm (inch)
• Pipe length without top-up: 7 m
• Maximum pipe length: 15 m
• Maximum pipe height: 10 m
• Refrigerant charge: 0.65 kg
• Refrigerant charge: 0.44 tCO ² Eq
• Refill: 20 g/m
• Operating range - cooling: min. - max. 21 - 35 °C (indoor)/-10 - 43 °C (outdoor) °C
• Operating range - heating: min. - max. 10 - 27 °C (indoor)/-15 - 24 °C (outdoor) °C

This product falls under the European F-gas regulation and commissioning may only be carried out by an F-gas certified company.
