R290 is developing into a serious alternative to high GWP gases in the air conditioning and heat pump market. It offers promising natural and non-toxic properties with lower greenhouse gas emissions.

In terms of performance, R290 is just as good as R32 in every respect. The most important part of R290 is its significant environmental benefits through good energy performance and a near-zero GWP. R290 is not only a suitable replacement for high GWP gases in air to air heat pumps, but also has potential use for air to water heat pumps.

In addition to its low impact on the environment, R290 is very energy efficient and can lead to lower energy costs for companies. Its excellent heat transfer properties, non-toxic properties and compatibility with many existing cooling systems make it an attractive solution.

R290 is not only a high-performing and green alternative solution, but also an economical solution . Due to the thermodynamic properties and high performance, electricity consumption will be lower and we will see an immediate reduction in electricity costs for our end users.

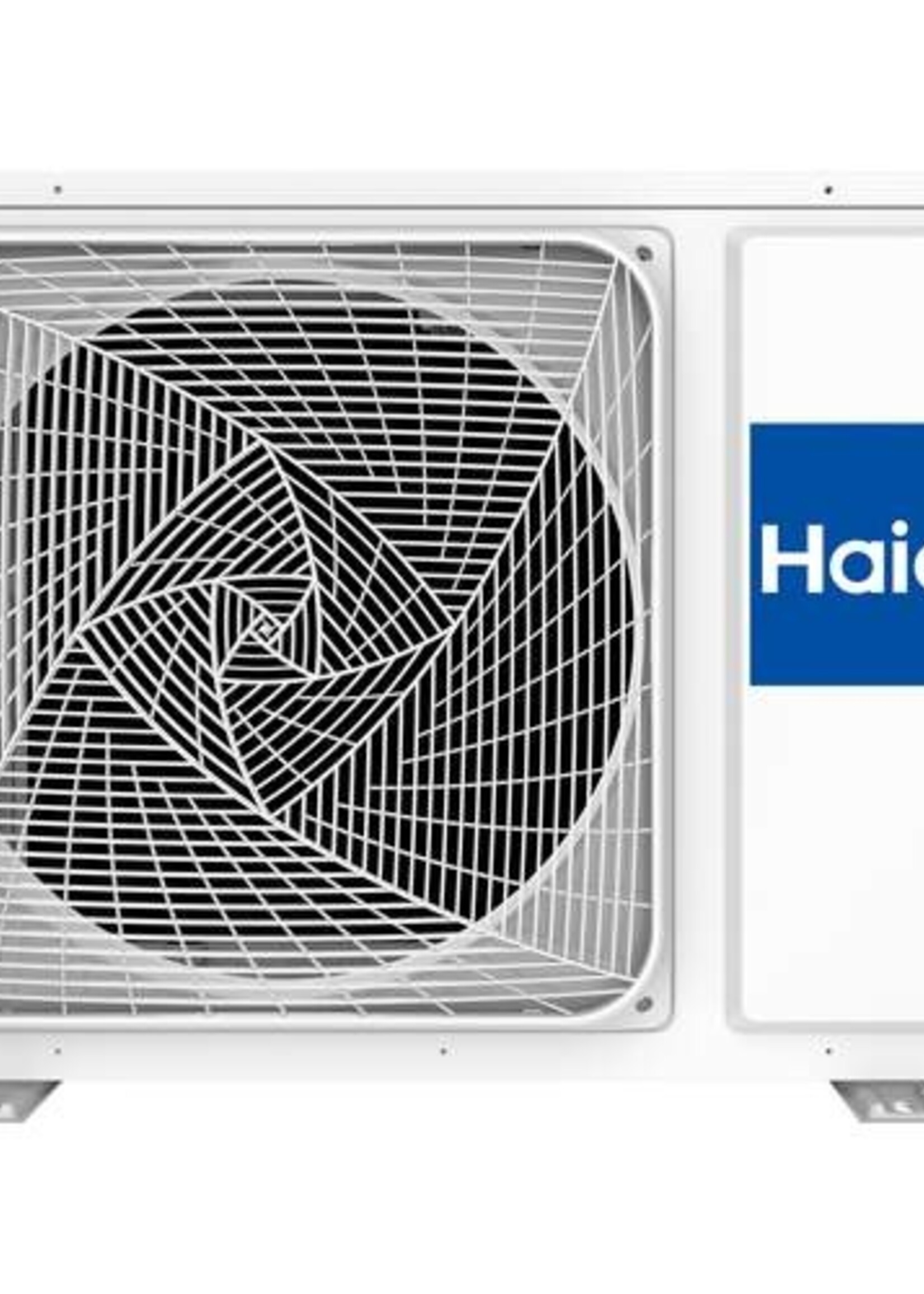

Outdoor unit

• Power: 1/220-240/50 Ph/V/Hz
• Sound power level: Hi 63 dB
• Sound pressure level: Hi 49 dB(A)
• Consumed current: max. 7.0 A
• Insurance value: 16 A
• Net dimensions: w x d x h 700x245x544 mm
• Net weight: 24.5/27 kg
• Compressor type: Single rotary inverter
• Compressor brand: Highly

Technical data

• Refrigerant: R290
• Liquid pipe diameter: Ø 6.35 (1/4") mm (inch)
• Gas side diameter: Ø 9.52 (3/8") mm (inch)
• Pipe length without top-up: 10 m
• Minimum pipe length: 3 m
• Maximum pipe height: 10 m
• Refrigerant charge: 310 g
• Refrigerant charge: 0.35 tCO ² Eq
• Topping up: Not allowed!
• Operating range - cooling: min. - max. 21 - 35 °C (indoor)/-10 - 43 °C (outdoor) °C
• Operating range - heating: min. - max. 10 - 27 °C (indoor)/-15 - 24 °C (outdoor) °C

This product falls under the European F-gas regulation and commissioning may only be carried out by an F-gas certified company.

Are you not yet in possession of an F-gases certificate? Then click here to start your training with which you can install both single and multi-split systems as well as other heat pumps.
