This product falls under the European F-gas regulation and commissioning may only be carried out by an F-gas certified company.

Are you not yet in possession of an F-gases certificate? Then click here to start your training with which you can install both single and multi-split systems as well as other heat pumps.

Curious about the possibilities? Then use ourAirConfigurator to quickly put together an entire system from 1 to 5 rooms.

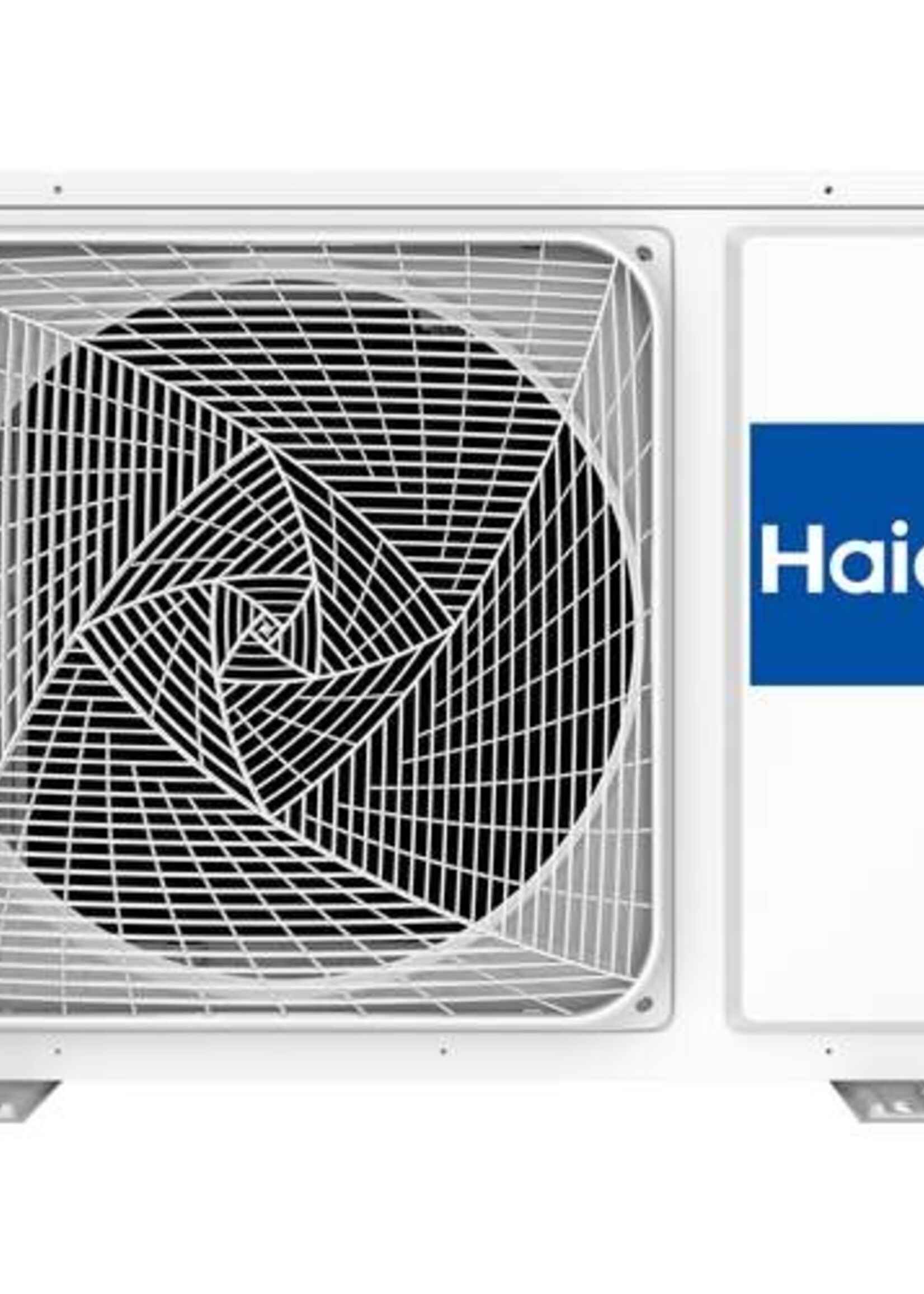

Outdoor unit

• Power: 1/220-240/50 Ph/V/Hz
• Sound power level: Hi 65 dB
• Sound pressure level: Hi 51 dB(A)
• Consumed current: max. 6.95 A
• Insurance value: B16
• Net dimensions: w x d x h 800x280x553 mm
• Net weight: 28.5 kg
• Compressor type: Single rotary inverter
• Compressor brand: Highly

Technical data

• Refrigerant: R32
• Liquid pipe diameter: Ø 6.35 (1/4") mm (inch)
• Gas side diameter: Ø 9.52 (3/8") mm (inch)
• Pipe length without top-up: 7 m
• Maximum pipe length: 20 m
• Maximum pipe height: 10 m
• Refrigerant charge: 0.53 kg
• Refrigerant charge: 0.36 tCO ² Eq
• Refill: 20 g/m
• Operating range - cooling: min. - max. 21 - 35 °C (indoor)/-20 - 43 °C (outdoor) °C
• Operating range - heating: min. - max. 10 - 27 °C (indoor)/-20 - 24 °C (outdoor) °C
