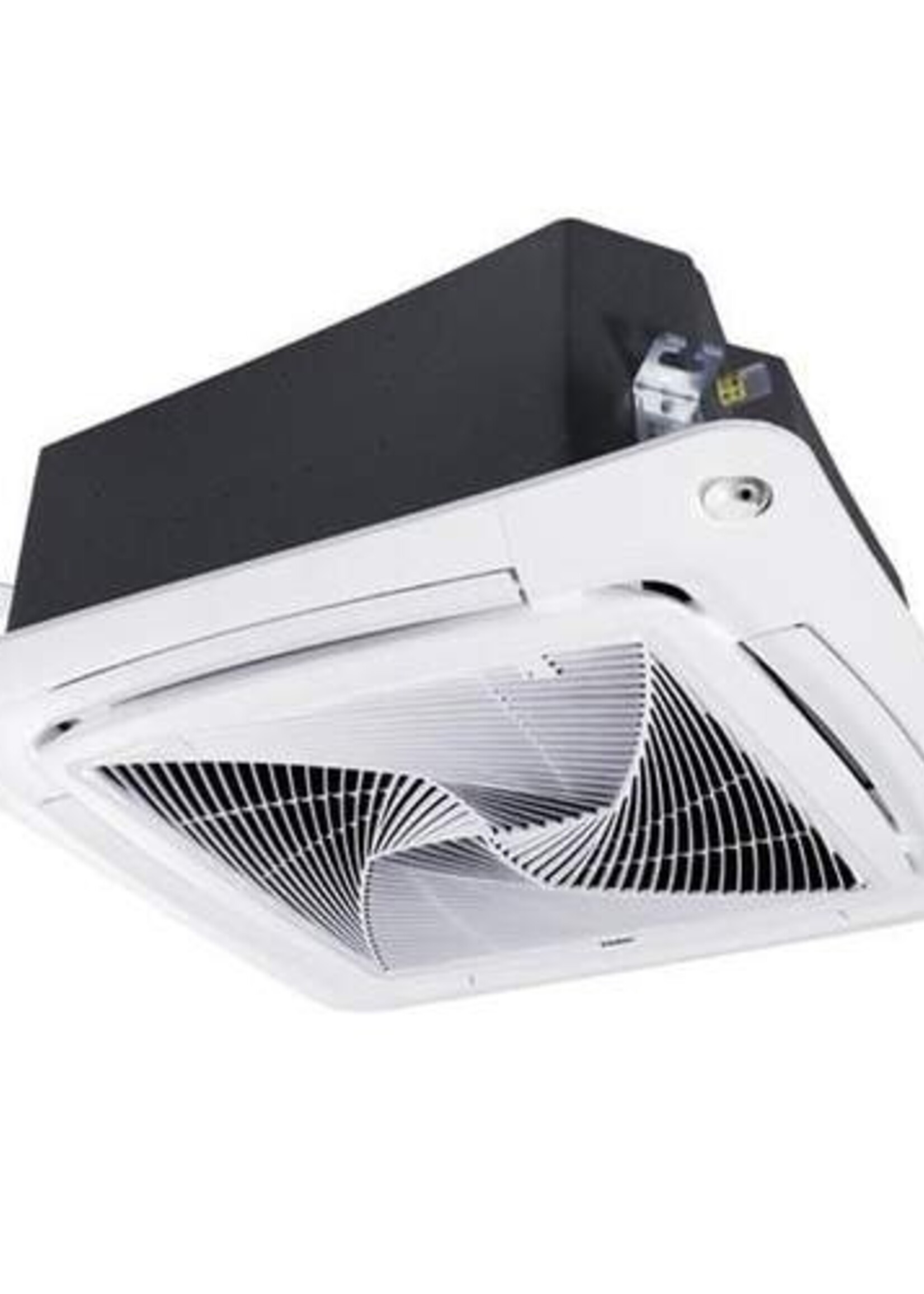

Haier Roundway Cassette indoor unit 14.0 kW R32 (excl. discharge panel)

This product falls under the European F-gas regulation and commissioning may only be carried out by an F-gas certified company.

Are you not yet in possession of an F-gases certificate? Then click here to start your training with which you can install both single and multi-split systems as well as other heat pumps.

Curious about the possibilities? Then use ourAirConfigurator to quickly put together an entire system from 1 to 5 rooms.

Functions of the Compact Cassette

Silent

Low noise level thanks to the optimized design of the fan, air ducts and motor.

Exhaust rulers individually adjustable

When the unit cannot be placed exactly in the middle of the room.

Wifi standard with hOn Smart Home App

Download the Haier App on an Apple or Android device and connect it to your device to control your system wherever you are, at any time.

Possibility of connecting outside air

This connection is optional for the supply of fresh outside air.

On/off card

Potential free contact for, for example, a door or window contact.

Supermatch

Many combination options of indoor and outdoor units.

UVC Sterilization

The indoor unit contains a UVC lamp that sterilizes the expelled air by up to 99.9%.

Indoor unit

Power supply: 1/220-240/50/60 Ph-V-Hz
Air flow max.: 1950/1600/1440/1200 m3/h
Sound power level: 64 dB
Sound pressure level: 47/44/38/34 dB(A)
Net dimensions W x D x H: 840x840x288 mm
Net weight: 32 kg
Panel dimensions W x D x H: 950x950x50 mm
Net weight of panel: 6.5 kg

Brand	Haier
Supplier code	ABH140K1ERG(H)
EAN code	6936294561085
Discount group	PHR
Product type	Indoor unit

Series	Roundway
Type	R32
Model	Cassette
Color	White
Connection size	3/8" x 5/8"
