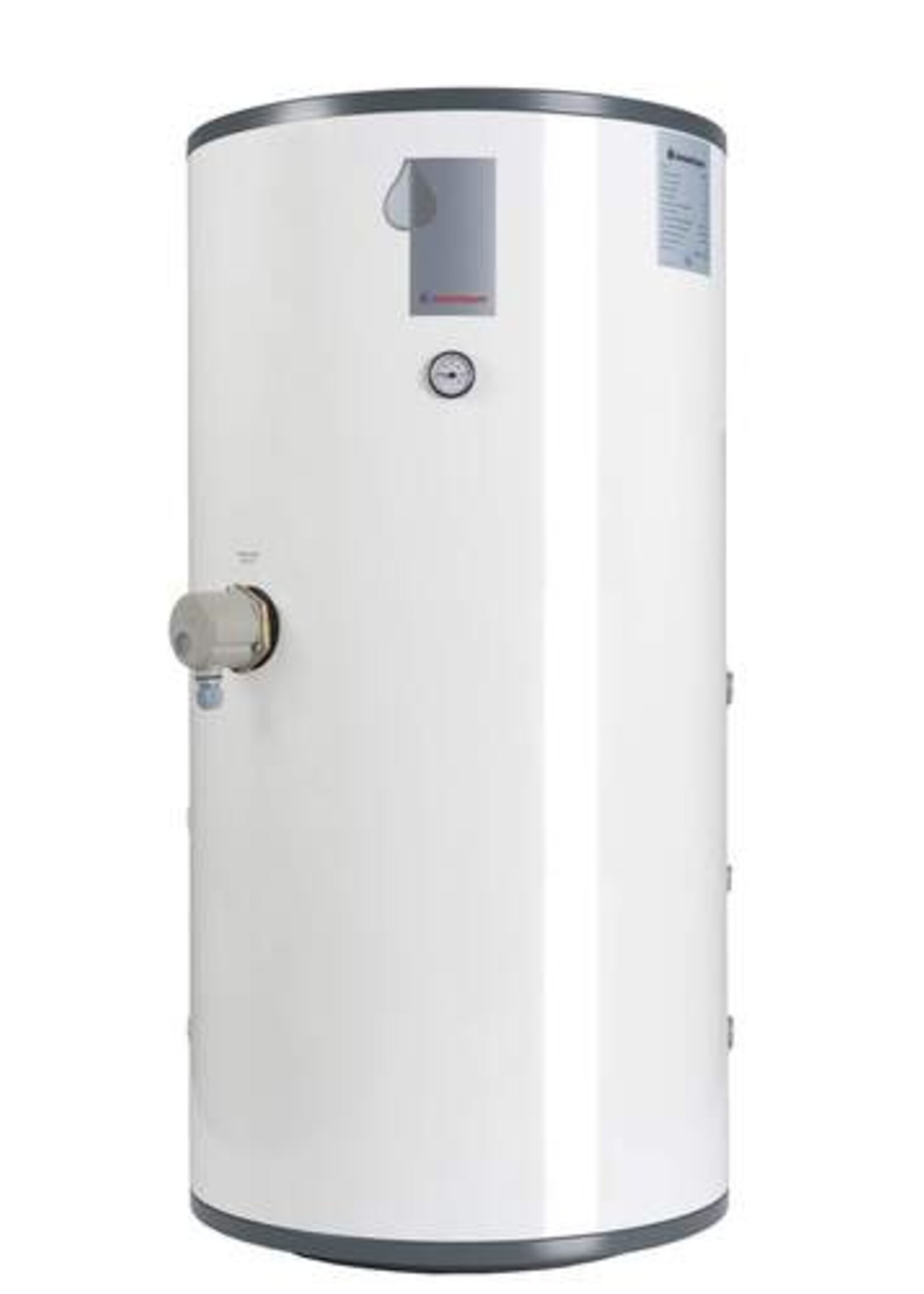

Inventum INV-HPB 200 boiler indirectly fired 200 liters including immersion tube

Brand	Inventum
Supplier code	37030220
EAN Code	8716453012164
Discount group	095
Width	580 mm
Height	1475 mm
Depth	580 mm
Diameter	580 mm
Energy efficiency class	B
Contents	200 l
Material boiler barrel	Stainless steel (SS)
With thermometer	Yes
With pressure gauge	No
Water heating energy efficiency (Nwh)	56%
Capacity profile	L
Nom. diameter drain connection	1 1/2" (40)
Nom. diameter primary	1" (25)
Nom. diameter hot tap water	1" (25)
Tilt height	1584.937 mm
Nom. diameter cold tap water	1" (25)
Material coat	Steel
Double separation	No

With cleaning opening	Yes
Protective anode	No
Wall mounting	No
External pipe diameter cold tap water	25 mm
External pipe diameter hot tap water	25 mm
Surface protection barrel	Untreated
With pressure reducing valve	No
Heat transfer	Spiral
Cold tap water connection	Internal thread cylindrical BSPP-G (ISO 228-1)
Hot water connection	Internal thread cylindrical BSPP-G (ISO 228-1)
External pipe diameter circulation line	25 mm
Connection of circulation line	Internal thread cylindrical BSPP-G (ISO 228-1)
External pipe diameter drain connection	40 mm
Drain connection	Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
Placement vertically	Yes
Max. working pressure primary	8 bar
Max. working pressure secondary	8 bar
Primary connection	Internal thread cylindrical BSPP-G (ISO 228-1)
Primary external tube diameter	25 mm
Nom. diameter circulation pipe	1" (25)
Max. transferable capacity 80/10-45	85 kW

Inventum stainless steel boiler MAXTANK with a larger exchanger surface (double wound), specially developed for use in combination with heat pumps.
