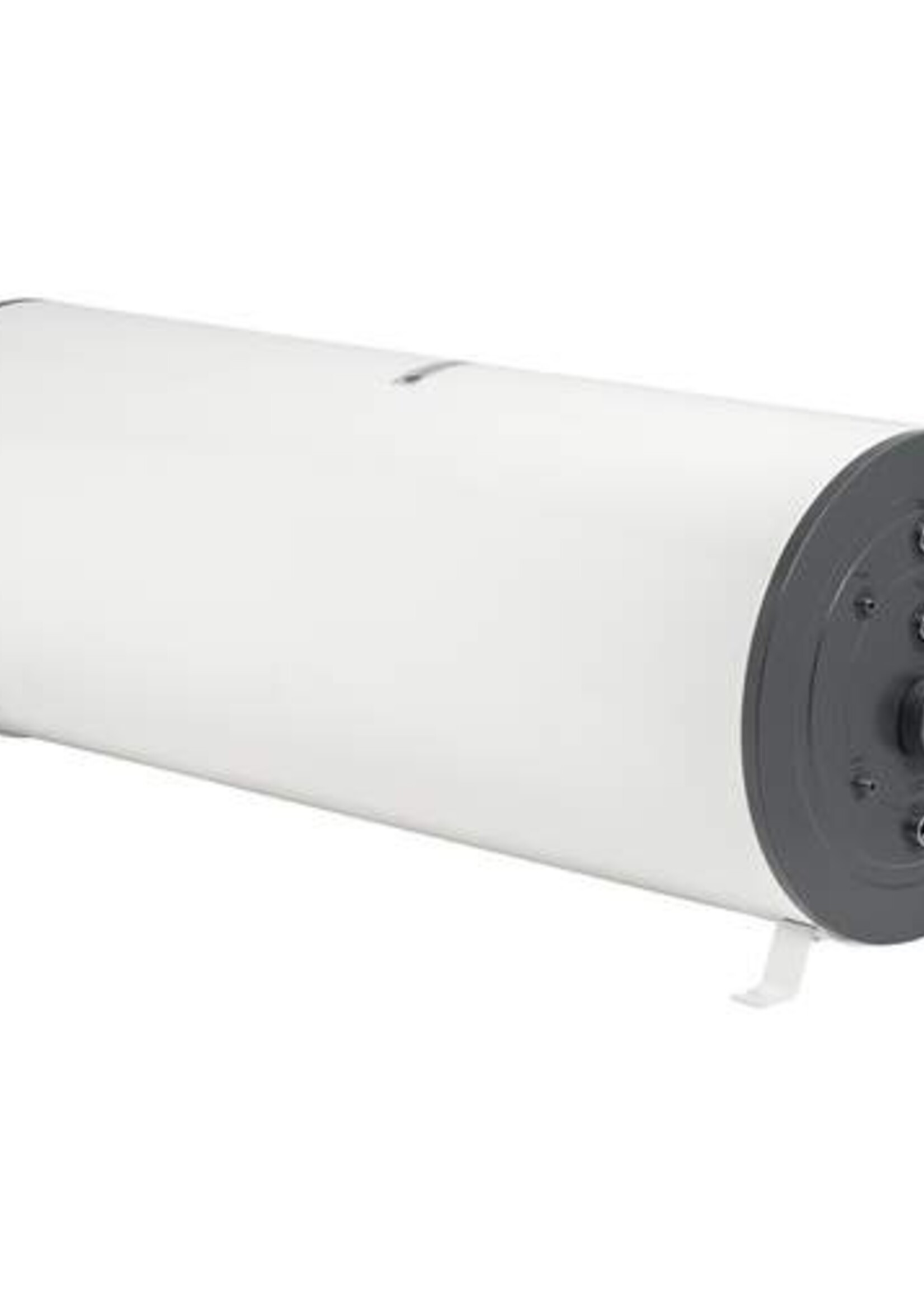

Inventum Maxtank boiler 200 liters for heat pump with immersion tube

Brand	Inventum
Supplier code	30002006
EAN Code	8716453012430
Discount group	095
Width	1560 mm
Height	605 mm
Depth	580 mm
Diameter	580 mm
Energy efficiency class	C
Contents	220 l
Material boiler barrel	Stainless steel (SS)
With thermometer	Yes
With pressure gauge	No
Water heating energy efficiency (Nwh)	67%
Capacity profile	L
Nom. diameter drain connection	1 1/2" (40)
Nom. diameter primary	3/4" (20)
Nom. diameter hot tap water	3/4" (20)
Tilt height	838.108 mm
Nom. diameter cold tap water	3/4" (20)
Material coat	Steel
Double separation	No

With cleaning opening	Yes
Protective anode	No
Wall mounting	No
External pipe diameter cold tap water	20 mm
External pipe diameter hot tap water	20 mm
Surface protection barrel	Untreated
With pressure reducing valve	No
Heat transfer	Spiral
Cold tap water connection	Internal thread cylindrical BSPP-G (ISO 228-1)
Hot water connection	Internal thread cylindrical BSPP-G (ISO 228-1)
External pipe diameter circulation line	20 mm
Connection of circulation line	Internal thread cylindrical BSPP-G (ISO 228-1)
External pipe diameter drain connection	40 mm
Drain connection	Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
Placement vertically	No
Max. working pressure primary	8 bar
Max. working pressure secondary	8 bar
Primary connection	Internal thread cylindrical BSPP-G (ISO 228-1)
Primary external tube diameter	20 mm
Nom. diameter circulation pipe	3/4" (20)
Max. transferable capacity 80/10-45	55 kW

This Inventum Maxtank boiler has a capacity of 200 liters and is perfectly suited for a combination with a heat pump. The boiler is equipped with an inclusive immersion tube for 6 mm sensor and has an 85kW heat output spiral.

Features:

Suitable for all types of heat pumps
High quality, corrosion resistant stainless steel material (including immersion tube)
Low maintenance (functions without anode)
Lightweight compared to enamelled boilers
