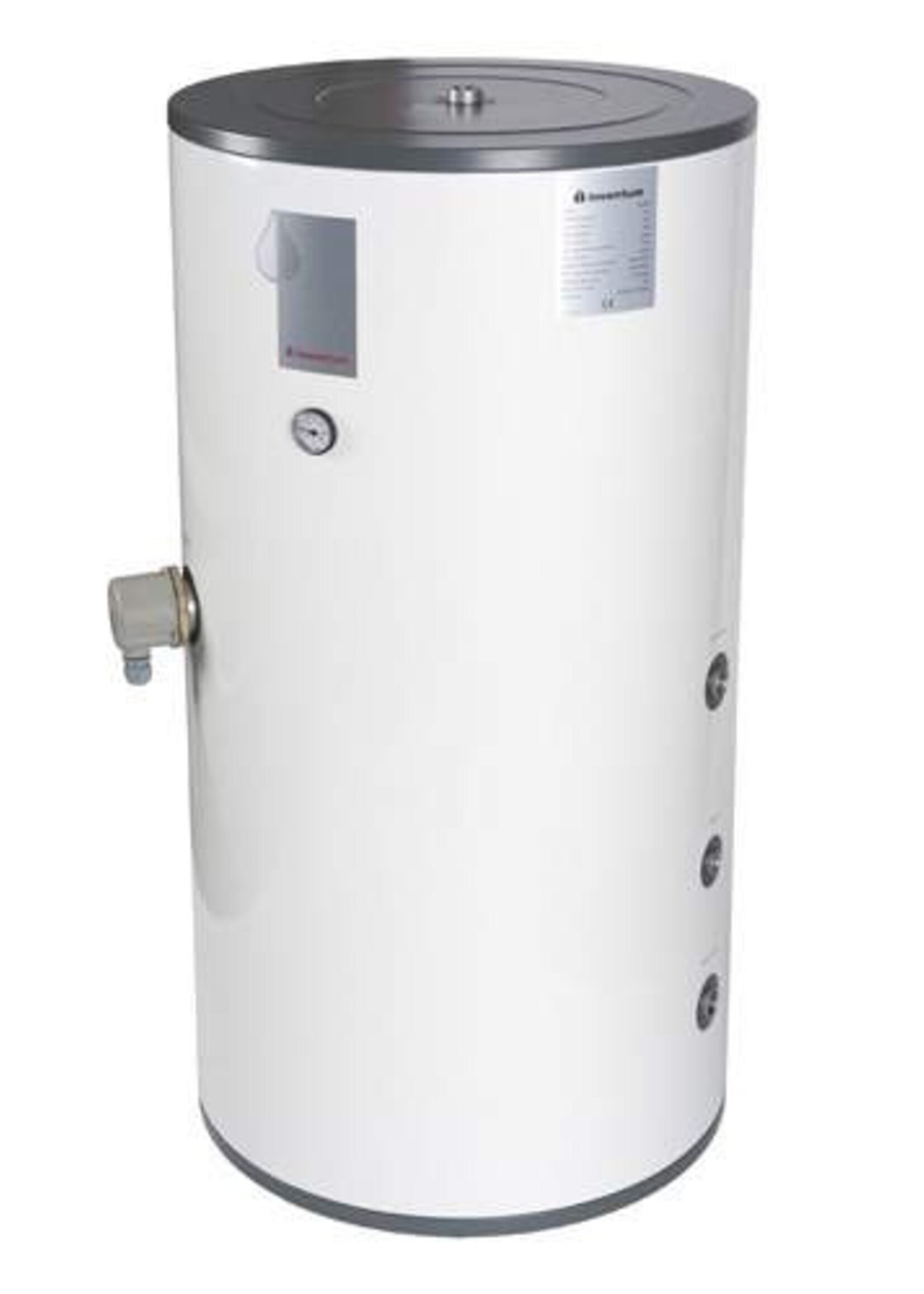

Inventum MAXTANK IB 150 Solo indirectly heated boiler, standing model,

Feature	Value
Brand	Inventum
Supplier Code	37010150
EAN Code	8716453009270
Discount Group	095
Width	550 mm
Height	1115 mm
Depth	550 mm
Diameter	550 mm
Energy Efficiency Class	C
Capacity	150 l
Boiler Tank Material	Stainless Steel (RVS)
With Thermometer	Yes
With Manometer	No
Water Heating Energy Efficiency (Nwh)	63 %
Capacity Profile	L
Nominal Diameter Drain Connection	1 1/2" (40)
Nominal Diameter Primary	3/4" (20)
Nominal Diameter Hot Water	3/4" (20)
Tilting Height	1243.272 mm
Nominal Diameter Cold Water	3/4" (20)
Housing Material	Steel
Double Separation	No
With Cleaning Opening	Yes
Protective Anode	No
Wall Mounting	No
Outer Pipe Diameter Cold Water	20 mm
Outer Pipe Diameter Hot Water	20 mm
Tank Surface Protection	Untreated
Thread Size Primary	3/4"
With Pressure Relief Valve	No
Heat Transfer	Spiral
Cold Water Connection	Internal Thread Cylindrical BSPP-G (ISO 228-1)
Hot Water Connection	Internal Thread Cylindrical BSPP-G (ISO 228-1)
Outer Pipe Diameter Circulation Line	20 mm
Circulation Line Connection	Internal Thread Cylindrical BSPP-G (ISO 228-1)
Outer Pipe Diameter Drain Connection	40 mm
Drain Connection	Internal Thread Cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
Vertical Installation	Yes
Max. Operating Pressure Primary	8 bar
Max. Operating Pressure Secondary	8 bar
Primary Connection	Internal Thread Cylindrical BSPP-G (ISO 228-1)
Outer Pipe Diameter Primary	20 mm
Thread Size Cold Water Connection	3/4"
Thread Size Hot Water Connection	3/4"
Nominal Diameter Circulation Line	3/4" (20)
Maximum Transferable Capacity 80/10-45	19 kW
