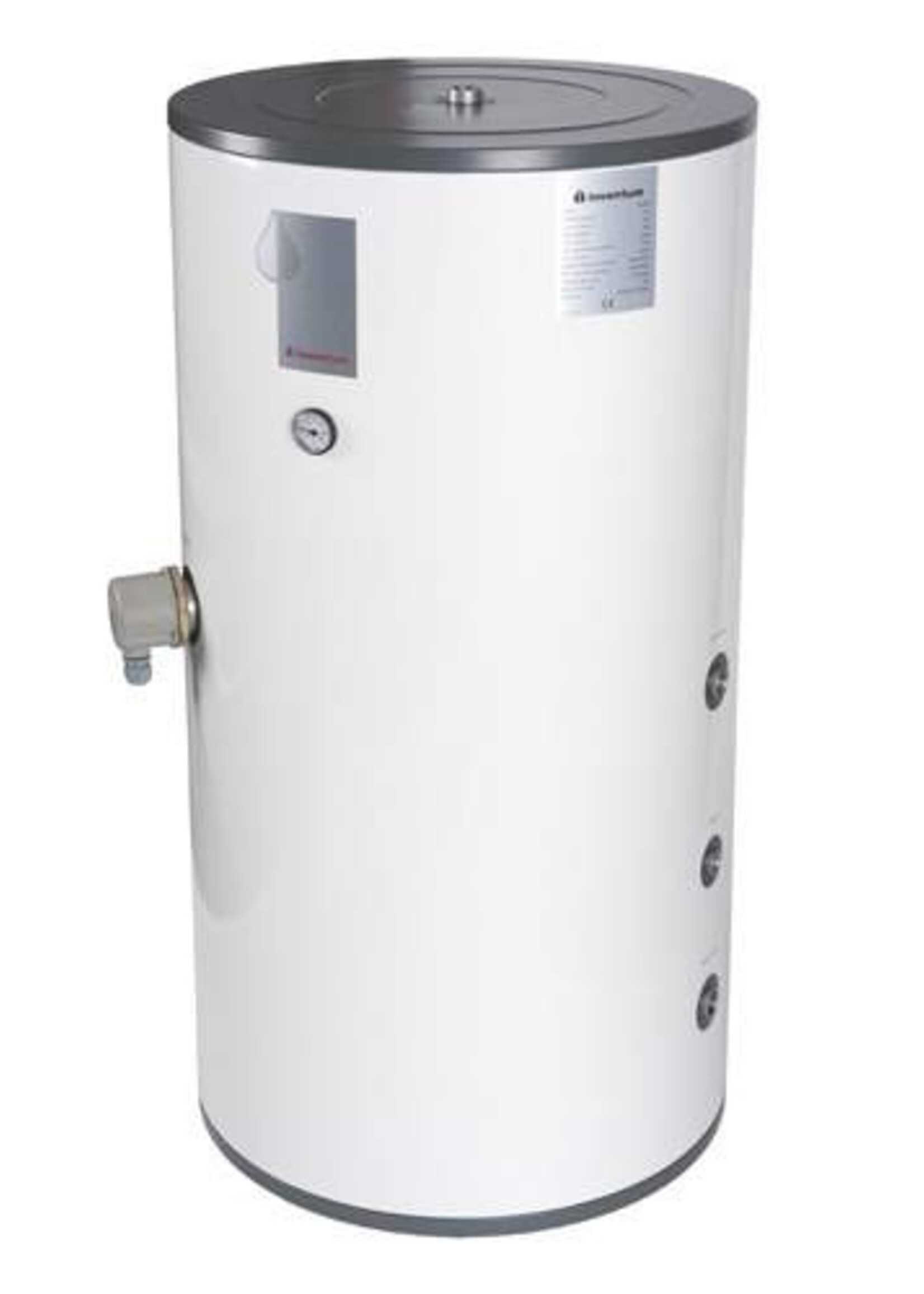

Inventum MAXTANK IB 300 Solo indirectly heated boiler, standing model,

Feature	Value
Brand	Inventum
Supplier Code	37010300
EAN Code	8716453009294
Discount Group	095
Width	620 mm
Height	1650 mm
Depth	620 mm
Diameter	620 mm
Energy Efficiency Class	C
Capacity	300 l
Boiler Tank Material	Stainless Steel (RVS)
With Thermometer	Yes
With Manometer	No
Water Heating Energy Efficiency (Nwh)	94 %
Capacity Profile	L
Nominal Diameter Drain Connection	1 1/2" (40)
Nominal Diameter Primary	1" (25)
Nominal Diameter Hot Water	1" (25)
Tilting Height	1762.64 mm
Nominal Diameter Cold Water	1" (25)
Housing Material	Steel
Double Separation	No
With Cleaning Opening	Yes
Protective Anode	No
Wall Mounting	No
Outer Pipe Diameter Cold Water	25 mm
Outer Pipe Diameter Hot Water	25 mm
Tank Surface Protection	Untreated
Thread Size Primary	1"
With Pressure Relief Valve	No
Heat Transfer	Spiral
Cold Water Connection	Internal Thread Cylindrical BSPP-G (ISO 228-1)
Hot Water Connection	Internal Thread Cylindrical BSPP-G (ISO 228-1)
Outer Pipe Diameter Circulation Line	25 mm
Circulation Line Connection	Internal Thread Cylindrical BSPP-G (ISO 228-1)
Outer Pipe Diameter Drain Connection	40 mm
Drain Connection	Internal Thread Cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
Vertical Installation	Yes
Max. Operating Pressure Primary	8 bar
Max. Operating Pressure Secondary	8 bar
Primary Connection	Internal Thread Cylindrical BSPP-G (ISO 228-1)
Outer Pipe Diameter Primary	25 mm
Thread Size Cold Water Connection	1"
Thread Size Hot Water Connection	1"
Nominal Diameter Circulation Line	1" (25)
Maximum Transferable Capacity 80/10-45	44 kW
