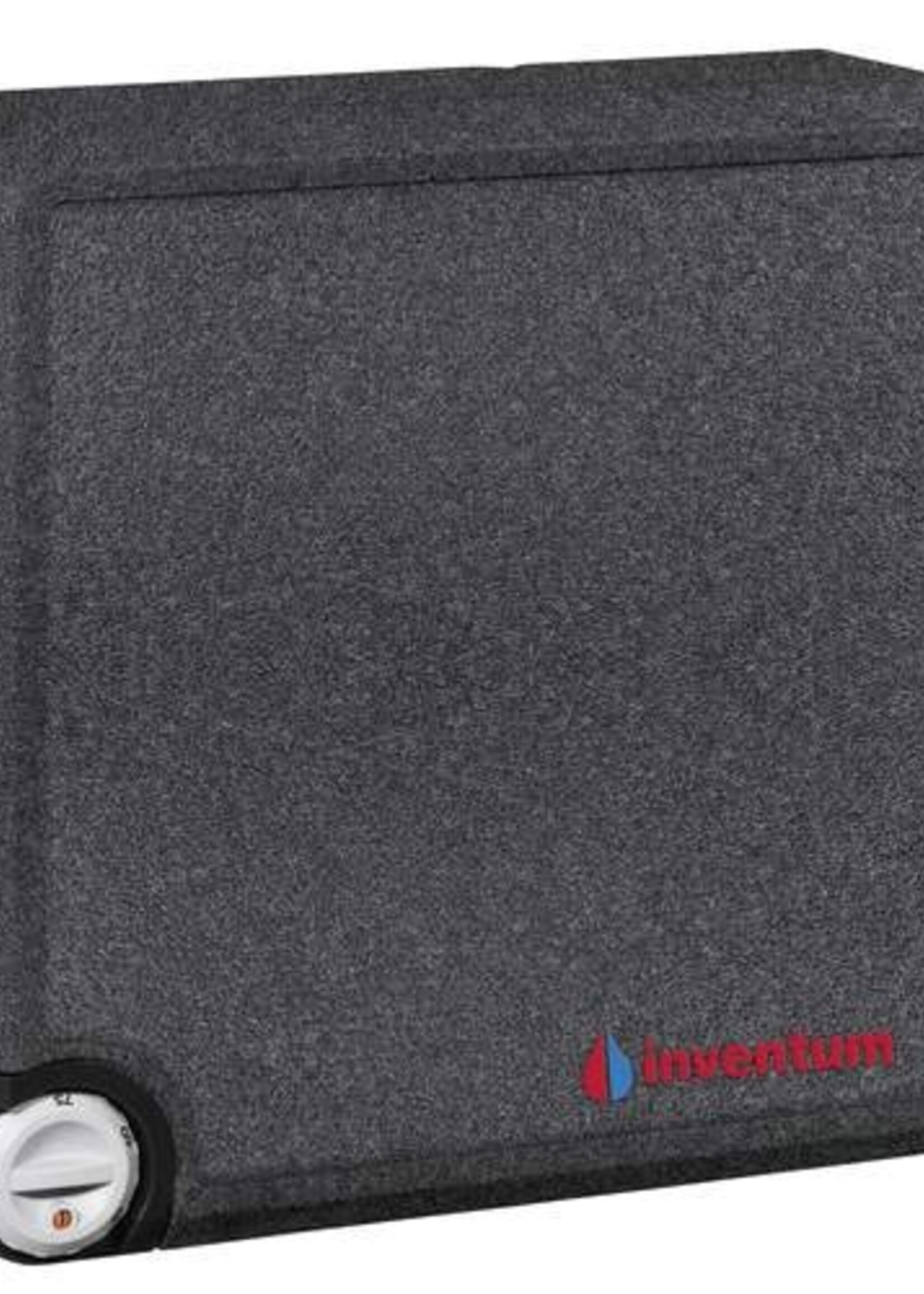

Inventum Modesto Q10 Hotfill skirting board boiler 10 liters 400 Watt

Specifications:

Feature	Value
Brand	Inventum
Supplier Code	40221004
EAN Code	8716453007672
Discount Group	075
Width	460 mm
Height	143 mm
Depth	460 mm
Nominal Power	0.4 kW
With Tap/Mixing Valve	No
Diameter	0 mm
Tank Volume	10 l
Energy Efficiency Class	A
Temperature Limitation	Yes
Material of Boiler Tank	Copper
With Thermometer	No
Connection Voltage	230 V
With Temperature Indicator	No
Frequency	50 Hz
Protection Class (IP)	IPX4
Connection Voltage Range	207 - 253 V
Horizontal Installation	Yes
Energy Efficiency of Water Heating (Nwh)	35.2 %
Capacity Profile	XXS
Nominal Diameter of Drain Connection	Other
Nominal Diameter of Hot Water	1/2" (15)
Boiler Quality Class	Other
Nominal Diameter of Cold Water	Other
KIWA Certification	No
Material of Jacket	Plastic
Heating Time from 10 °C to 65 °C	104 min
With Cleaning Opening	No
Protection Anode	No
Wall Installation	No
Max. Operating Pressure	8 bar
External Pipe Diameter of Cold Water	10 mm
External Pipe Diameter of Hot Water	15 mm
Low-Pressure Version	No
Surface Protection of Tank	Copper Lining
With Circulation Connection	No
With Pressure Reducing Valve	No
Applicable for Normal Water Pressure	Yes
Hot Water Connection	Internal Thread
External Pipe Diameter of Circulation Pipe	0 mm
Circulation Pipe Connection	Other
External Pipe Diameter of Drain Connection	0 mm
Drain Connection	Other
Vertical Installation	Yes
Thread Size for Cold Water	1/2" (15)
Duo Version	No
Design	Undercounter
Max. Allowed Operating Pressure	12 bar
Three-Phase Version	No
Hot Fill	Yes
With Night-Time Flow Control	No
Nominal Diameter of Circulation Pipe	Other
Suitable for Boiling Water	No
With Water Cooler	No
Plinth Boiler	Yes
