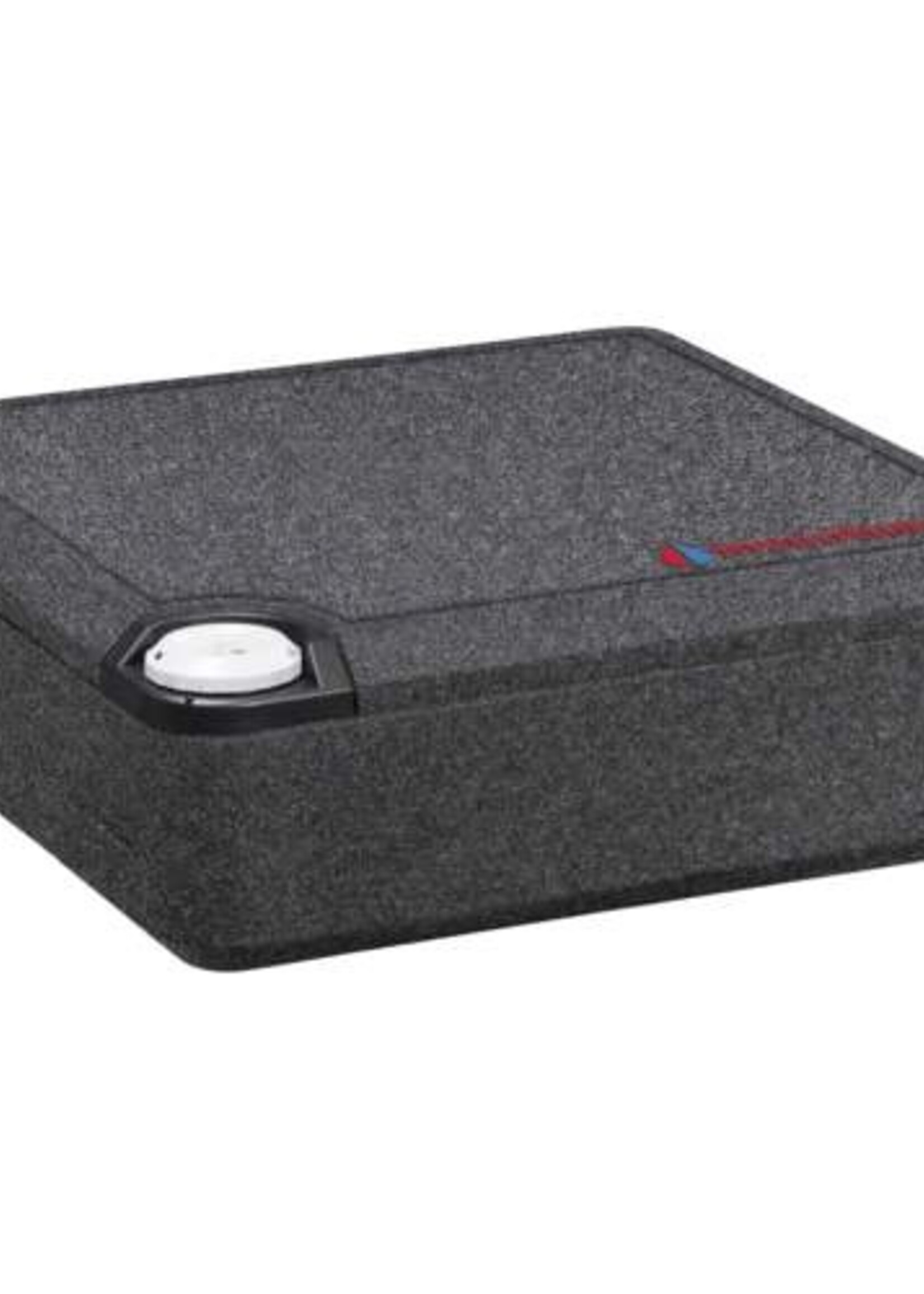

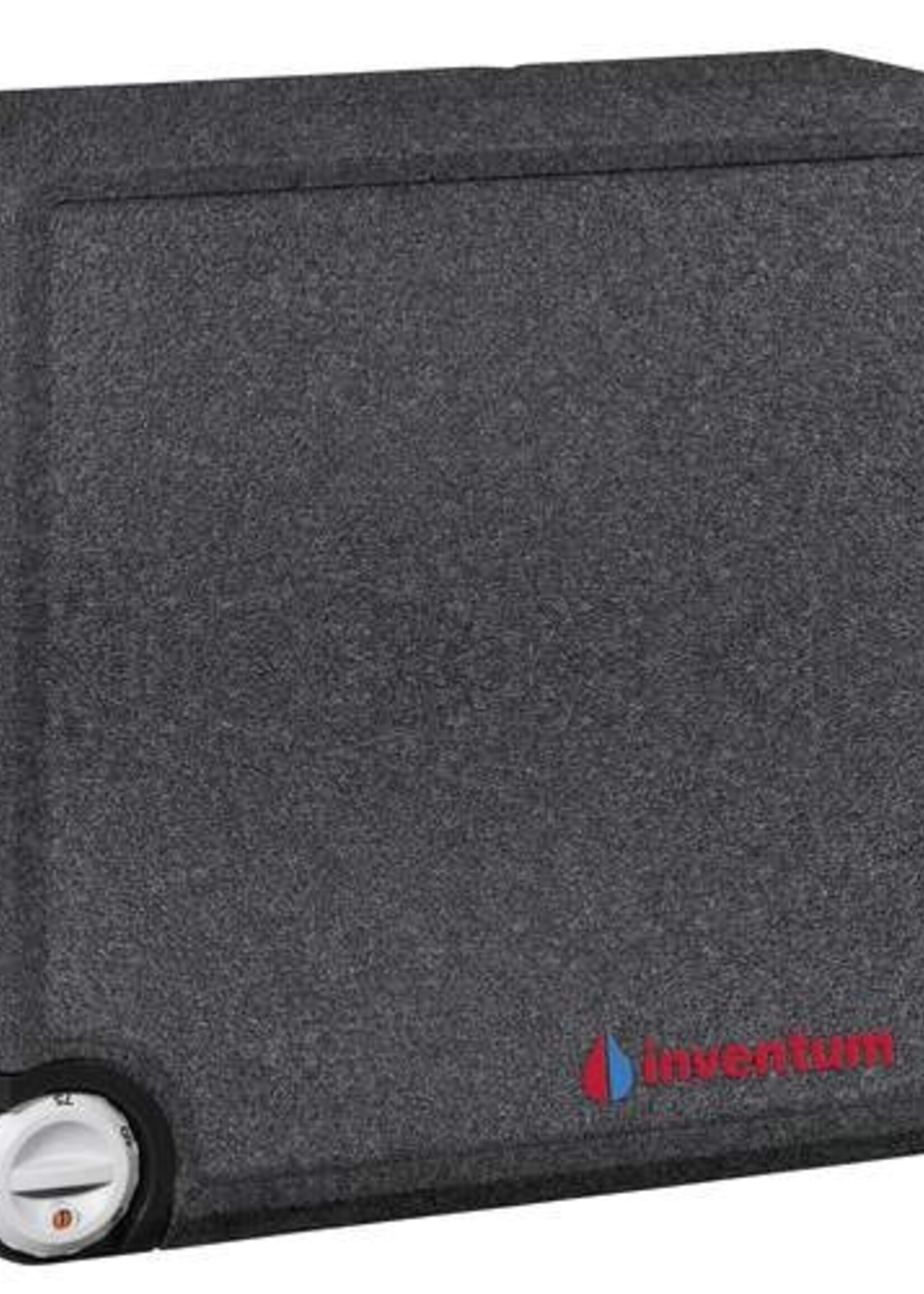

Inventum Modesto Q10 plinth boiler 10 liters 2000 Watt 230V

This 10-liter Modesto Q10 kitchen boiler has a compact square shape, allowing it to fit easily behind any kitchen kickboard. The boiler is delivered without connection materials. Therefore, be sure to order the Q-Fix Boiler Connection Set and the Q-Switch Distribution Box separately.

Specifications

Feature	Value
Brand	Inventum
Supplier Code	40221020
EAN Code	8716453007689
Discount Group	075
Width	460 mm
Height	143 mm
Depth	460 mm
Nominal Power	2 kW
With Tap/Mixer Tap	No
Diameter	0 mm
Tank Volume	10 l
Energy Efficiency Class	A
Temperature Limitation	Yes
Boiler Tank Material	Copper
With Thermometer	No
Connection Voltage	230 V
With Temperature Indicator	No
Frequency	50 Hz
Protection Class (IP)	IPX4
Connection Voltage Range	207 - 253 V
Horizontal Placement	Yes
Water Heating Energy Efficiency (Nwh)	35.2%
Capacity Profile	XXS
Nominal Drain Connection Diameter	Other
Nominal Hot Water Connection Diameter	1/2" (15)
Boiler Quality Class	Other
Nominal Cold Water Connection Diameter	Other
KIWA Certificate	No
Outer Shell Material	Plastic
Heating Time from 10°C to 65°C	20 min
With Cleaning Opening	No
Protection Anode	No
Wall Mountable	No
Max Operating Pressure	8 bar
Outer Pipe Diameter Cold Water Connection	10 mm
Outer Pipe Diameter Hot Water Connection	15 mm
Low Pressure Model	No
Surface Protection of the Tank	Copper Lining
With Circulation Connection	No
With Pressure Reducing Valve	No
Suitable for Normal Water Pressure	Yes
Outer Pipe Diameter Circulation Line	0 mm
Connection Circulation Line	Other
Outer Pipe Diameter Drain Connection	0 mm
Drain Connection	Other
Vertical Placement	Yes
Thread Size Cold Water Connection	1/2" (15)
Duo Version	No
Type of Installation	Undercounter
Max Allowable Operating Pressure	12 bar
Three-Phase Model	No
Hot Fill	No
With Night-Time Switch	No
Nominal Diameter Circulation Line	Other
Suitable for Boiling Water	No
With Water Cooler	No
Kickboard Boiler	Yes
