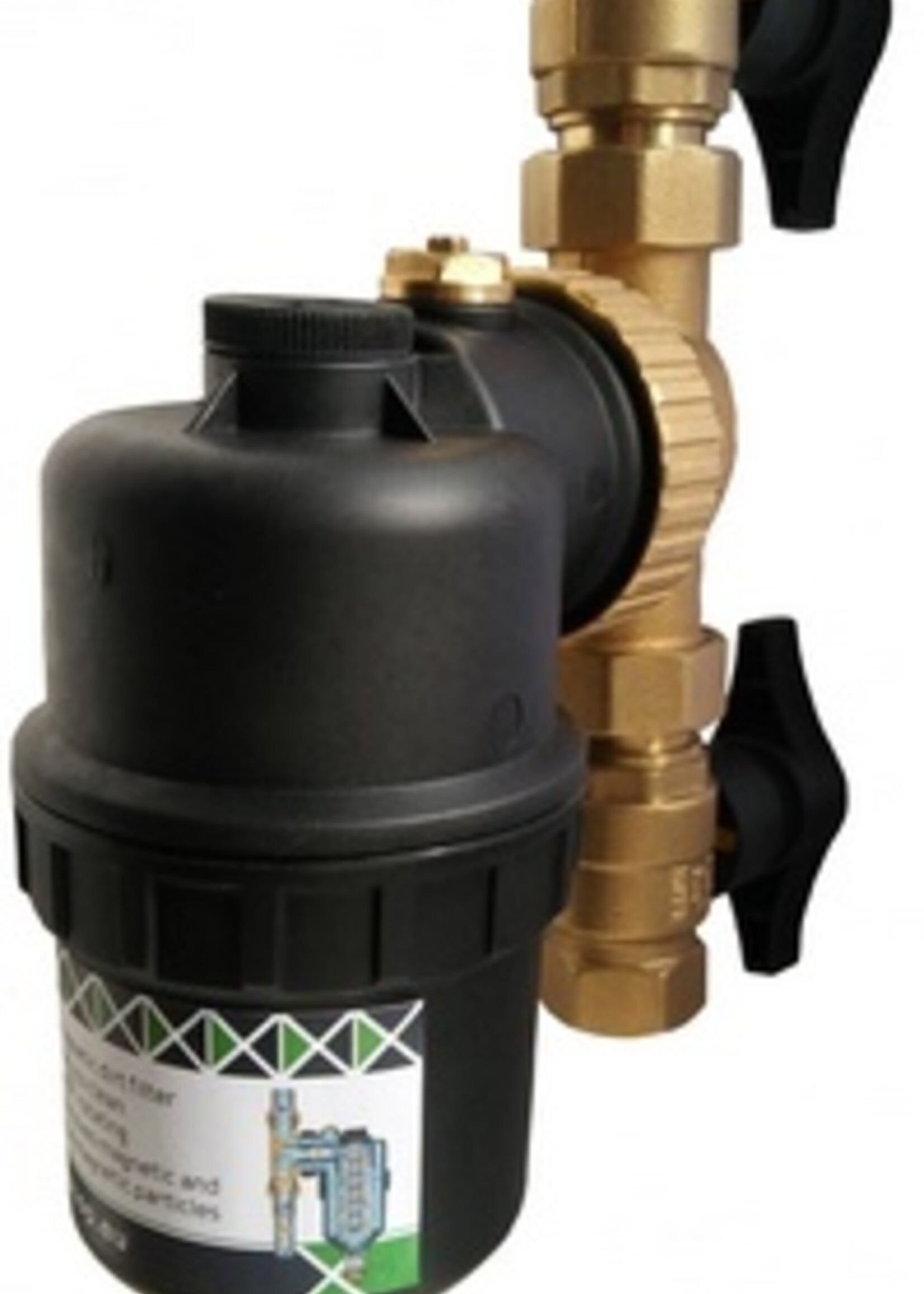

MAGNETIC FILTER 22 mm + taps

dirt separator with magnet
for horizontal, vertical and diagonal pipes
polymer body
equipped with a drain tap
available in 3/4", 4/4", 22 mm and 28 mm connection
Pmax. 4000 kPa
t° min - max: 0°C - 90°C
magnet: 11000 gauss
Filter element with variable mesh size made of plastic. The minimum mesh size is 2 x 2 mm
Pot de décantation magnétique
Mounting and position horizontal or diagonal
Corps en polymer
Equipé d'une de vidange
Disponible and raccordement 3/4", 4/4", 22 mm et 28 mm
Pmax. 4000 kPa
t° min - max: 0°C - 90°C
Aimant: 11000 gauss
Element filtrant à mailles variables en plastique. The minimal waist of the mailles is 2 x 2 mm
magnetic Schlammabscheider
for horizontal, vertical and diagonal mounting
Polymer housing
Assembled with an abrasive vent
Lieferbar with 3/4", 1", 22 mm und 28 mm Anschluss.
Betriebspressure: max. 40 bar
Betriebtemperatur: 0° - 90°C
Magnet: 11000 GS
Filter element with variable material from plastic. Die Mindestmaschenweite concerns 2 x 2 mm
dirt separator with magnet
for horizontal, vertical and diagonal pipes
polymer body
equipped with a drain tap
available in 3/4", 4/4", 22 mm and 28 mm connection
Pmax. 4000 kPa
t° min - max: 0°C - 90°C
magnet: 11000 gauss
Filter element with variable mesh size made of plastic. The minimum mesh size is 2 x 2 mm
