  • Nibe Nibe PUB2 indirect-fired boiler standing model 160 liters 30 kW with single separation

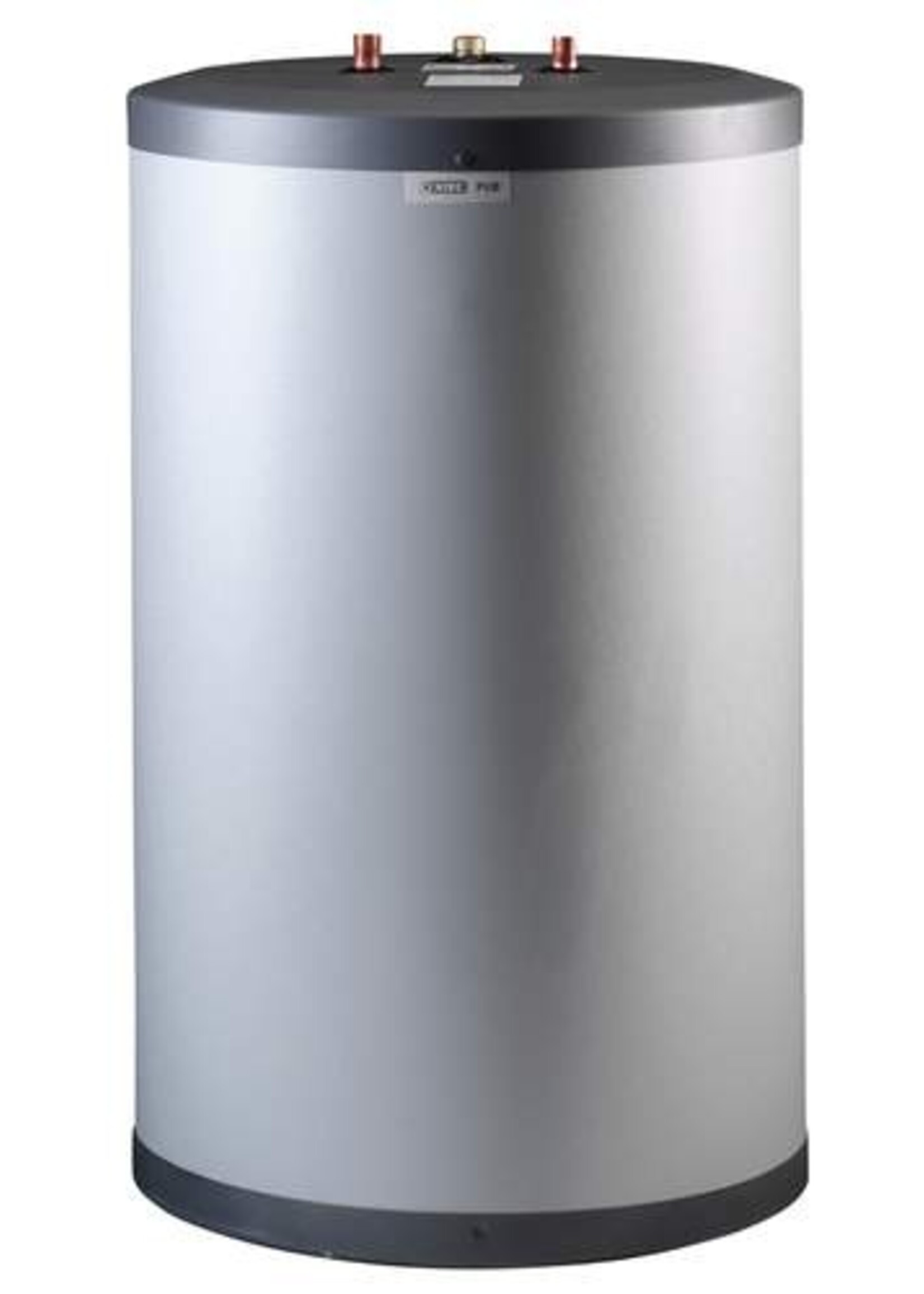

Nibe PUB2 indirect-fired boiler standing model 160 liters 30 kW with single separation

Article number: 0850110
€1.731,55
Incl. tax

The rating of this product is 0 out of 5

(0)
In stock (Delivery timeframe:Free home delivery within 1 to 2 business days.)

The NIBE PUB series includes four indirectly heated spiral boilers for universal applications. They can be connected to a gas-fired heating boiler, but in some situations, they can also be used with a heat pump. With capacities ranging from 160 to 500 liters, NIBE PUB boilers always provide an appropriate amount of hot water, for example, in a large house or in a centrally located hot water system for an apartment complex.

The NIBE PUB features a steel boiler tank with a corrosion-resistant copper interior lining, and the cylindrical boiler is equipped with a copper heating spiral. The high-quality insulation ensures minimal heat loss. For the largest model – the NIBE PUB 500 – the insulation is removable, making the boiler easy to handle and install.

Advantages:

Universally Applicable – Offers the right boiler size for many hot water systems.
Copper Lining – Provides high-quality and hygienic protection against corrosion.
Widely Applicable – Also suitable for systems with a ring pipe.


Technical Specifications

Feature Value
Brand NIBE
Supplier Code 087400
EAN Code 7331421322307
Discount Group 085
Width 600 mm
Height 1010 mm
Depth 600 mm
Diameter 600 mm
Energy Efficiency Class B
Capacity 160 l
Boiler Tank Material Copper
With Thermometer No
With Manometer No
Nominal Diameter Drain Outlet 1/2" (15)
Outer Casing Material Plastic
Double Separation No
With Cleaning Opening No
With Protective Anode No
Wall Mounting Possible No
Outer Pipe Diameter Cold Water 22 mm
Outer Pipe Diameter Hot Water 22 mm
Tank Surface Protection Untreated
With Pressure Reducing Valve No
Heat Transfer Spiral
Vertical Installation Yes
Max. Operating Pressure Primary 20 bar
Max. Operating Pressure Secondary 10 bar
Outer Pipe Diameter Primary 22 mm
Thread Size Drain Outlet 1/2"
Max. Transferable Capacity (80/10-45°C) 26 kW
