  • Nibe Nibe PUB2 indirect-fired boiler standing model 500 liters 45 kW with single separation

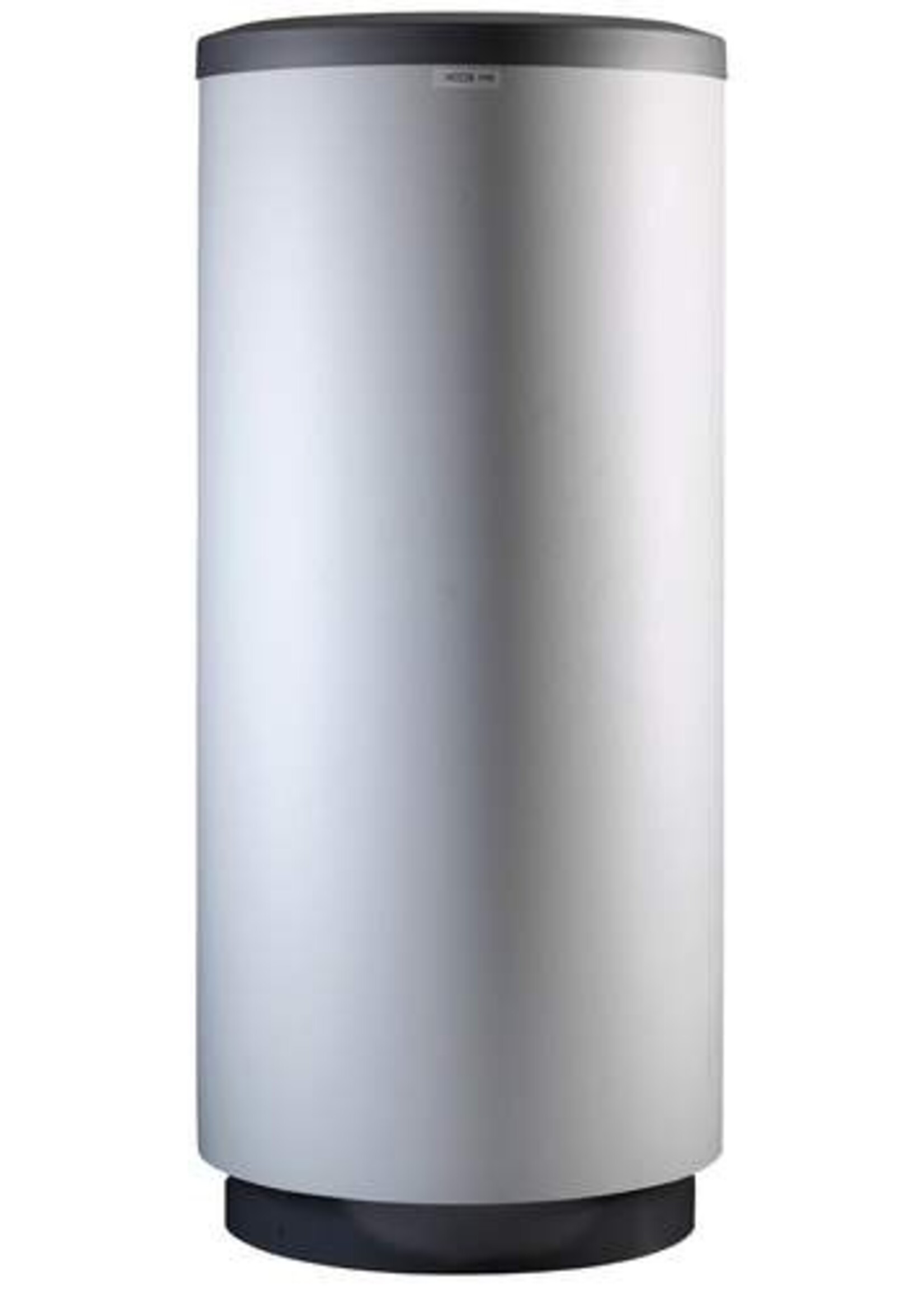

Nibe PUB2 indirect-fired boiler standing model 500 liters 45 kW with single separation

Article number: 0850130
€3.595,00
Incl. tax

The rating of this product is 0 out of 5

(0)
In stock (Delivery timeframe:2 - 7 days)

The NIBE PUB series includes four indirectly heated spiral boilers for universal applications. They can be connected to a gas-fired heating boiler, but in some situations, they can also be connected to a heat pump. With models ranging from 160 to 500 liters, the NIBE PUB boilers always ensure an adequate supply of hot water, for example, in a large home or in a centrally installed hot water system in an apartment complex.

The NIBE PUB features a steel boiler tank with a corrosion-resistant copper inner lining, and the cylindrical boiler is equipped with a copper heating coil. The high-quality insulation ensures minimal heat loss. In the largest model – the NIBE PUB 500 – the insulation is removable, allowing the boiler to be easily handled and installed.

Advantages:

Universally Applicable – Provides the right boiler size for many hot water systems.
Lined with Copper – For high-quality and hygienic protection against corrosion.
Widely Applicable – Also suitable for systems with a ring pipe installation.


Technical Specifications

Feature Value
Brand NIBE
Supplier Code 081086
EAN Code 7331421336953
Discount Group 085
Width 879 mm
Height 1780 mm
Depth 852 mm
Diameter 852 mm
Energy Efficiency Class C
Capacity 490 l
Boiler Tank Material Copper
With Thermometer No
With Manometer No
Nominal Diameter of Drainage Connection 1/2" (15)
Outer Shell Material Plastic
Double Separation No
With Cleaning Opening No
With Protection Anode No
Wall Mounting Possible No
External Pipe Diameter for Cold Water 35 mm
External Pipe Diameter for Hot Water 35 mm
Surface Protection of the Tank Untreated
With Pressure Reducing Valve No
Heat Transfer Spiral
Vertical Placement Yes
Max. Operating Pressure Primary 20 bar
Max. Operating Pressure Secondary 10 bar
External Pipe Diameter Primary 22 mm
Max. Transferable Capacity (80/10-45°C) 39 kW
