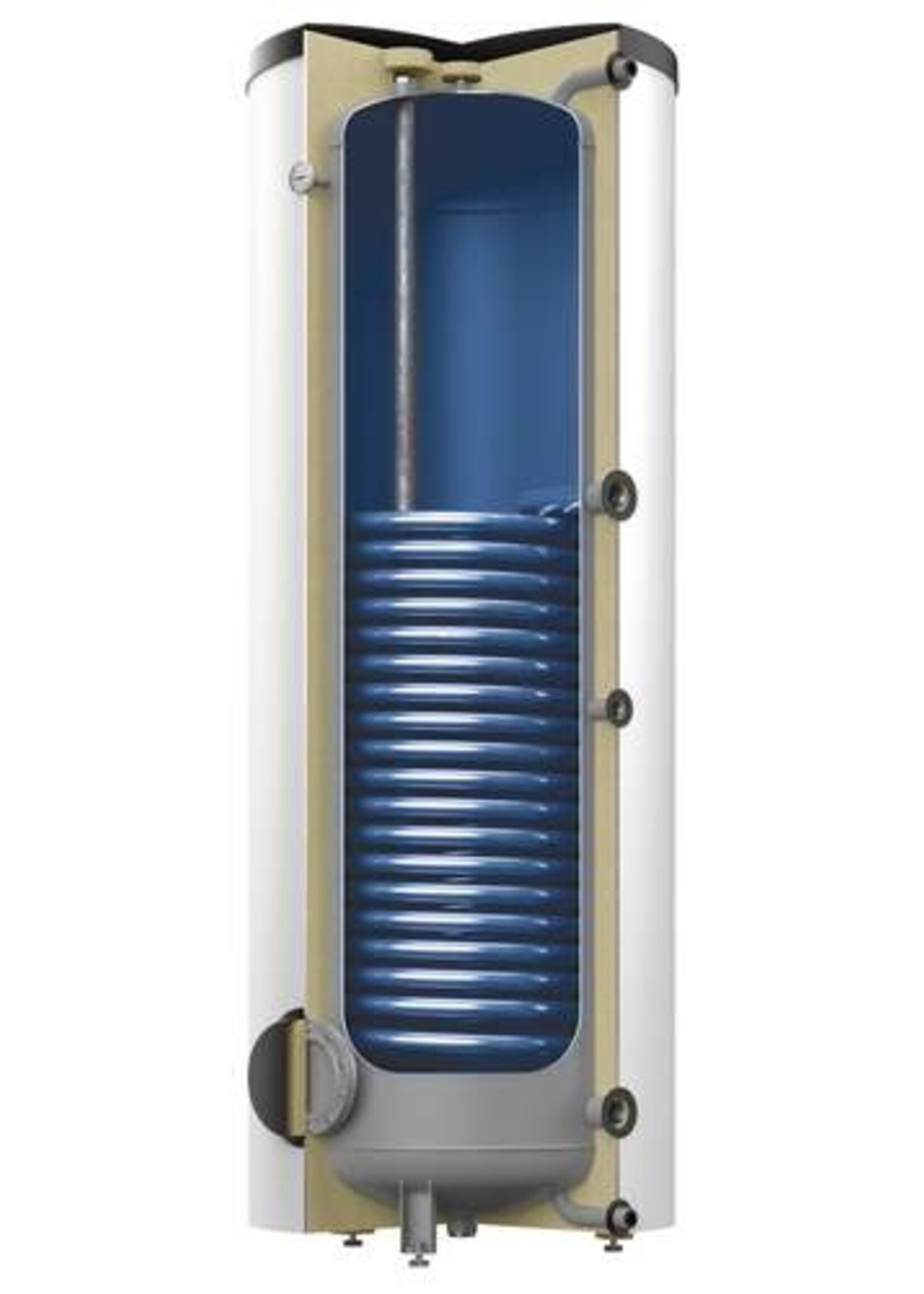

Reflex Storatherm Aqua Heat AH 400/1_C storage water heater with insul

Technical Specifications:

Feature	Value
Brand	Reflex
Supplier Code	7845600
EAN Code	4036705137297
Discount Group	093
Height	1631 mm
Depth	700 mm
Diameter	700 mm
Energy Efficiency Class	C
Capacity	380 l
Material of Boiler Tank	Steel
With Thermometer	Yes
With Manometer	No
Nominal Diameter Primary Connection	1 1/4" (32)
Nominal Diameter Hot Water Connection	1" (25)
Tilt Height	1713 mm
Nominal Diameter Cold Water Connection	1" (25)
Material of Jacket	Other
Double Separation	No
With Cleaning Opening	Yes
Protection Anode	Yes
Wall Mountable	No
Outer Pipe Diameter Cold Water Connection	33.7 mm
Outer Pipe Diameter Hot Water Connection	33.7 mm
With Pressure Reducing Valve	No
Cold Water Connection	Other
Hot Water Connection	Other
Outer Pipe Diameter Circulation Pipe	26.9 mm
Circulation Pipe Connection	Other
Vertical Placement	Yes
Max. Operating Pressure Primary	10 bar
Max. Operating Pressure Secondary	10 bar
Primary Connection	Other
Outer Pipe Diameter Primary Connection	42.4 mm
Nominal Diameter Circulation Pipe	3/4" (20)
Max. Transferable Capacity 80/10-45	106 kW
