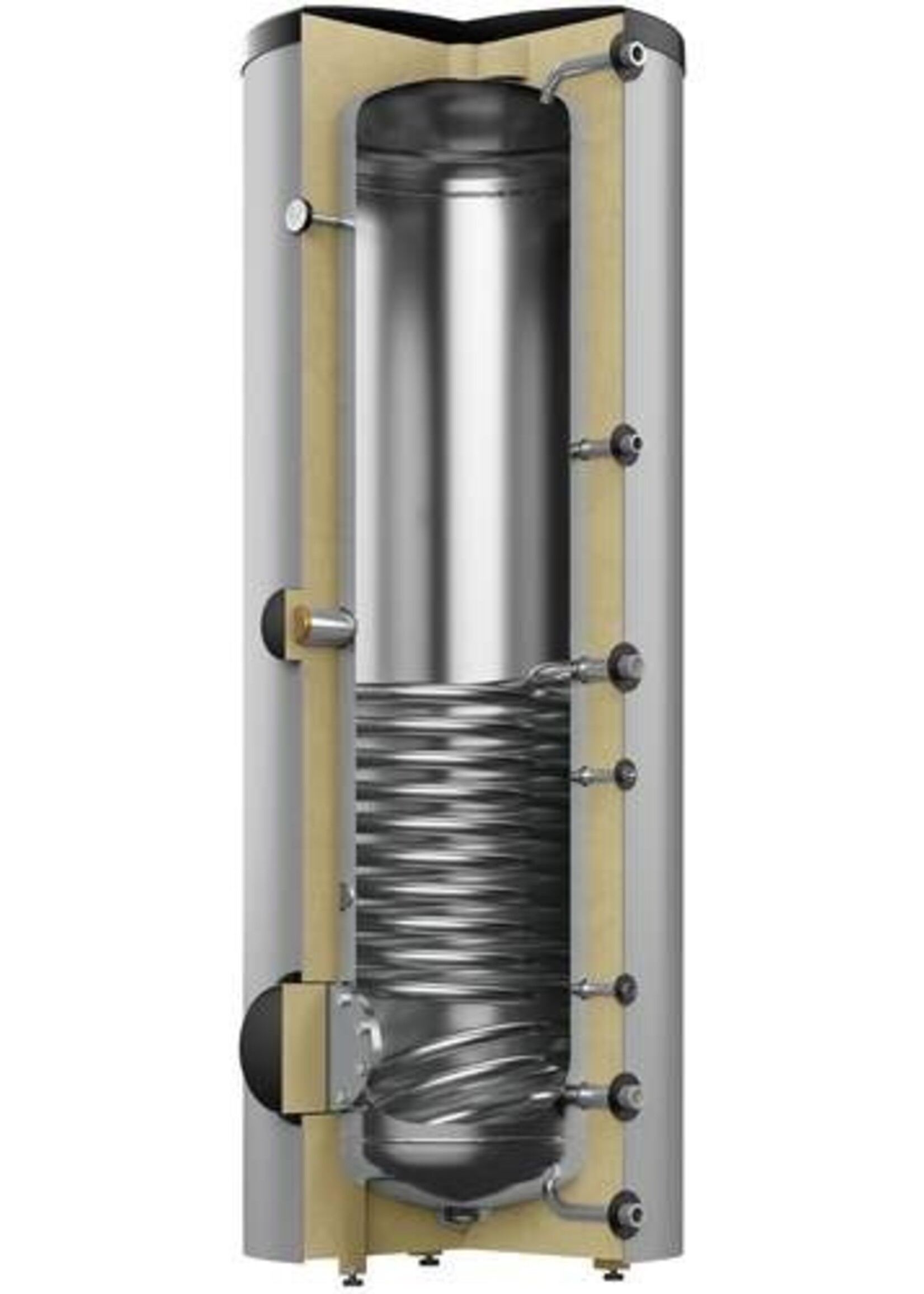

Reflex Storatherm Aqua Inox AL 500/1M water heater

Technical Specifications:

Feature	Value
Brand	Reflex
Supplier Code	7364500
EAN Code	4036705157431
Discount Group	093
Width	650 mm
Height	2000 mm
Depth	650 mm
Diameter	750 mm
Energy Efficiency Class	B
Volume	475 l
Material of Boiler Tank	Stainless Steel (RVS)
With Thermometer	Yes
With Pressure Gauge	No
Nominal Diameter Primary Connection	1" (25)
Nominal Diameter Hot Water Connection	1" (25)
Tilt Height	2066 mm
Nominal Diameter Cold Water Connection	1" (25)
Material of Outer Jacket	Other
Double Separation	No
With Cleaning Opening	Yes
Protection Anode	No
Wall Mounting	No
Outer Pipe Diameter Cold Water Connection	33.7 mm
Outer Pipe Diameter Hot Water Connection	33.7 mm
With Pressure Reducing Valve	No
Cold Water Connection	Other
Hot Water Connection	Other
Outer Pipe Diameter Circulation Line	26.9 mm
Circulation Line Connection	Other
Vertical Installation	Yes
Max. Operating Pressure Primary	10 bar
Max. Operating Pressure Secondary	10 bar
Primary Connection	Other
Outer Pipe Diameter Primary	33.7 mm
Nominal Diameter Circulation Line	3/4" (20)
Max. Transferable Capacity 80/10-45	70 kW
