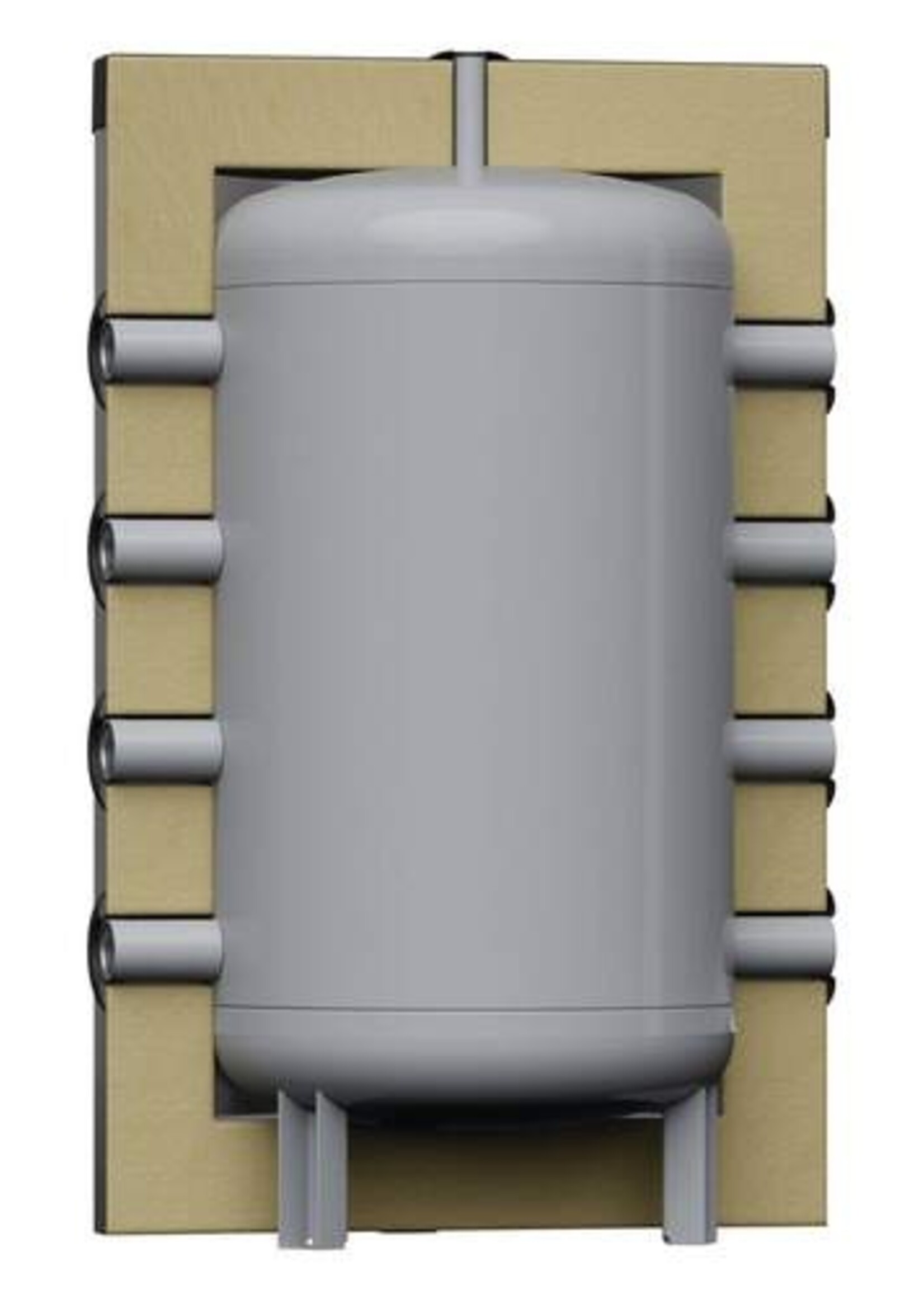

The Reflex Storatherm Heat Mini H is available in capacities ranging from 25 to 200 liters and offers the possibility of integrating other heat sources, such as screw-in electric heating elements.
Thanks to the 4, 6, or 8 connection points with 1 1/2" fittings, the buffer tank can function as a hydraulic decoupling point, improving the flexibility and performance of the system.
Reflex Storatherm Heat Mini buffer tanks are suitable for high-quality HVAC systems with a capacity of up to 20 kW, making them a perfect solution for residential buildings and small commercial applications.
The use of these buffer tanks in a heat pump system ensures stable operation of the heat pump and reduces malfunctions. By increasing the installation volume with Reflex buffer tanks, the number of start and stop cycles of the heat pump is reduced. The heat pump can run continuously for longer periods, leading to higher efficiency and less wear. In this way, both the performance and the lifespan of a heat pump are optimized.
Other Features:
- Suitable for systems up to 3 bar and a temperature range of 15 to 95 °C.
- Very quiet and generate minimal pressure loss.
- Space-saving design with wall mounting up to 50 liters, from 75 liters with feet.
- A temperature sensor is available for buffer tanks from 150 liters.
- Thanks to 1 1/2" connections, suitable for high flow rates.
- Insulated; up to 100 liters with removable EPP insulation, 150+ liters with removable fleece insulation.
- Fire protection class B2 according to DIN 4102-1 and EN 13501-1.
Technical Specifications
| Feature | 200 l Model |
|---|---|
| Brand | Reflex |
| Supplier Code | 7352570 |
| EAN Code | 4036705556425 |
| Mounting Type | Standing |
| Height | 1358 mm |
| Connection 1 | External Thread |
| Diameter | 680 mm |
| Capacity | 200 l |
| Max. Temperature | 95 °C |
| Insulation Material | Other |
| Diameter Without Insulation | 480 mm |
| Suitable for Central Heating | Yes |
| Suitable for Heat Pumps | Yes |
| With Temperature Sensor Connection | No |
| Energy Efficiency Class (812/2013/EU) | B |
| Tilt Height | 1375 mm |
| Casing Material | Other |
| Max. Operating Pressure | 3 bar |
| With Insulation | Yes |
| Connection Size 1 | 1 1/2" |
| Tank Material | Steel |
| With Immersion Tube | No |
