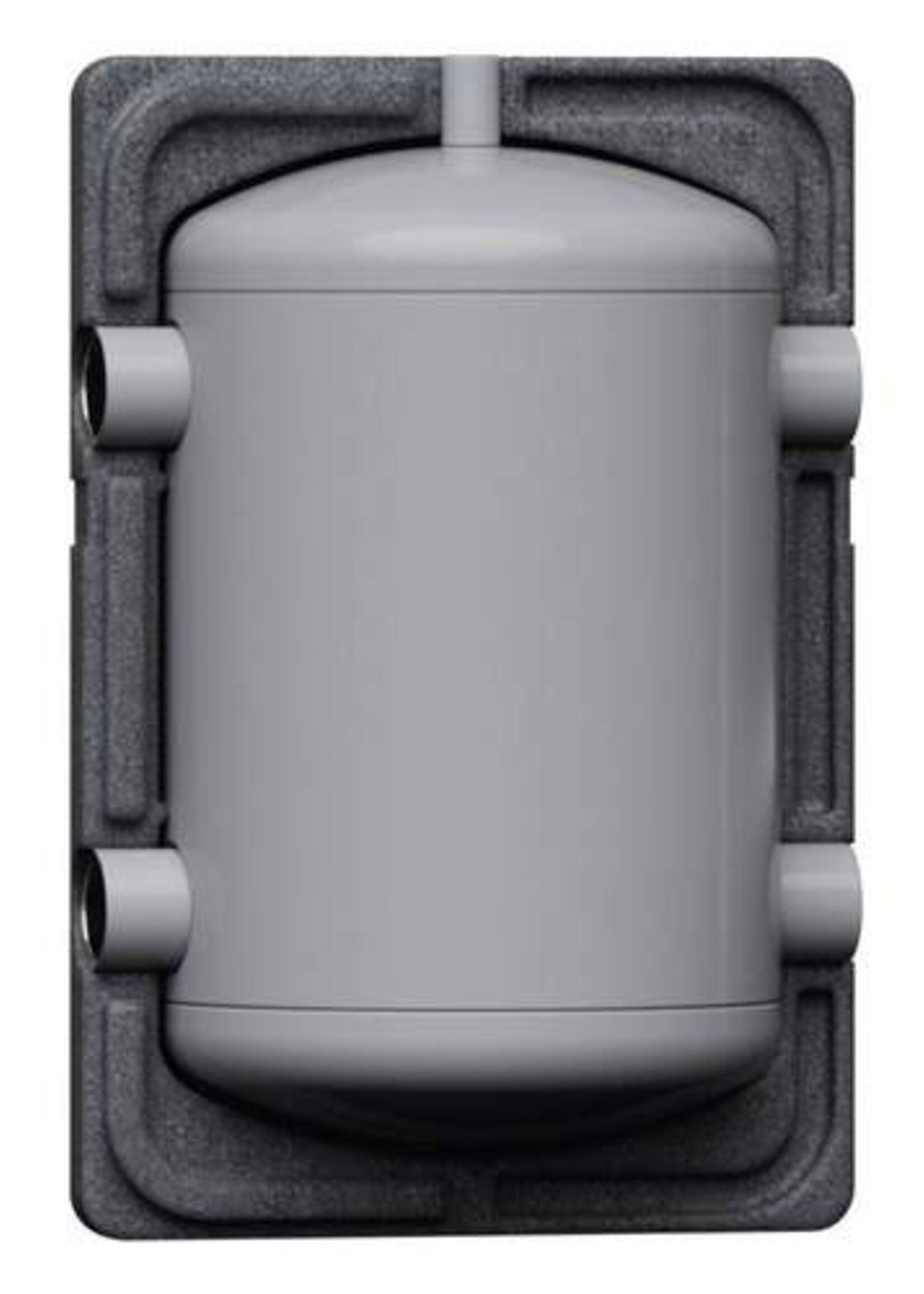

The Storatherm Heat Mini H is available in capacities ranging from 25 to 200 liters and offers the option to integrate additional heat sources, such as screw-in electric heating elements.

Thanks to the 4, 6, or 8 connections with 1 1/2" threading, the buffer tank can function as a hydraulic decoupling point, enhancing the flexibility and performance of the system.

Reflex Storatherm Heat Mini buffer tanks are suitable for high-quality HVAC systems with a capacity of up to 20 kW, making them a perfect solution for residential and small commercial applications.

Using these buffer tanks in a heat pump system ensures stable operation and reduces malfunctions. By increasing the installation volume with Reflex buffer tanks, the number of start-stop cycles of the heat pump is reduced. As a result, the heat pump can run continuously for longer periods, leading to higher efficiency and less wear and tear. This optimization improves both the performance and lifespan of the heat pump.

Additional Features:

• Suitable for systems up to 3 bar and a temperature range of 15 to 95 °C.
• Extremely quiet operation with minimal pressure loss.
• Space-saving design: wall-mounted up to 50 liters, from 75 liters onwards with feet.
• A temperature sensor is available for buffer tanks starting from 150 liters.
• Equipped with 1 1/2" connections for high flow rates.
• Insulated: up to 100 liters with removable EPP insulation, 150+ liters with removable fleece insulation.
• Fire protection class B2 according to DIN 4102-1 and EN 13501-1.

Technical Specifications
