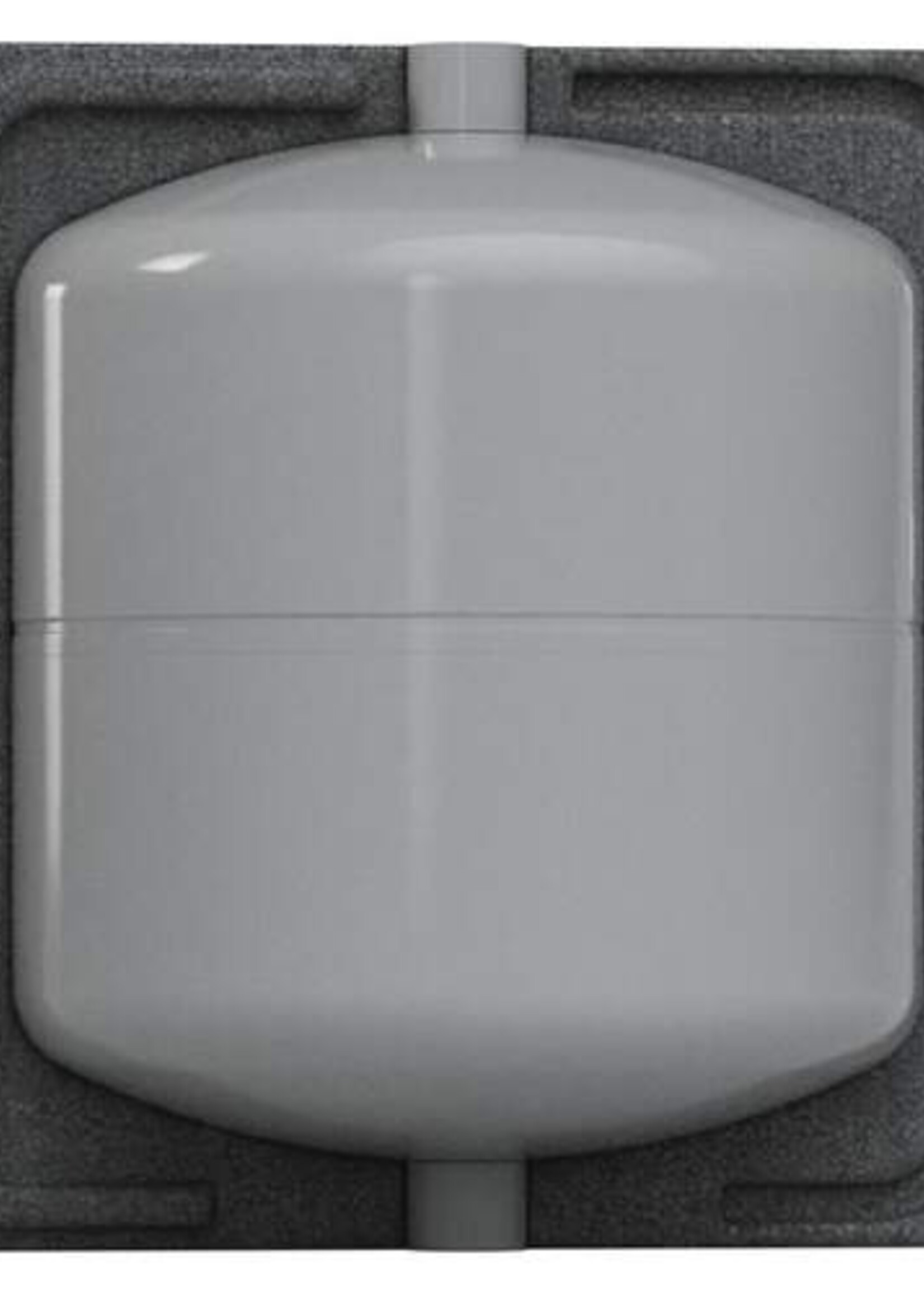

The Storatherm Heat Mini V is available in capacities ranging from 25 to 100 liters and features a 1 1/2" connection on both the top and bottom.

The Storatherm Heat Mini V buffer is installed in series on the return side and is also used for the defrost cycle. This means that during the defrost cycle, no direct water is taken from the system, but instead from the buffer tank. This increases the efficiency and reliability of the system.

Reflex Storatherm Heat Mini buffer tanks are suitable for high-quality HVAC systems with a capacity up to 20 kW, making them a perfect solution for residential and smaller commercial applications.

Using these buffer tanks in a heat pump installation ensures stable operation of the heat pump and reduces malfunctions. By increasing the installation volume with Reflex buffer tanks, the number of start-stop cycles of the heat pump is reduced. The heat pump can run for longer periods, leading to higher efficiency in use and less wear. This optimizes both the performance and lifespan of the heat pump.

Other Features:

• Suitable for systems up to 3 bar and a temperature range of 15 to 95 °C.
• Very quiet, generating almost no pressure loss.
• Space-saving design with wall mounting up to 50 liters, and feet for 75 liters and above.
• 1 1/2" connections for high flow rates.
• Insulated with removable EPP insulation.
• Fire protection class B2 according to DIN 4102-1 and EN 13501-1.
