The Elga Ace is the only heat pump on the market that operates with OpenTherm. This ensures that the boiler never produces more heat than necessary, leading to optimal use of the heat pump.

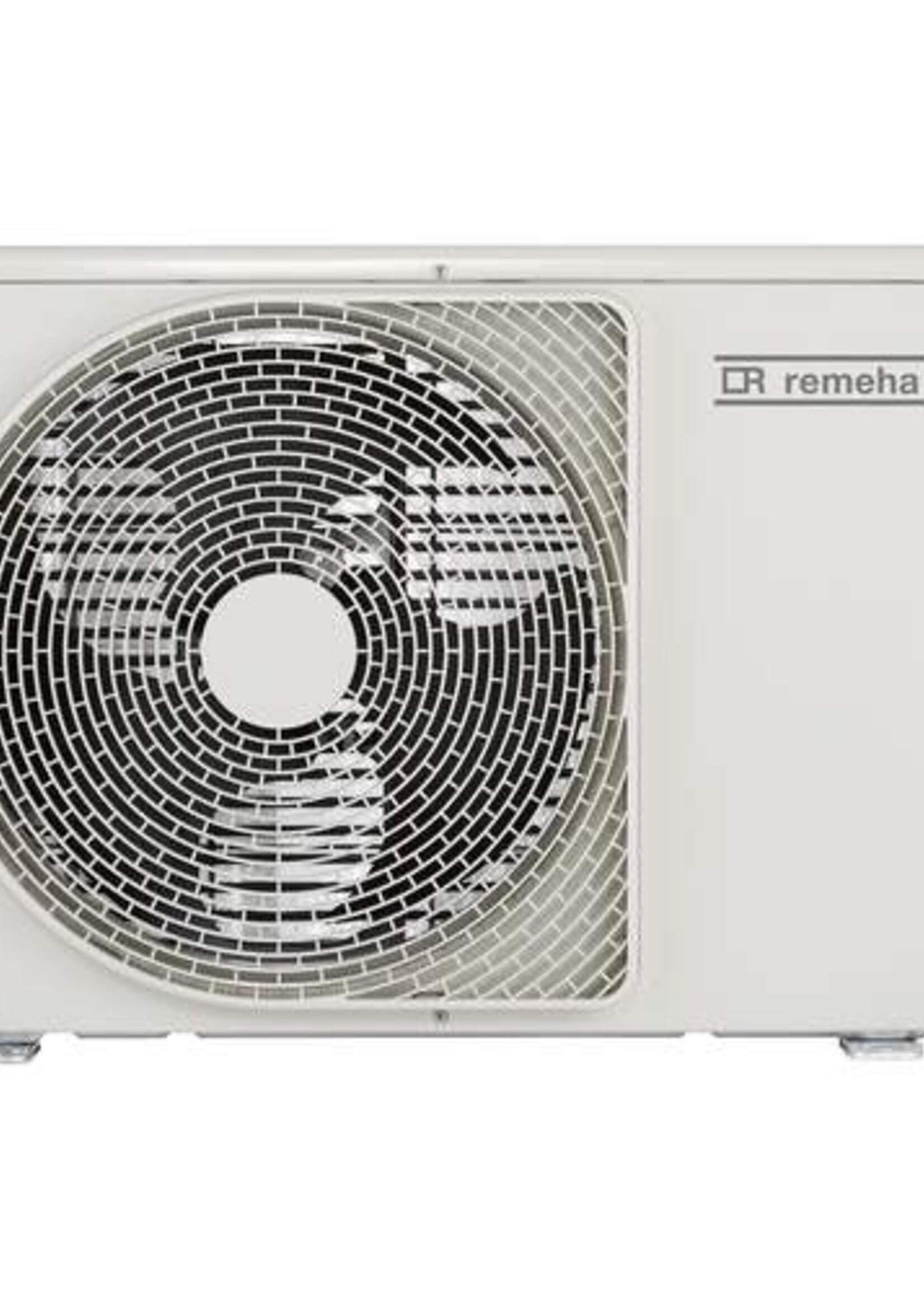

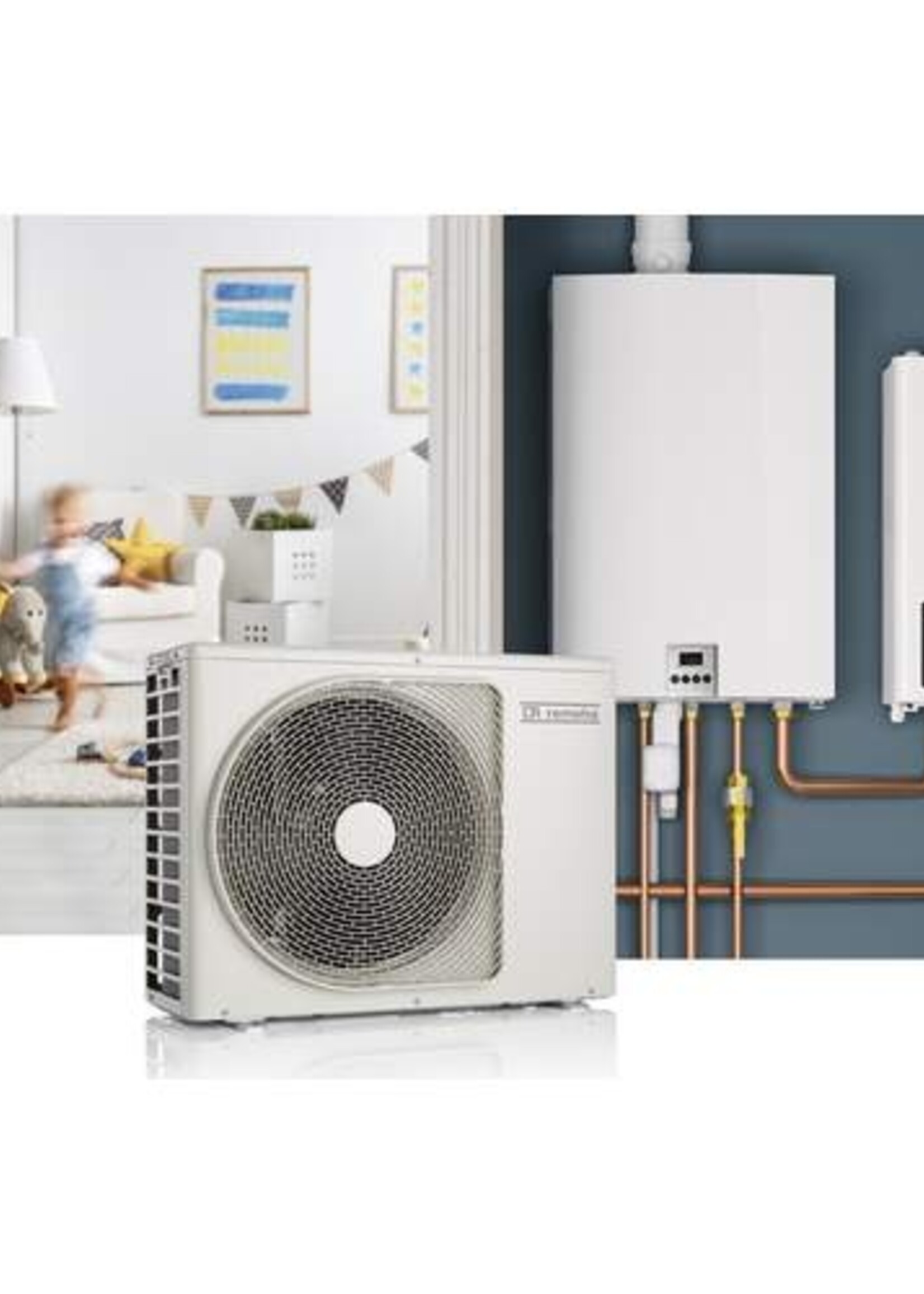

The Remeha Elga Ace is compatible with any boiler, making it the perfect solution for sustainable modernization of existing homes. A hybrid heat pump extracts heat from the outside air and uses it to heat the home. The boiler is only activated on extremely cold days or for heating domestic hot water. This allows you to save up to 25% on your energy bills.
Benefits
✔ Best price-performance ratio on the market
✔ Very compact
✔ Easy and quick to install
✔ High ISDE subsidy available
✔ Optimal control of the boiler and hybrid heat pump
✔ Suitable for almost any HR boiler and heat distribution system
✔ Installation in just one day without major renovations
✔ Space-saving due to compact design
✔ Increases property value
Technical Specifications
| Feature |
Value |
| Brand |
Remeha |
| Supplier Code |
7735613 |
| EAN Code |
3661238752917 |
| Discount Group |
034 |
| Model |
Outdoor & Indoor Unit |
| Width Indoor/Outdoor Unit |
268 mm / 849 mm |
| Height Indoor/Outdoor Unit |
637 mm / 550 mm |
| Depth Indoor/Outdoor Unit |
222 mm / 342 mm |
| Weight Indoor/Outdoor Unit |
17 kg / 39 kg |
| Control Type |
Weather-dependent control / External control |
| Solar Integration |
No |
| Max. Split Pipe Length |
20 m |
| Refrigerant Quantity |
0.98 kg |
| Remote Control Possible |
Yes |
| Connection Voltage |
230 V |
| Max. Heating Supply Temperature |
53 °C |
| Data Transfer via USB |
No |
| Suitable for Auxiliary Heating of Boiler |
Yes |
| Control for Boiler Management |
Yes |
| Control for Buffer Tank Management |
No |
| Adjustable Electric Heating Power |
No |
| External Control Required |
No |
| Modulation Percentage |
35 - 100 % |
| Externally Available System Pump Pressure at Nom. Flow |
8 bar |
| Data Transfer via Bus Connection |
Yes |
| Pump Type (System Pump) |
Energy-saving |
| Pump Voltage Type (System Pump) |
AC/DC |
| Pump Speed Control (System Pump) |
External |
| Pump Speed Control Type (System Pump) |
Automatically regulated by ΔT |
| Soft Starter Built-in |
Yes |
| Max. Power Consumption |
13 A |
| Suitable for Active Cooling |
Yes |
| Cooling Capacity at 35/18°C (EN 14511) |
4.69 kW |
| Energy Efficiency Class Space Heating |
A++ |
| COPd at Tj=+7°C |
4.54 |
| Refrigerant Type |
R32 |
| Global Warming Potential (GWP) |
675 |
| Protection Class (IP) Outdoor Unit |
IP24 |
| Heating Capacity at -7/35°C (EN 14511) |
4.44 kW |
| Nom. Suction Line Diameter |
3/8" |
| Swimming Pool Control |
No |
| Suitable for Domestic Hot Water |
No |
| Room Temperature Control |
Yes |
| Suitable for Swimming Pool Water Heating |
No |
| With Electric Heating Element |
No |
| Slow-blow Fuse |
16 A |
| Nom. Liquid Line Diameter |
1/4" |
| Max. Pipe Length |
20 m |
| Integrated Cooling |
Yes |
| Sound Power Level (Lwa) EN 12102 at 0/35°C |
53 dB(A) |
| Nom. Flow Rate Heat Distribution System |
0.7 l/s |
| Max. Operating Pressure Heat Distribution System |
3 bar |
| Heating Capacity at 7/35°C (EN 14511) |
6.14 kW |
| COP at 7/35°C (EN 14511) |
4.54 |
| Sound Pressure Level EN 12102 at 0/35°C at 1 m Distance |
37 dB(A) |
| Connection and Control of Multiple Heat Distribution Systems Possible |
No |
| Modulating Compressor |
Yes |
