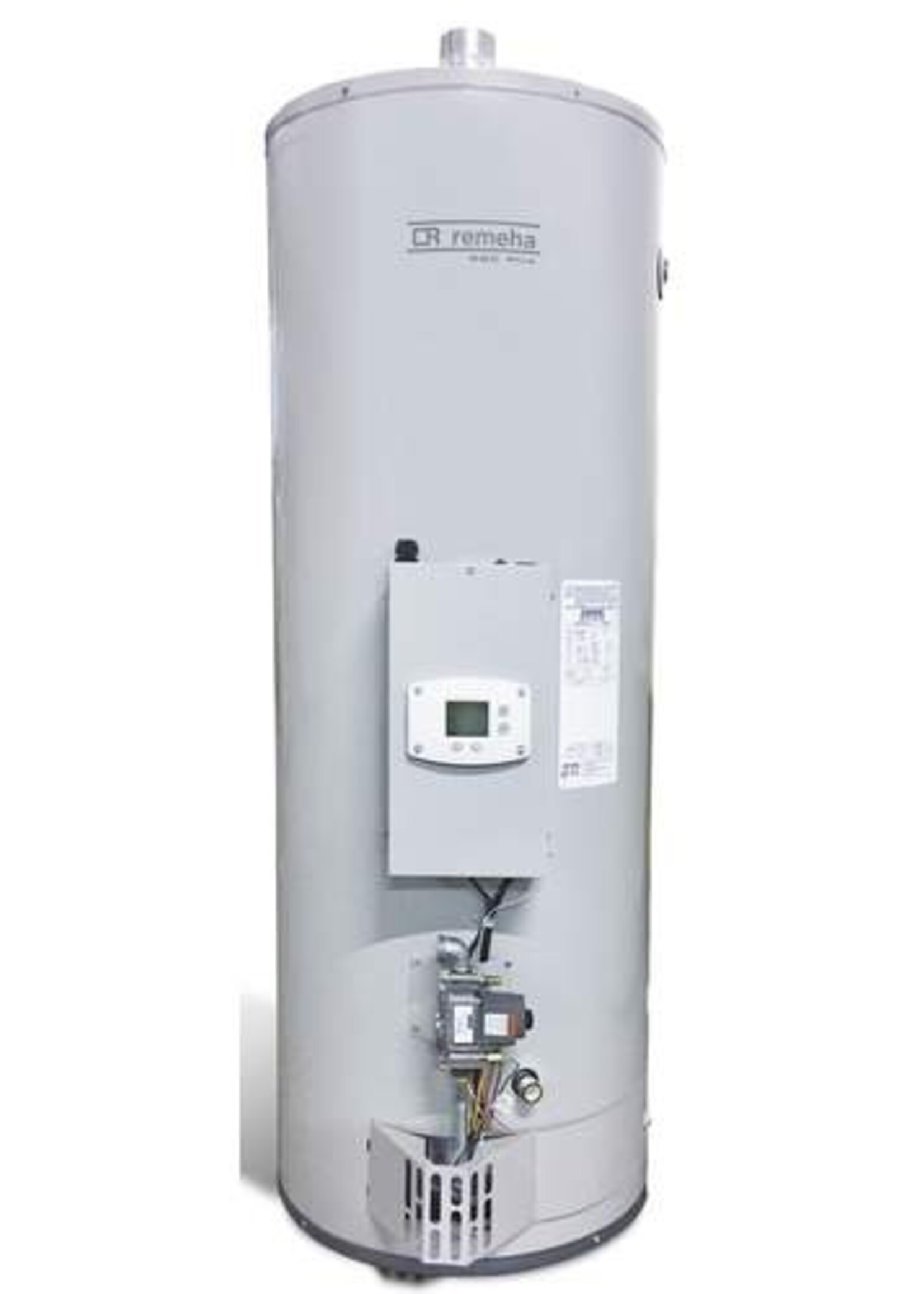

Remeha RSC-190 Plus boiler 190 liters

The RSC is suitable as a closed unit for small campsites, hair salons, toilet buildings in marinas, or dairy farms. The boiler has an adjustable temperature up to 82°C. Ignition is via electronic ignition. Magnesium sacrificial anode.

Features:

Double enamelled inner tank (Vitraglas®)
Legionella-safe due to thermostat control
SEN Plus also suitable for propane when combined with the conversion kit
Thermostat up to 82°C
Low-NOX burner

Specifications:

Feature	Value
Brand	Remeha
Supplier code	7702645
EAN code	8713809307769
Discount group	080
Height	1727 mm
Nominal power	9 kW
Diameter	559 mm
Energy efficiency class	B
Volume	179 l
Boiler tank material	Steel
With thermometer	No
Connection voltage	230 V
Closed version	Yes
Energy efficiency of water heating	67%
Capacity profile	XL
Nominal diameter hot water connection	3/4" (20)
Suitable for low-calorific natural gas	Standard factory setting
Suitable for high-calorific natural gas	Not suitable
Suitable for propane	Not suitable
Suitable for butane	Not suitable
Suitable for methane	Not suitable
Suitable for LPG	Not suitable
Suitable for hydrogen	Not suitable
Nominal diameter cold water connection	3/4" (20)
Gas certification VR/SV	No
Gastec QA	No
Enclosure material	Steel
Heat-up time from 10 °C - 65 °C	77 min
With cleaning opening	No
Pilot flame burner	No
Protection anode	No
Wall mounting	No
Maximum operating pressure	10.3 bar
Fuel connection	External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
Air supply connection	Push-in end
Nominal diameter air supply channel	125 mm
Flue gas outlet connection	Push-in end
Outer pipe diameter cold water	26.441 mm
Outer pipe diameter hot water	26.441 mm
Gas certification VR	No
Tank surface protection	Enamelled
Suitable for HBO	No
With pressure reducing valve	No
Hot water capacity at 40°C continuously	269 l/min
Cold water connection	External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
Hot water connection	External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
Vertical placement	Yes
Electronic ignition	No
Nominal diameter flue gas outlet	80 mm
With draft interrupter	No
With drainage option (connection)	No
Gas certification HR	No
Suitable for propane	No
Suitable for butane	No
Suitable for methane	No
Nominal diameter fuel connection	1/2" (15)
