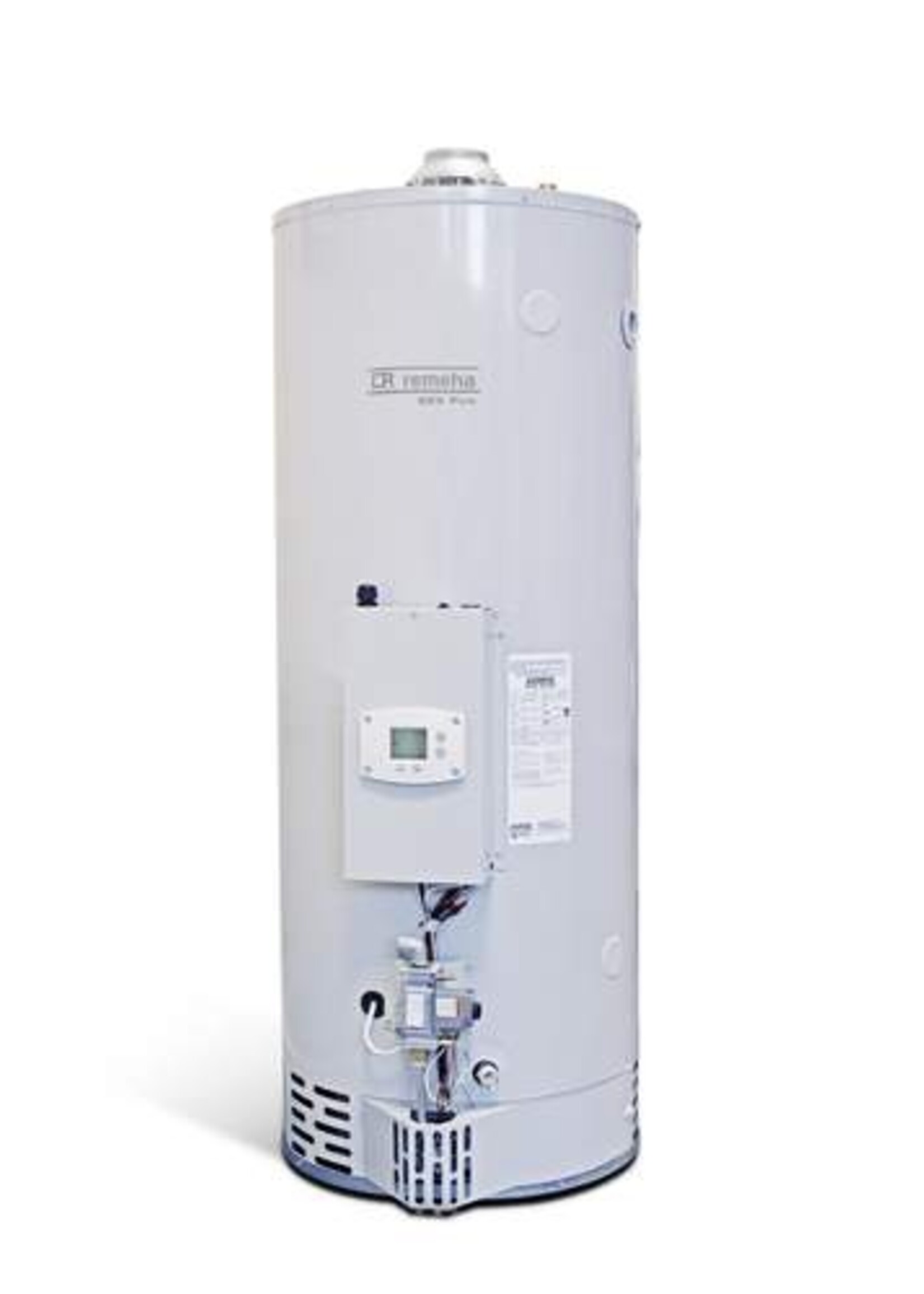

Remeha SEN-110 Plus boiler 110 liters

The SEN Plus is suitable for highly ventilated spaces, household use, small campsites, toilet buildings, marinas, sports facilities, or dairy farms. The boiler has an adjustable temperature of up to 82°C. Ignition is carried out via electronic ignition. Magnesium sacrificial anode.

Features

Double-enameled inner tank (Vitraglas®)
Legionella safety through thermostat control
SEN Plus also suitable for propane with conversion kit
Thermostat up to 82°C
Low-NOX burner

Specifications

Feature	Value
Brand	Remeha
Supplier Code	7702359
EAN Code	8713809307776
Discount Group	080
Height	1130 mm
Nominal Power	9.84 kW
Diameter	508 mm
Energy Efficiency Class	B
Capacity	105 l
Boiler Tank Material	Steel
With Thermometer	Yes
Closed Design	No
Capacity Profile	XL
Nominal Diameter Hot Water	3/4" (20)
Suitable for Low-Calorific Natural Gas	Factory setting
Suitable for High-Calorific Natural Gas	Factory setting
Suitable for Propane	With conversion kit (not included)
Suitable for Butane	Not suitable
Suitable for Methane	Not suitable
Suitable for LPG	Not suitable
Suitable for Hydrogen	Not suitable
Nominal Diameter Cold Water	3/4" (20)
Gaskeur VR/SV	No
Gastec QA	No
Casing Material	Steel
Heating Time from 10°C to 65°C	45.222 min
With Cleaning Opening	No
Pilot Burner	No
Protective Anode	Yes
Wall Mounting	No
Max. Operating Pressure	10.3 bar
Fuel Connection	External thread tapered BSPT-R (ISO 7-1 / EN 10226-1)
Air Supply Connection	None
Nominal Channel Diameter Air Supply	80 mm
Flue Gas Connection	Insert end
Outer Pipe Diameter Cold Water	26.441 mm
Outer Pipe Diameter Hot Water	26.441 mm
Gaskeur VR	No
Surface Protection Tank	Enameled
Suitable for HBO	No
With Pressure Reducing Valve	No
Hot Water Capacity at 40°C (continuous)	267 l/min
Cold Water Connection	External thread tapered BSPT-R (ISO 7-1 / EN 10226-1)
Hot Water Connection	External thread tapered BSPT-R (ISO 7-1 / EN 10226-1)
Vertical Installation	Yes
Electronic Ignition	Yes
Nominal Channel Diameter Flue Gas	80 mm
With Draft Interrupter	Yes
With Drain Option (Connection)	Yes
Gaskeur HR	No
Suitable for Propane	Yes
Suitable for Butane	No
Suitable for Methane	No
Nominal Fuel Diameter	1/2" (15)
