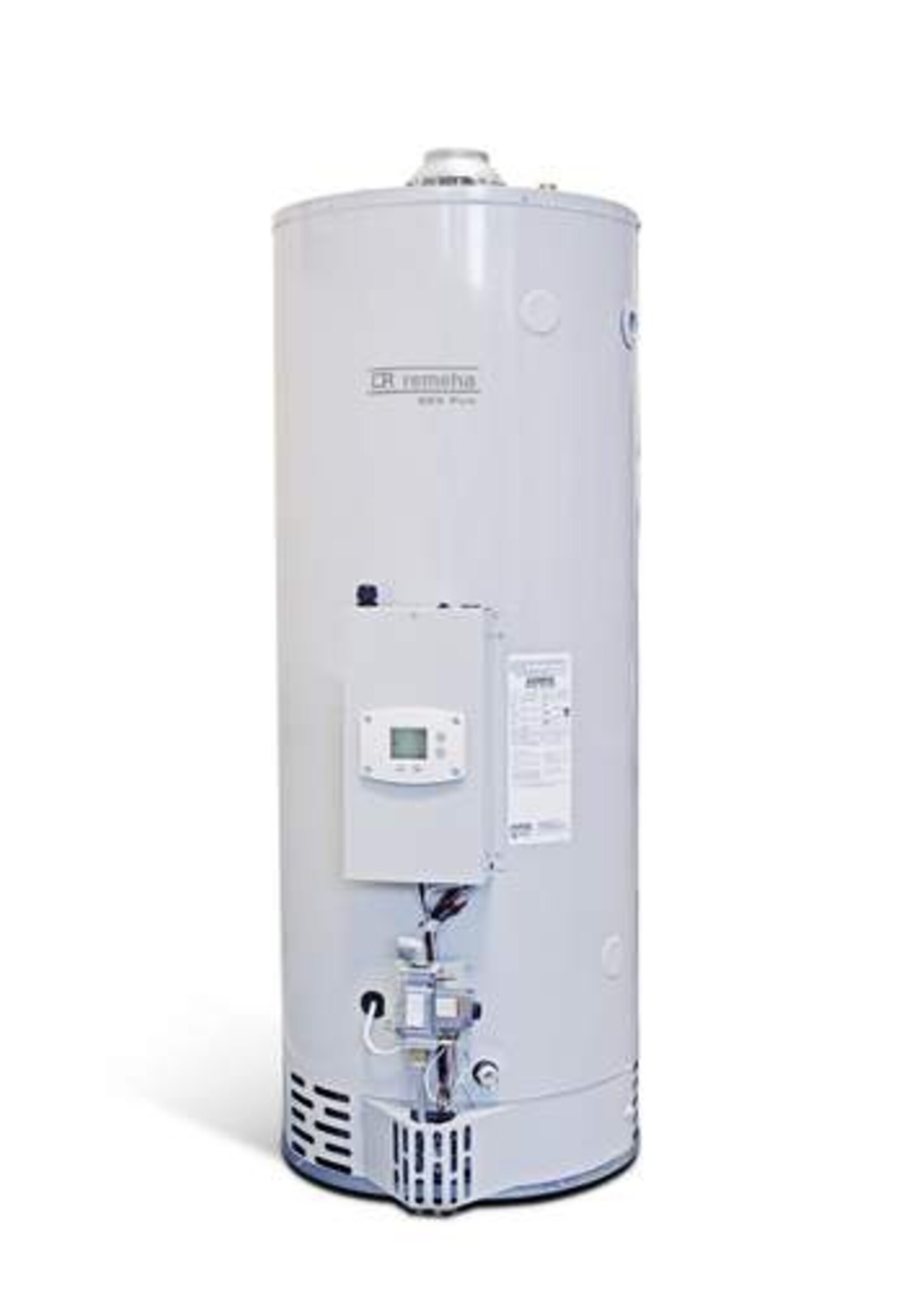

Remeha SEN-150 Plus boiler 150 liters

The SEN Plus is suitable for well-ventilated spaces, household use, small campsites, toilet buildings, marinas, sports facilities, or dairy farms. The boiler has an adjustable temperature up to 82°C. Ignition is via electronic ignition. It has a magnesium sacrificial anode.

Features

Double-enamelled inner tank (Vitraglas®)
Legionella-safe due to thermostat control
SEN Plus also suitable for propane with conversion kit
Thermostat up to 82°C
Low-NOX burner

Specifications

Feature	Value
Brand	Remeha
Supplier Code	7702640
EAN Code	8713809307783
Discount Group	080
Height	1200 mm
Nominal Power	10.32 kW
Diameter	559 mm
Energy Efficiency Class	B
Volume	144 l
Boiler Tank Material	Steel
With Thermometer	Yes
Closed Version	No
Capacity Profile	XL
Nominal Hot Water Diameter	3/4" (20)
Suitable for Low-Calorific Natural Gas	Standard factory setting
Suitable for High-Calorific Natural Gas	Standard factory setting
Suitable for Propane	With conversion kit, not included
Suitable for Butane	Not suitable
Suitable for Methane	Not suitable
Suitable for LPG	Not suitable
Suitable for Hydrogen	Not suitable
Nominal Cold Water Diameter	3/4" (20)
Gas Certification VR/SV	No
Gastec QA	No
Shell Material	Steel
Heating Time from 10 °C to 65 °C	59.889 min
With Cleaning Opening	No
Pilot Flame Burner	No
Protection Anode	Yes
Wall Mounting	No
Max. Operating Pressure	10.3 bar
Fuel Connection	External thread, conical BSPT-R (ISO 7-1 / EN 10226-1)
Air Supply Connection	None
Nominal Air Supply Channel Diameter	80 mm
Flue Gas Outlet Connection	Insert end
External Pipe Diameter Cold Water	26.441 mm
External Pipe Diameter Hot Water	26.441 mm
Gas Certification VR	No
Tank Surface Protection	Enamelled
Suitable for HBO	No
With Pressure Reducing Valve	No
Hot Water Capacity at 40 °C Continuous	277 l/min
Cold Water Connection	External thread, conical BSPT-R (ISO 7-1 / EN 10226-1)
Hot Water Connection	External thread, conical BSPT-R (ISO 7-1 / EN 10226-1)
Vertical Installation	Yes
Electronic Ignition	Yes
Nominal Flue Gas Outlet Channel Diameter	80 mm
With Breaker	Yes
With Drainage Option (Connection)	Yes
Gas Certification HR	No
Suitable for Propane	Yes
Suitable for Butane	No
Suitable for Methane	No
Nominal Fuel Diameter	1/2" (15)
