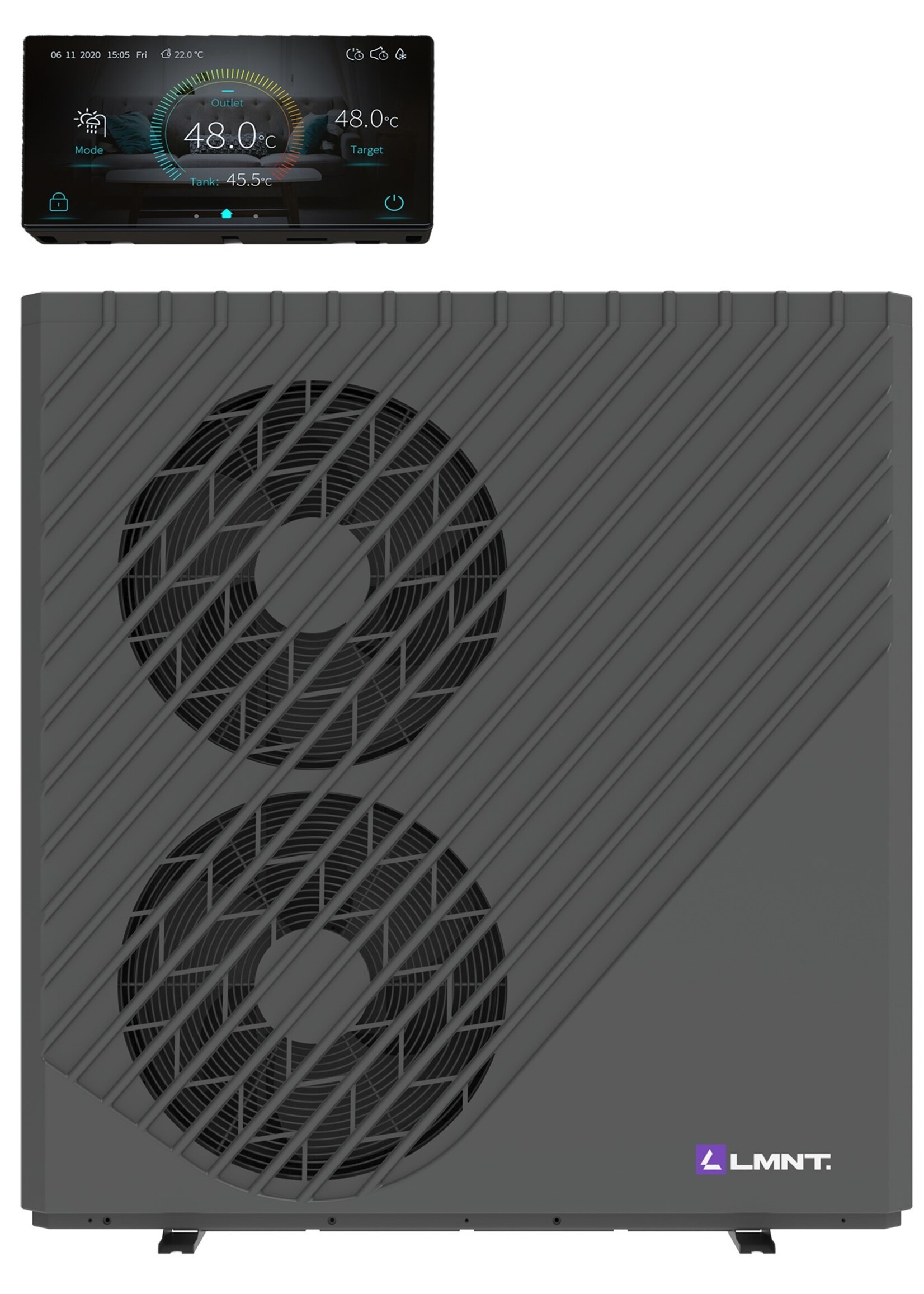

evnu CASWR080B-T – Monoblock Heat Pump with Propane (R290) – 28.0 kW Capacity

The Revnu CASWR080B-T is a powerful and future-ready air-to-water monoblock heat pump with a heating capacity ranging from 8.18 to 28.0 kW. This heat pump is designed as a single outdoor unit containing all critical components, making installation simple and maintenance-friendly.

One of the key features of the Revnu is its use of the natural refrigerant R290 (propane). With an exceptionally low GWP of just 3, this heat pump is an environmentally conscious solution. In addition to its sustainability, R290 also ensures high system efficiency, resulting in lower energy consumption and long-term cost savings.

Equipped with modulating inverter technology, the unit adapts to real-time heat demand, delivering excellent COP and SCOP values. This leads to significant energy savings, even in cold climates down to -25 °C.

The Revnu system extracts renewable energy from ambient air and converts it into heating, cooling and domestic hot water. It ensures a comfortable indoor climate throughout all seasons.

Key Features:

• Heating capacity: 8.18 ~ 28.0 kW

• Cooling capacity: 5.03 ~ 18.50 kW

• Domestic hot water capacity: 8.90 ~ 38.0 kW

• Power supply: 380–415V / 3-phase / 50-60Hz

• Refrigerant: R290 (propane), charge: 1.80 kg

• GWP: 3 (CO₂ equivalent: 0.0055 ton)

• Sound pressure level: 47 dB(A)

• Sound power level: 62 dB(A)

• Outdoor temperature range: -25 °C to +43 °C

• Maximum water temperature: 73 °C

• Energy efficiency class: A+++

• Water flow rate: 3.4 m³/h

• Number of fan motors: 2

• Enclosure material: Galvanized steel with ASA housing

• Dimensions (H x W x D): 1330 x 1350 x 540 mm

• Weight: 202 kg

• Maximum power input: 12.60 kW

• Nominal current: 17 A

ISDE Subsidy (Netherlands):

• ISDE 2024 subsidy: €4,725

• ISDE 2025 subsidy: €5,050

• Eligible under the Dutch ISDE scheme

Applications:

• Large homes and villas

• Apartment buildings

• Office and commercial facilities

• Agricultural buildings and workshops

• All-electric and hybrid heating systems

• Underfloor heating, low-temperature radiators, fan convectors

• Domestic hot water in combination with a storage tank

• New builds and energy-neutral renovations

Why choose the Revnu CASWR080B-T?

• Compact monoblock unit with integrated system components

• Natural refrigerant with ultra-low environmental impact

• High efficiency and low operating costs

• Quiet operation with powerful output

• Suitable for heating, cooling and DHW

• Fully future-proof and eligible for energy subsidies

The Revnu CASWR080B-T is the ideal heat pump for large-scale, gas-free heating systems. With its high performance, natural refrigerant, and efficient design, it is ready for the energy future.
