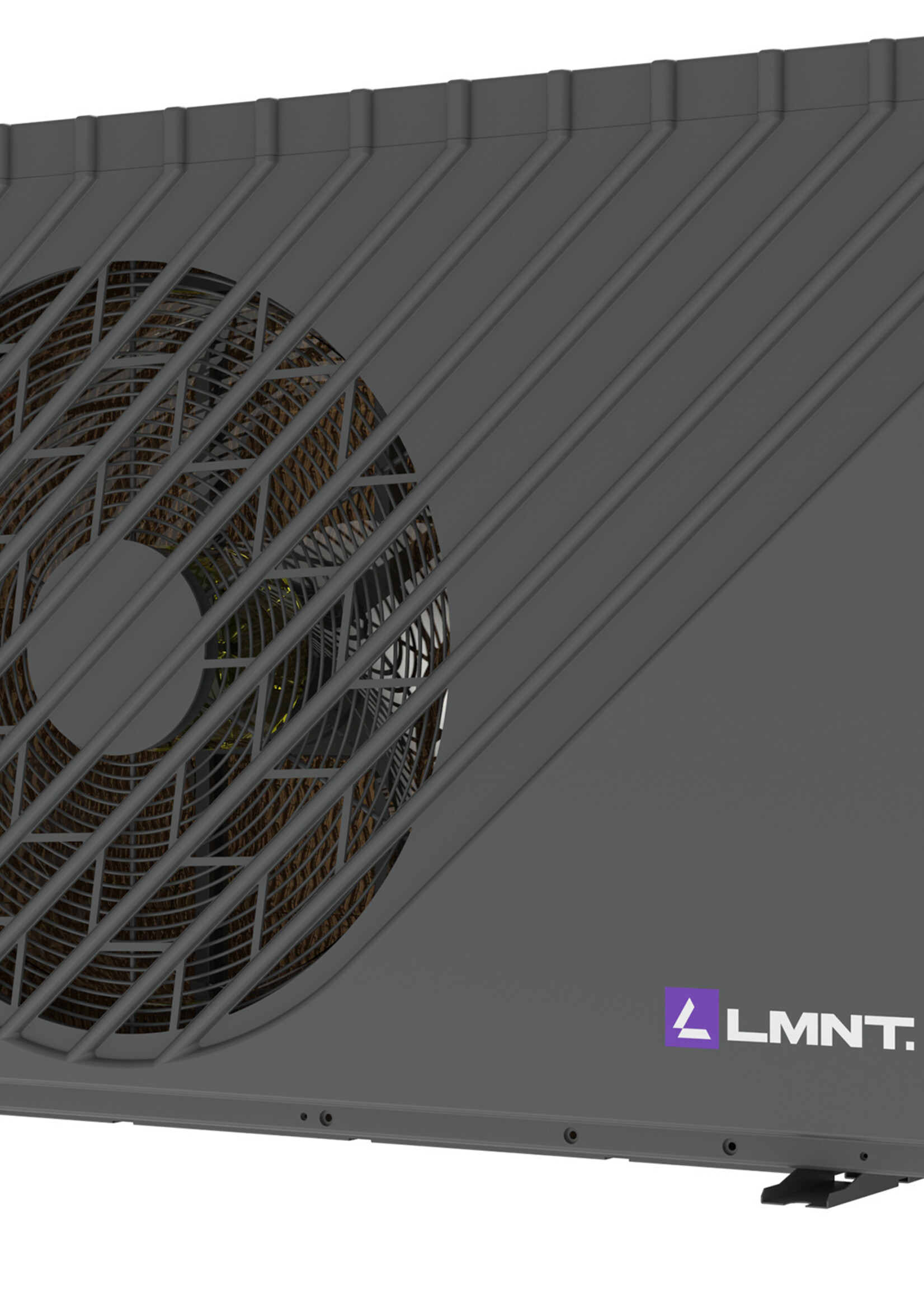

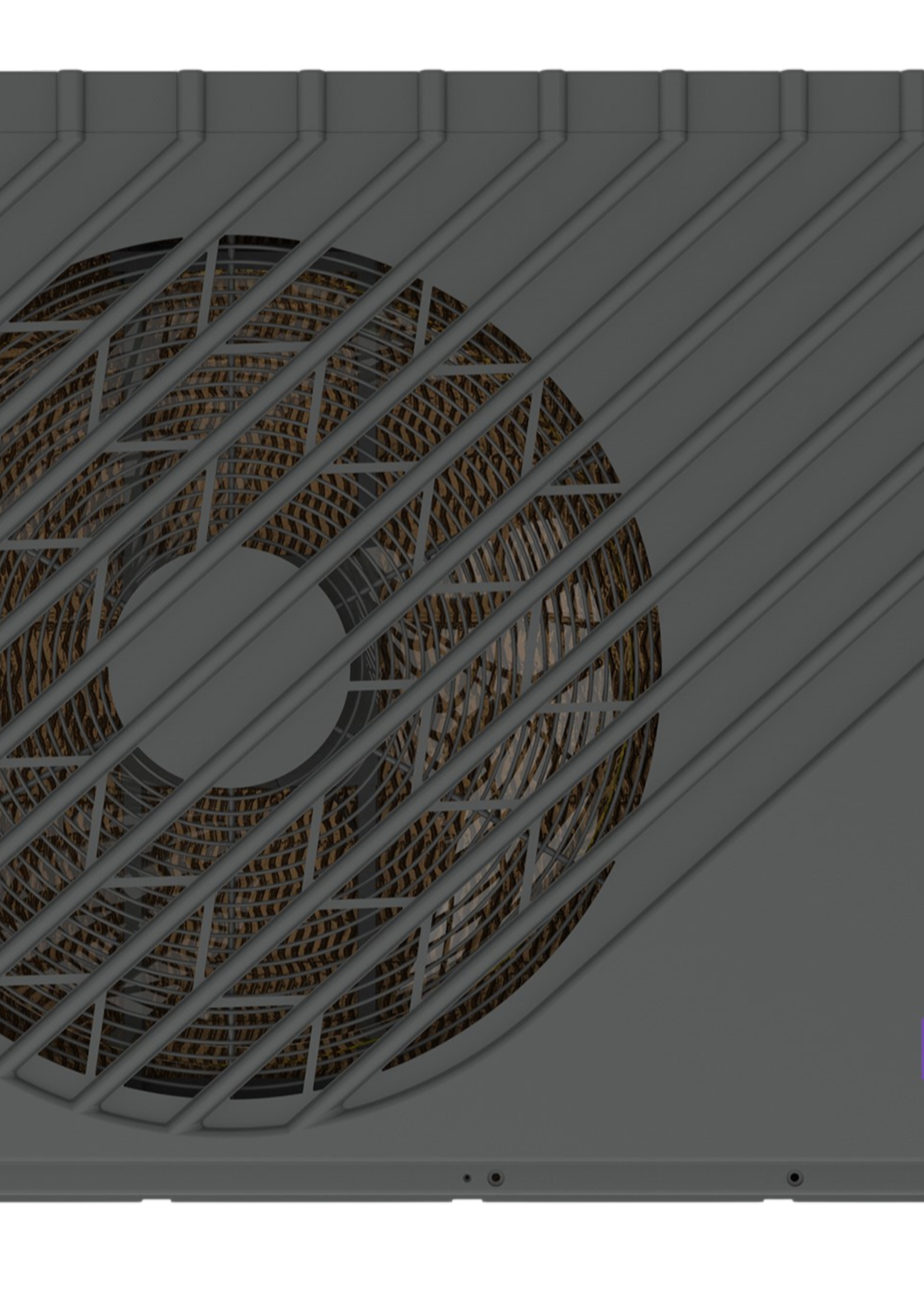

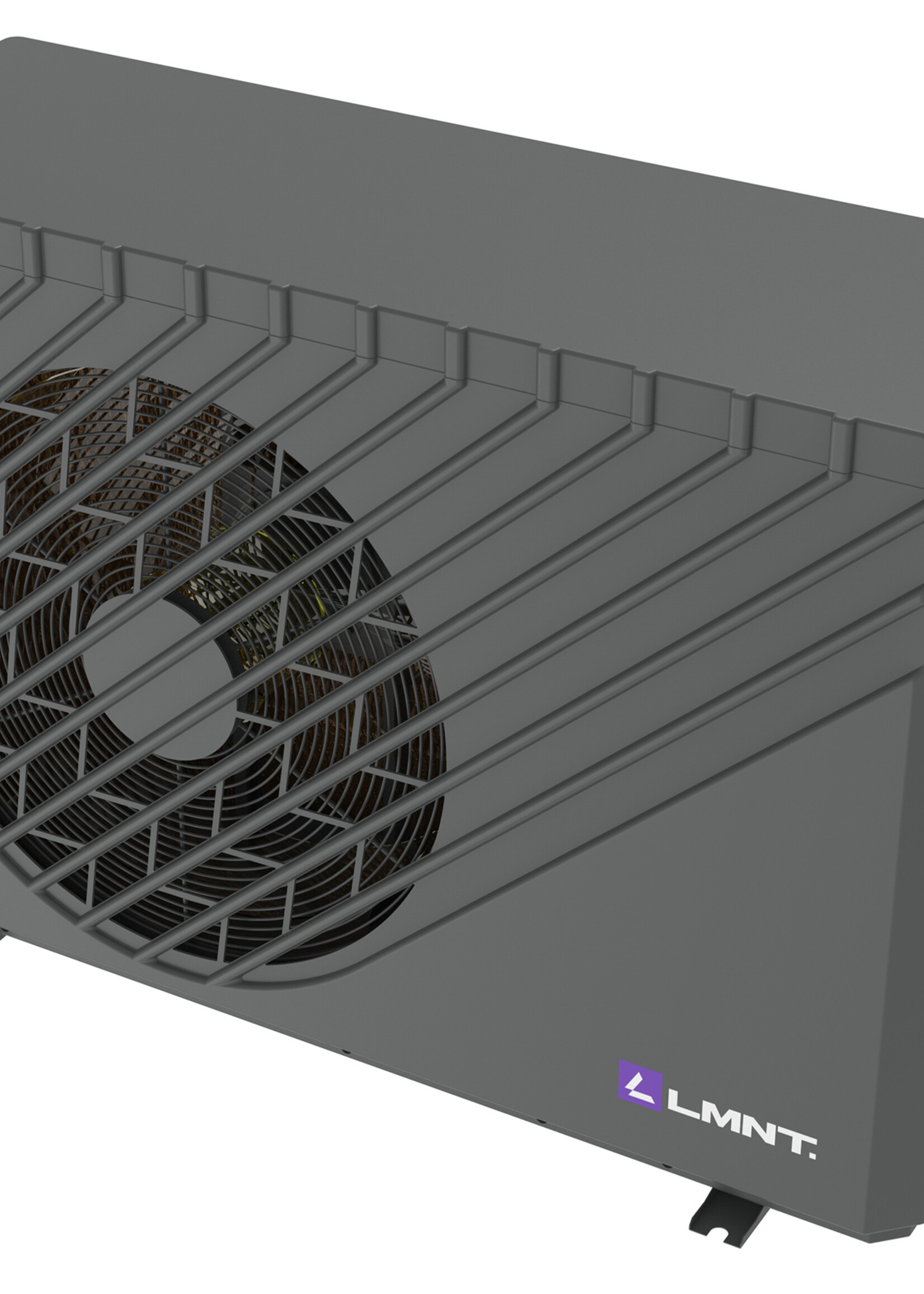

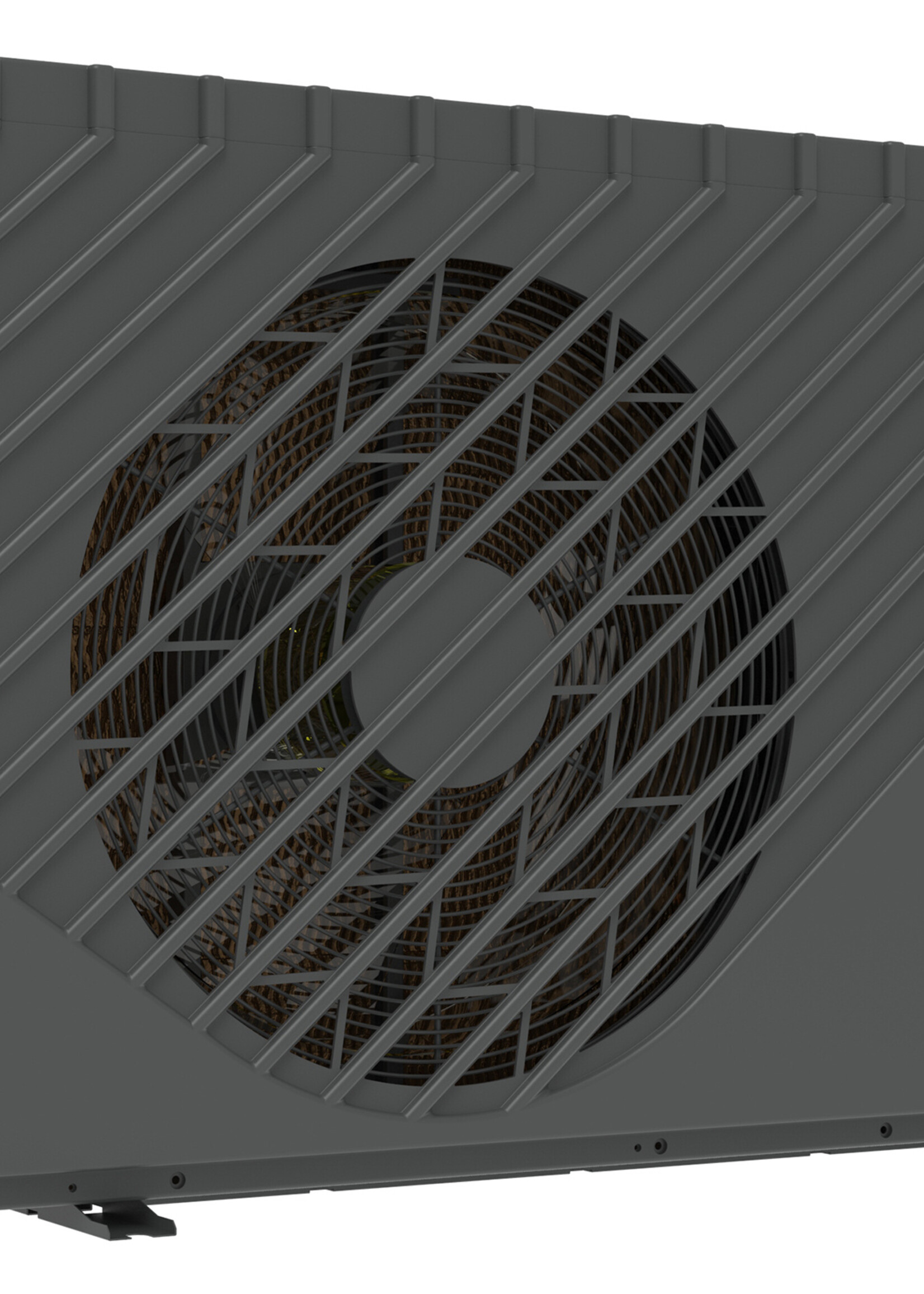

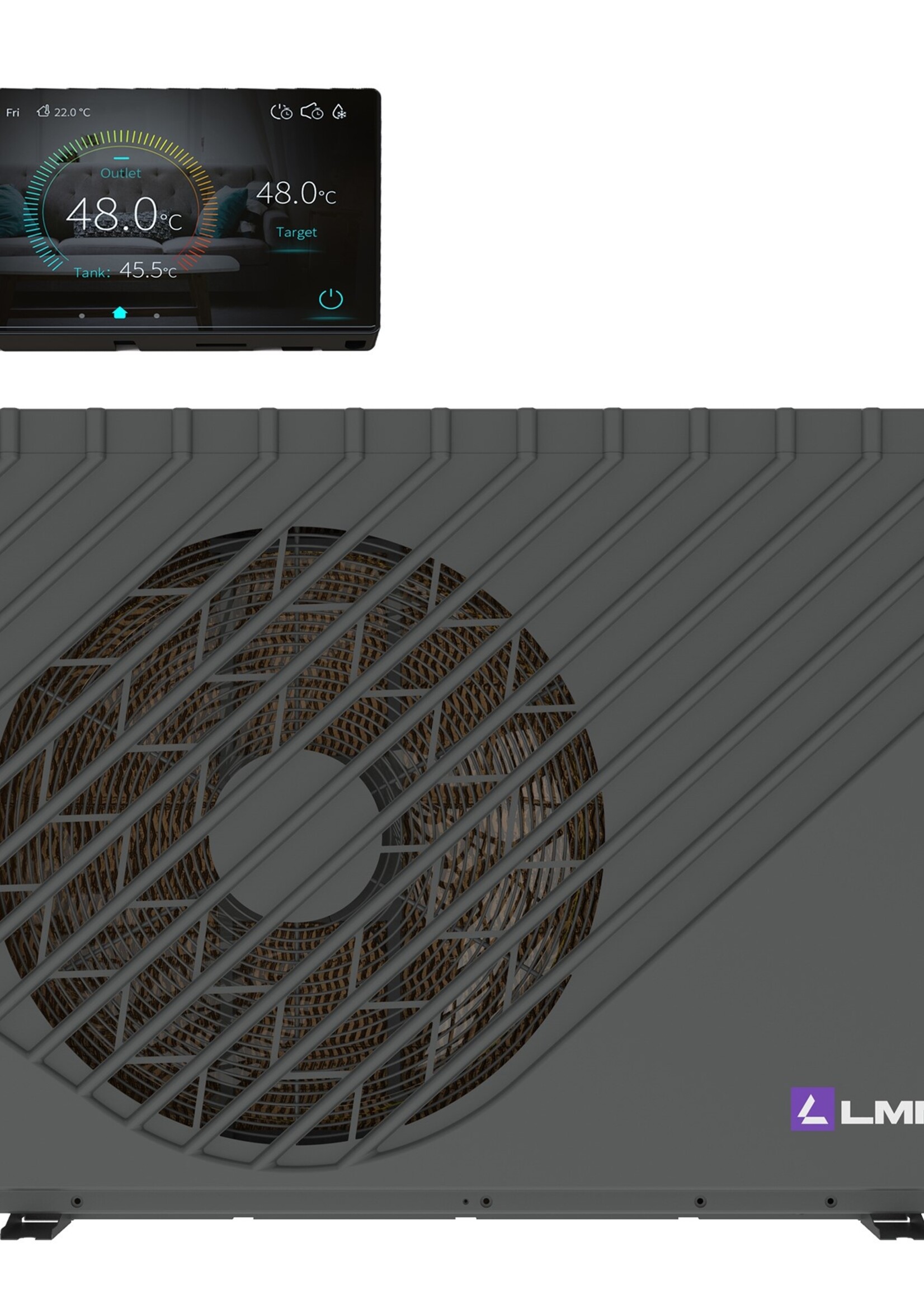

Revnu CASWR040B-T Monoblock Heat Pump – 14.0 kW, Propane (R290)

The Revnu CASWR040B-T is a powerful and sustainable air-to-water monoblock heat pump that uses the natural refrigerant propane (R290). With a heating capacity of 14.0 kW, this model is suitable for medium to large homes, apartment buildings, and utility projects where energy efficiency, low emissions, and quiet operation are crucial.

Thanks to the monoblock design, all refrigeration components are located in the outdoor unit, eliminating the need for F-gas certification during installation. This makes the installation process faster, simpler, and more cost-effective. The unit is ideal for use in all-electric or hybrid heating systems, and can provide heating, cooling, and domestic hot water in combination with a suitable buffer or storage tank.

With a SCOP up to 4.84 at 35 °C and an A+++ energy label, the CASWR040B-T delivers excellent seasonal efficiency – even at outdoor temperatures as low as -25 °C.

Key Benefits:

• Refrigerant R290 (propane): very eco-friendly with low GWP (3)

• High capacity: 14.0 kW at A7/W35, suitable for larger systems

• Monoblock system: no F-gas handling or license required

• Energy efficient: SCOP up to 4.84, SEER up to 4.96

• Versatile functionality: heating, cooling, and domestic hot water

• Low noise operation: just 55 dB(A) at 1 meter

• Suitable for renovations and new builds

• All-electric ready: replaces traditional gas boilers

Technical Specifications (summary):

• Model: CASWR040B-T

• Type: Air-to-water monoblock heat pump

• Heating capacity (A7/W35): 14.0 kW

• COP (A7/W35): 4.84

• SCOP (W35 – average climate): 4.84

• SCOP (W55 – average climate): 3.35

• Heating capacity (A-7/W35): 13.2 kW

• Cooling capacity (A35/W18): 14.0 kW

• SEER: 4.96

• Refrigerant: R290 (propane) – 1.8 kg

• GWP of refrigerant: 3

• Energy label heating (W35): A+++

• Energy label heating (W55): A++

• Energy label cooling (W18): A++

• Power supply: 400V ~ 3N / 50Hz

• Power consumption heating (A7/W35): 2.89 kW

• Power consumption heating (A-7/W35): 4.68 kW

• Power consumption cooling: 2.82 kW

• Sound pressure at 1 meter: 55 dB(A)

• Dimensions (L x D x H): 1400 x 500 x 1100 mm

• Weight: 162 kg

• Protection class: IPX4

• Operating temperature (heating): -25 °C to +35 °C

• Operating temperature (cooling): -5 °C to +46 °C

Applications:

• Larger homes and apartment buildings

• New construction and renovation projects

• All-electric heating systems

• Domestic hot water in combination with buffer or storage tank

• Underfloor heating and low-temperature radiators

• Light commercial and utility applications

The Revnu CASWR040B-T is a complete solution for sustainable, high-capacity heating, cooling, and domestic hot water. With eco-friendly propane refrigerant, top-tier performance, and a compact monoblock design, it’s a future-proof replacement for gas-fired systems.
