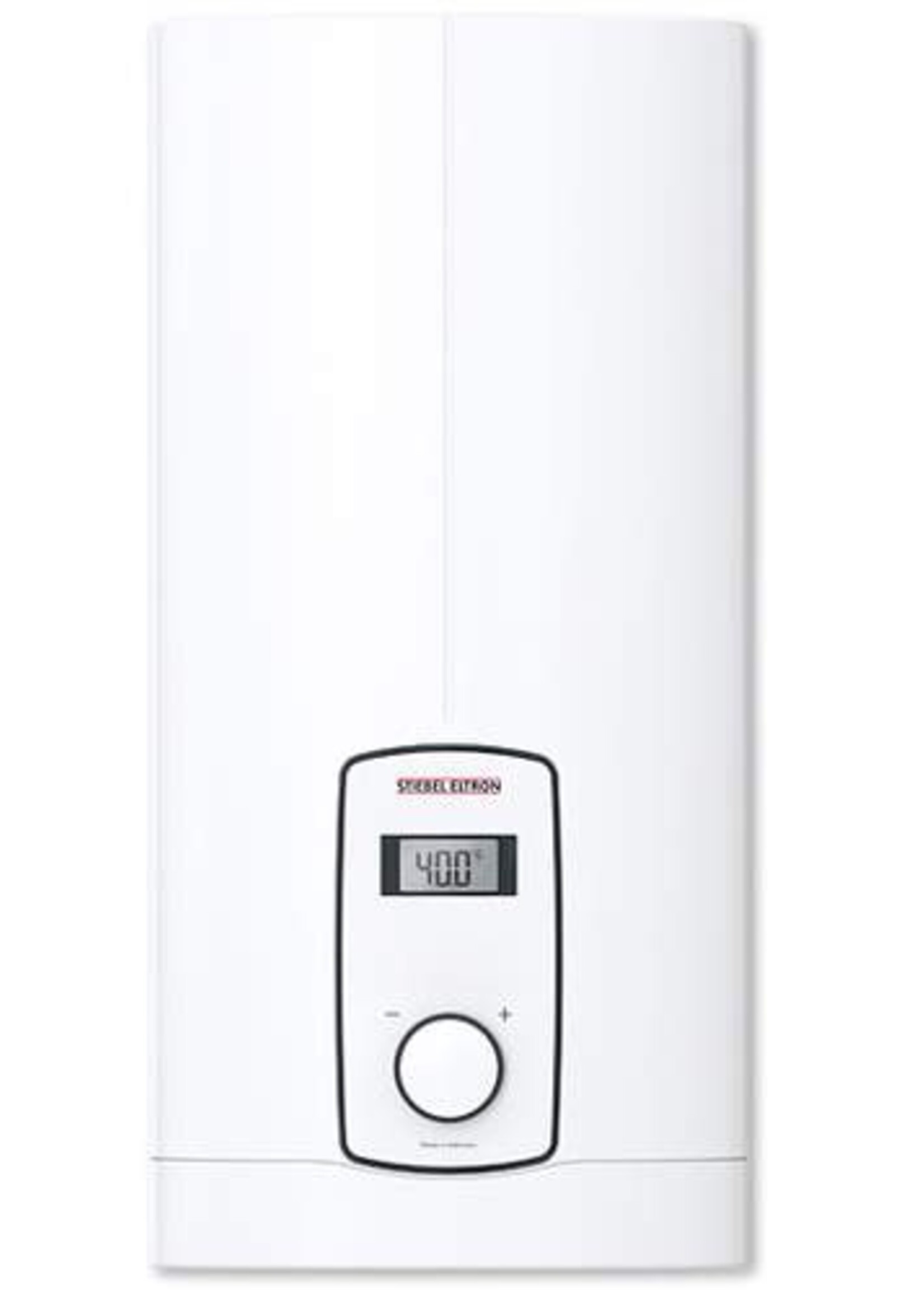

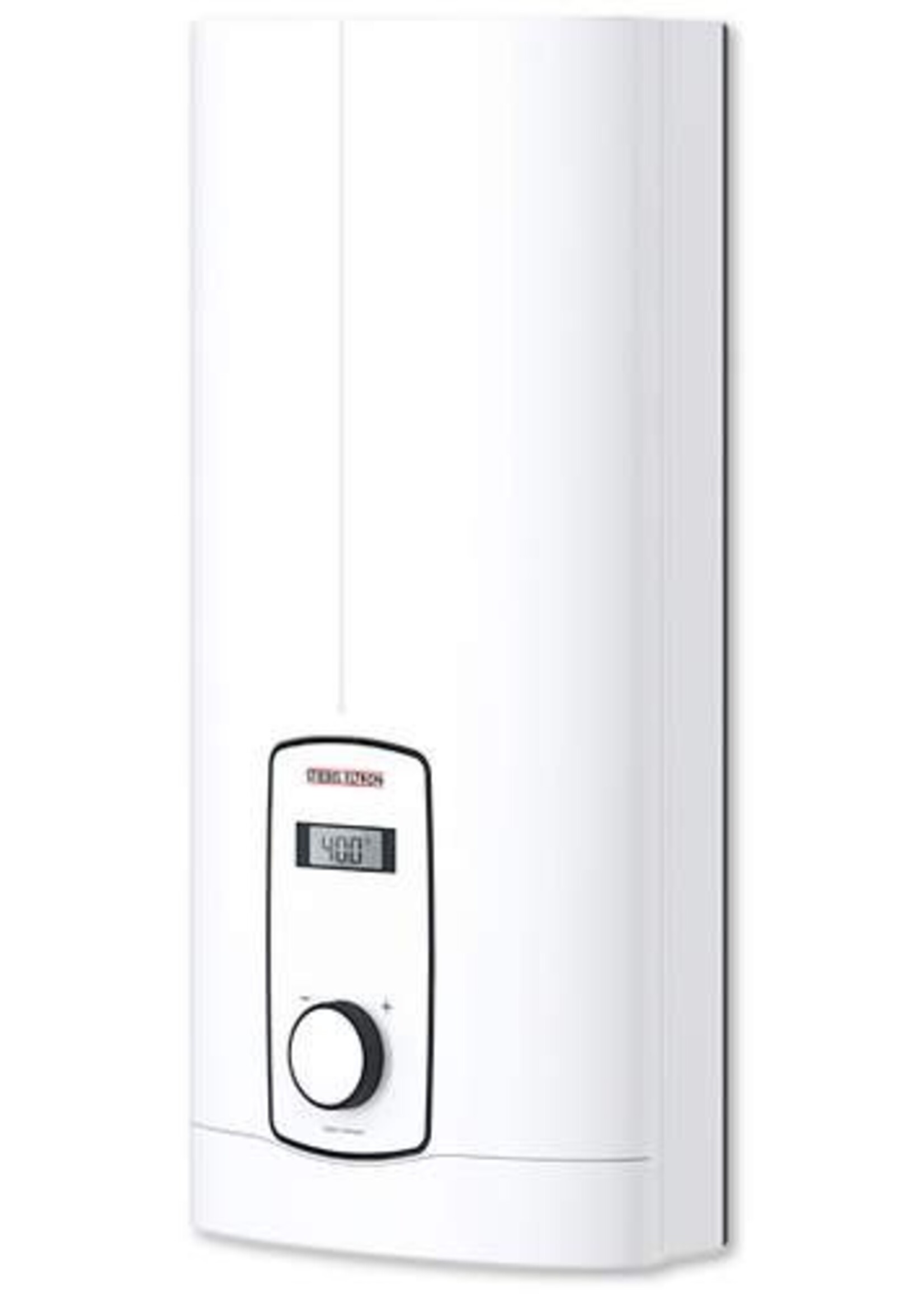

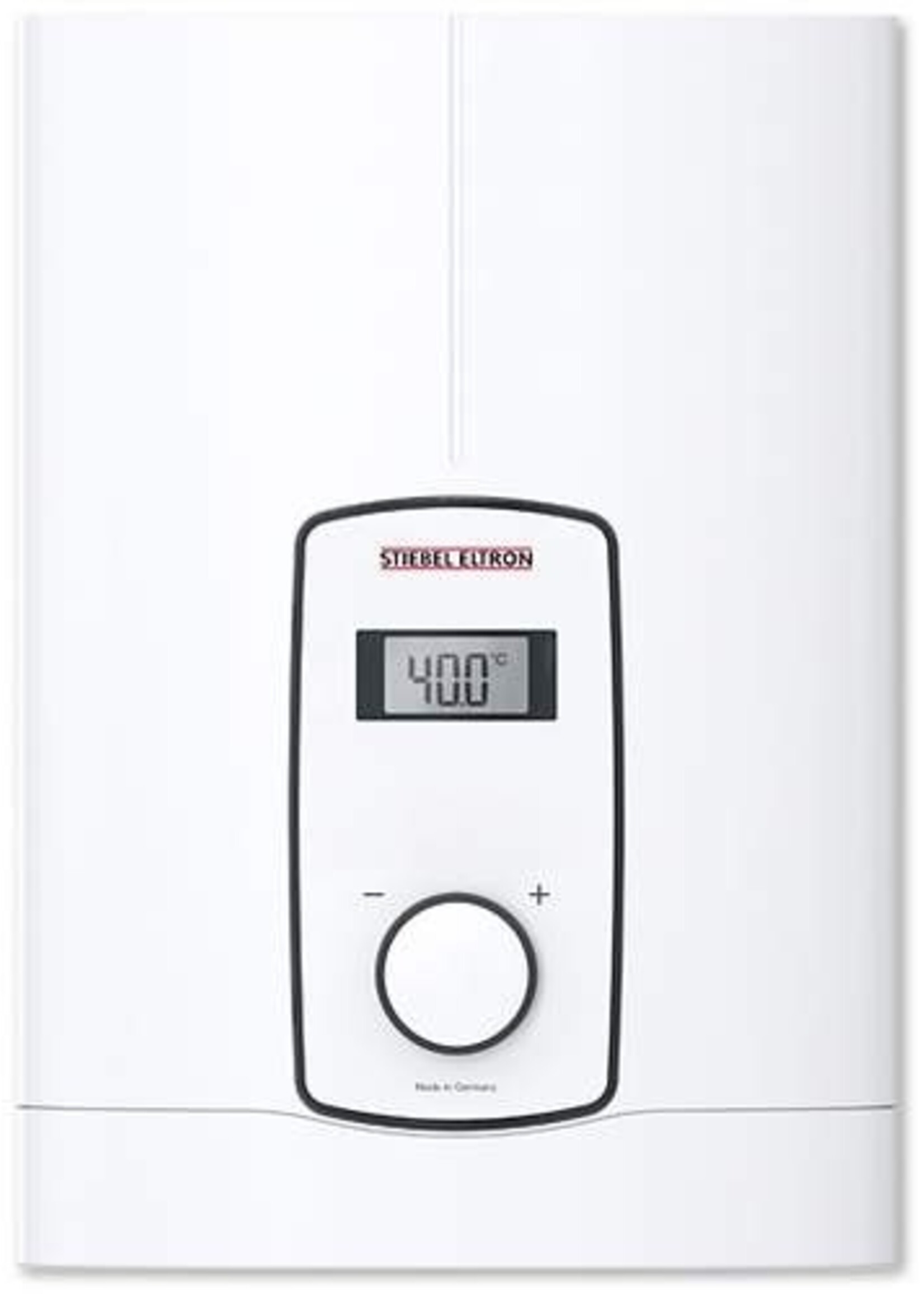

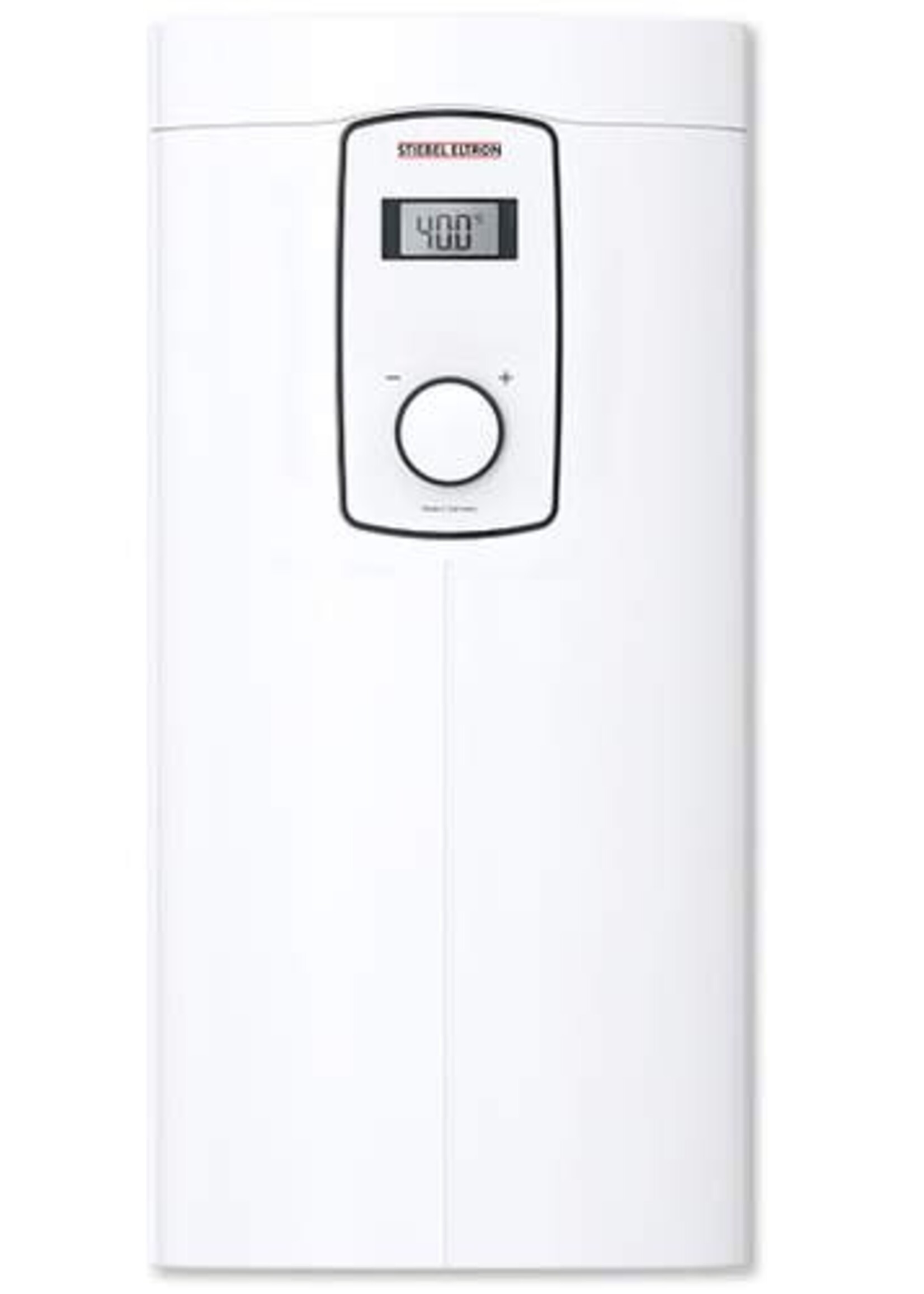

Stiebel Eltron DHB-E 18 LCD 25A electrically controlled instantaneous water heater

Brand	Stiebel Eltron
Supplier code	236744
EAN Code	4017212367445
Mounting method	Upper/lower structure
Width	225 mm
Height	466 mm
Depth	116 mm
Weight	2.9 kg
Nom. power	18 kW
With tap/mixer tap	No
With display	Yes
Heating system	Bare wire
Type of arrangement	Electronic
Safety shutdown	Electronic
Asset management	Electronic
Temperature indication	Digital
Energy efficiency class	A
Suitable for KNX	No
Nom. content	0.4 l

Operation	Manually
Pressure vessel material	Plastic
Suitable for preheated water	Yes
Connection capacity	18 - 18
Degree of protection (IP)	IP25
Nom. voltage 1	380 V
Nom. voltage 2	400 V
Nom. diameter hot tap water	1/2" (15)
Energy efficiency class (812/2013/EU)	A
Nom. diameter cold tap water	1/2" (15)
Suitable for plastic pipe	Yes
Max. working pressure	10 bar
External pipe diameter cold tap water	21.5 mm
External pipe diameter hot tap water	21.5 mm
Cold tap water connection	External thread
Hot water connection	External thread
Max. permissible operating pressure	10 bar

This STIEBEL ELTRON DHB-E 18 LCD 25A comfort instantaneous water heater also supplies multiple taps with hot water at the same time, for example in the bathroom and kitchen. The closed, pressure-resistant appliance can be combined with all commercially available pressure taps. The appliance saves up to 30% energy and water thanks to the electronic power control with 3i technology

Make the right decision in no time
The temperature is set infinitely and digitally using a rotary knob and shown on the display. 3 sensors ensure that the set temperature is reached up to the power limit, accurate to the degree. The appliance can be supplemented with an optionally available comfort remote control.

The main features

Electronically controlled instantaneous water heater
Precise desired temperature of 20-60° C to the degree thanks to 3i technology
Sufficient hot water for multiple taps
LC display for temperature indication
Temperature setting in steps of 1 °C
Wide choice of models
If desired, the anti-scald protection can be permanently activated at 43° C
Can be combined with remote control
