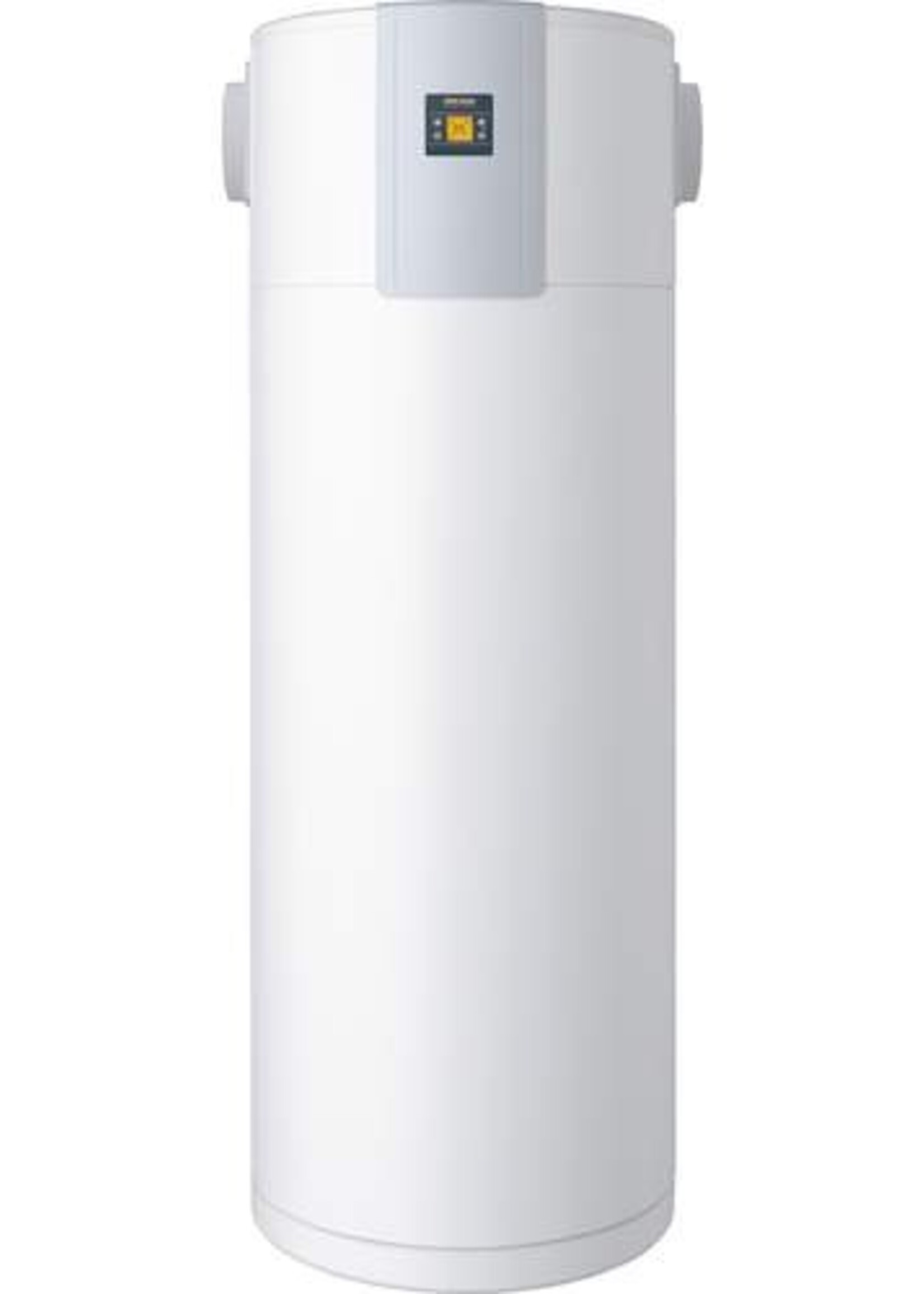

The STIEBEL ELTRON WWK 301 electronic heat pump water heater demonstrates the flexibility of this type of boiler. Equipped with air ducts, the heat pump water heater can draw in outside air or heat released from a neighboring room. Moreover, the ducts can be installed horizontally or vertically, depending on the conditions in the installation space.
Investing for the Future
The device also impresses with its features: it achieves the highest possible energy efficiency and thereby delivers high hygienic hot water temperatures. The simple combination of the heat pump with a solar panel installation makes the operation even more resource-efficient, as the self-generated electricity can be used to heat the tap water.
Key Features:
- Heat pump water heater installed indoors
- Compact range for circulation operation
- Hygienic hot water temperatures up to 65°C possible with efficient heat pump operation
- Use of ambient heat for energy-efficient hot water preparation
- Maximum safety and cost savings through maintenance-free DC anode
- Whisper-quiet operation due to modern sound decoupling
- For supplying one or more tap points
- High user comfort through electronic control with LC display
- Connection to a photovoltaic system to increase self-consumption
- High hot water comfort with 302 l nominal capacity
- Compact range for circulation operation
- Hygienic hot water temperatures up to 65°C possible in pure heat pump operation
- Use of ambient heat for energy-efficient hot water preparation
- Maximum safety and cost savings
Technical Specifications:
| Feature |
Value |
| Brand |
Stiebel Eltron |
| Supplier Code |
230950 |
| EAN Code |
4017212309506 |
| Discount Group |
094 |
| Width |
690 mm |
| Model |
Monobloc |
| Height |
1905 mm |
| Depth |
690 mm |
| Weight |
135 kg |
| Tank Material |
Enamel-coated steel |
| Water Connection |
1" |
| Heating Connection |
No |
| Heat Pump Input Power |
0.5 kW |
| Additional Heating Input Power |
1.5 kW |
| Standby Power Consumption/24 h |
0.6 kWh |
| Suitable for Wall Mounting |
No |
| Energy Efficiency Class |
A+ |
| Nominal Capacity |
302 l |
| Circulation Connection |
1/2" |
| Operating Pressure (water side) |
8 bar |
| Air Temperature Lower Threshold |
-8 °C |
| Air Temperature Upper Threshold |
42 °C |
| Solar Integration |
No |
| Max. Water Temperature |
65 °C |
| With Air Duct Connection |
Yes |
| Network Constant according to EN 255 |
4.22 |
| Heat Source |
Outside Air |
| Connection Voltage |
230 V |
| Refrigerant R134 A |
Yes |
| Self-learning |
No |
| Protection Class (IP) |
IP24 |
| Nominal Voltage 1 |
230 V |
| Capacity Profile |
XL |
| With IFTTT Support |
No |
| Adjustable Air Discharge |
Yes |
| Thermostat Type |
Electronic |
| Refrigerant Content |
0.85 kg |
| Energy Index according to EN 16147 (7 °C) |
3.22 |
| Energy Index according to EN 16147 (15 °C) |
3.48 |
| Heating Element with Soapstone Sheath |
No |
| Anode Protection |
Titanium |
| Compatible with Apple HomeKit |
No |
| Compatible with Google Assistant |
No |
| Compatible with Amazon Alexa |
No |
| Nominal Power Consumption of Heat Pump according to EN 16147 (7°C) |
0.4 kW |
| Nominal Power Consumption of Heat Pump according to EN 16147 (20°C) |
0.4 kW |
| Energy Index according to EN 16147 (20 °C) |
3.75 |
| Energy Efficiency Class (20 °C) |
A+ |
| Energy Efficiency Class (7 °C) |
A+ |
| Global Warming Potential (GWP) |
1430 |
| Energy Efficiency Class (812/2013/EU) |
A |
| With Circulation Connection |
Yes |
| Three-Phase Version |
No |
| Tap Water Connection |
1" |
| With Digital Display |
Yes |
| Refrigerant Type |
R134a |
| Suitable for Floor Mounting |
Yes |
| Air Temperature |
-8 - 42 °C |
