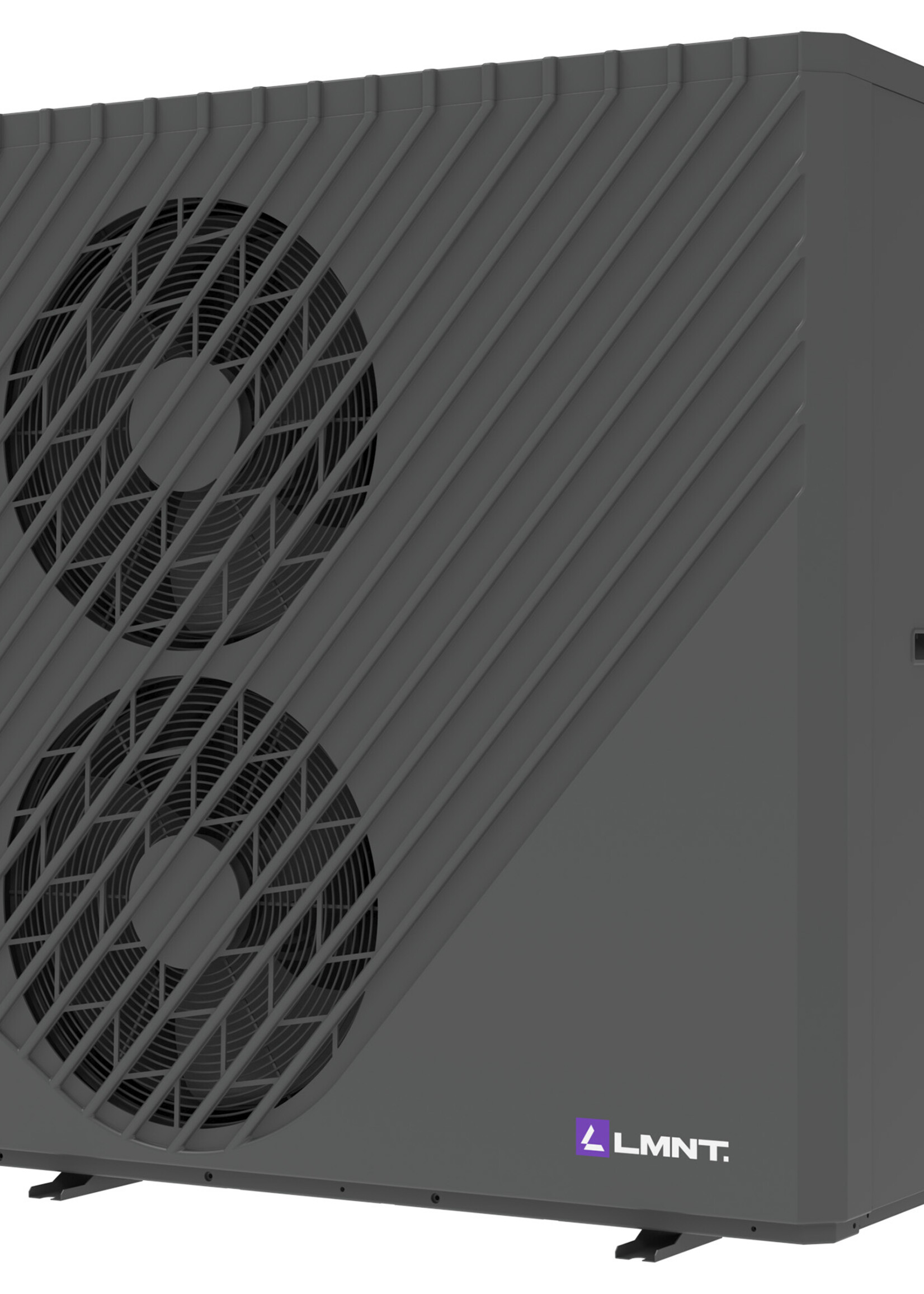

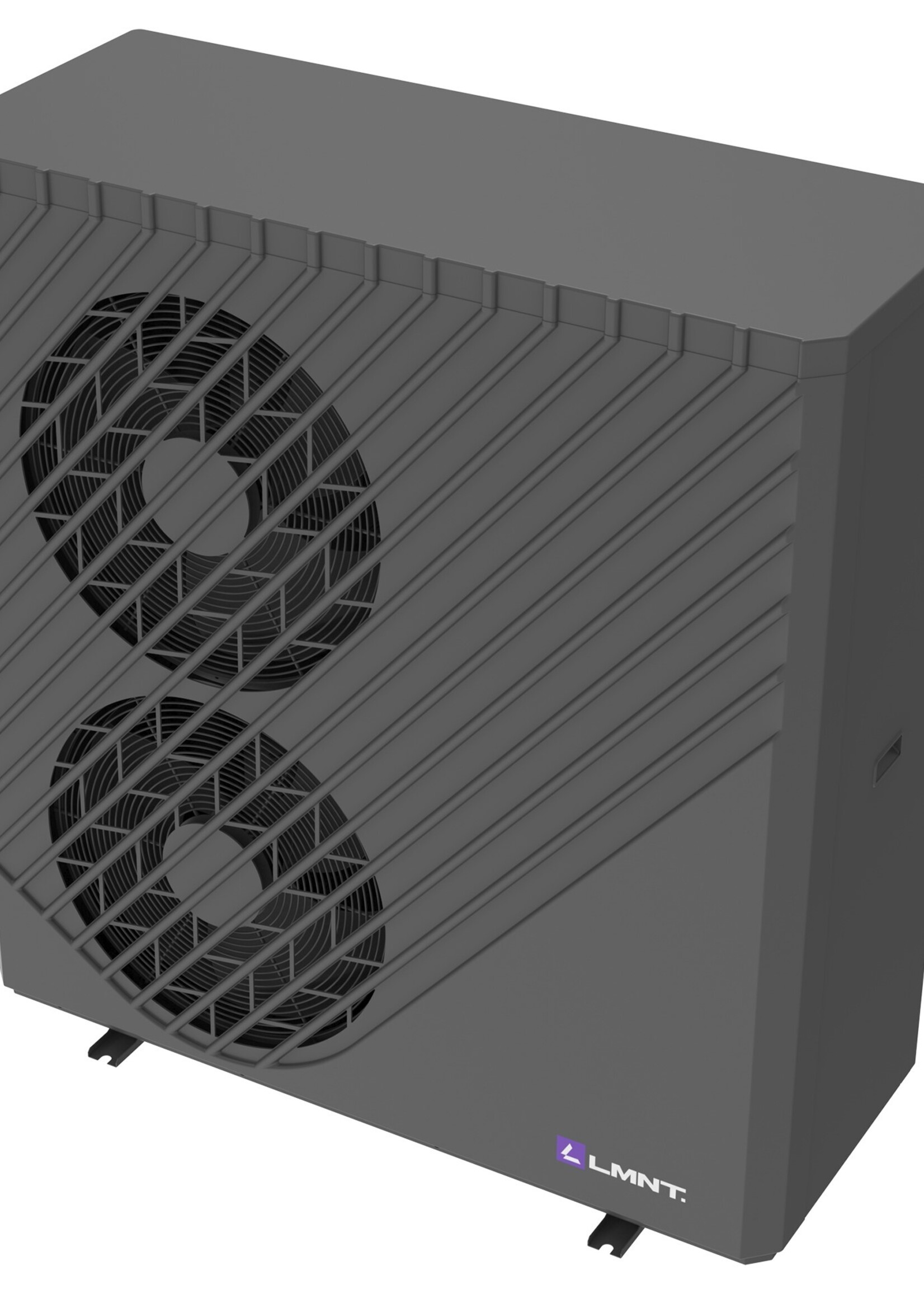

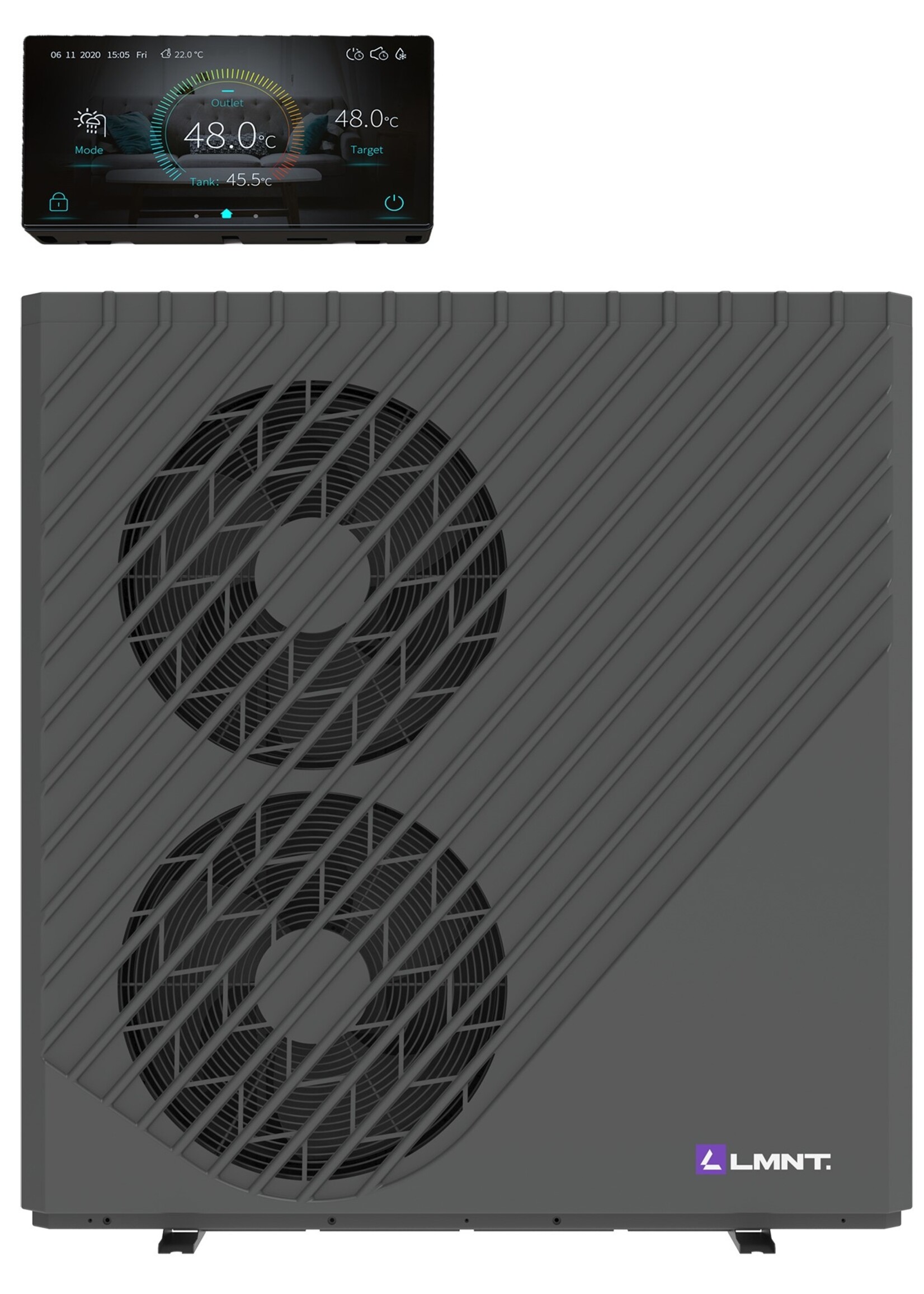

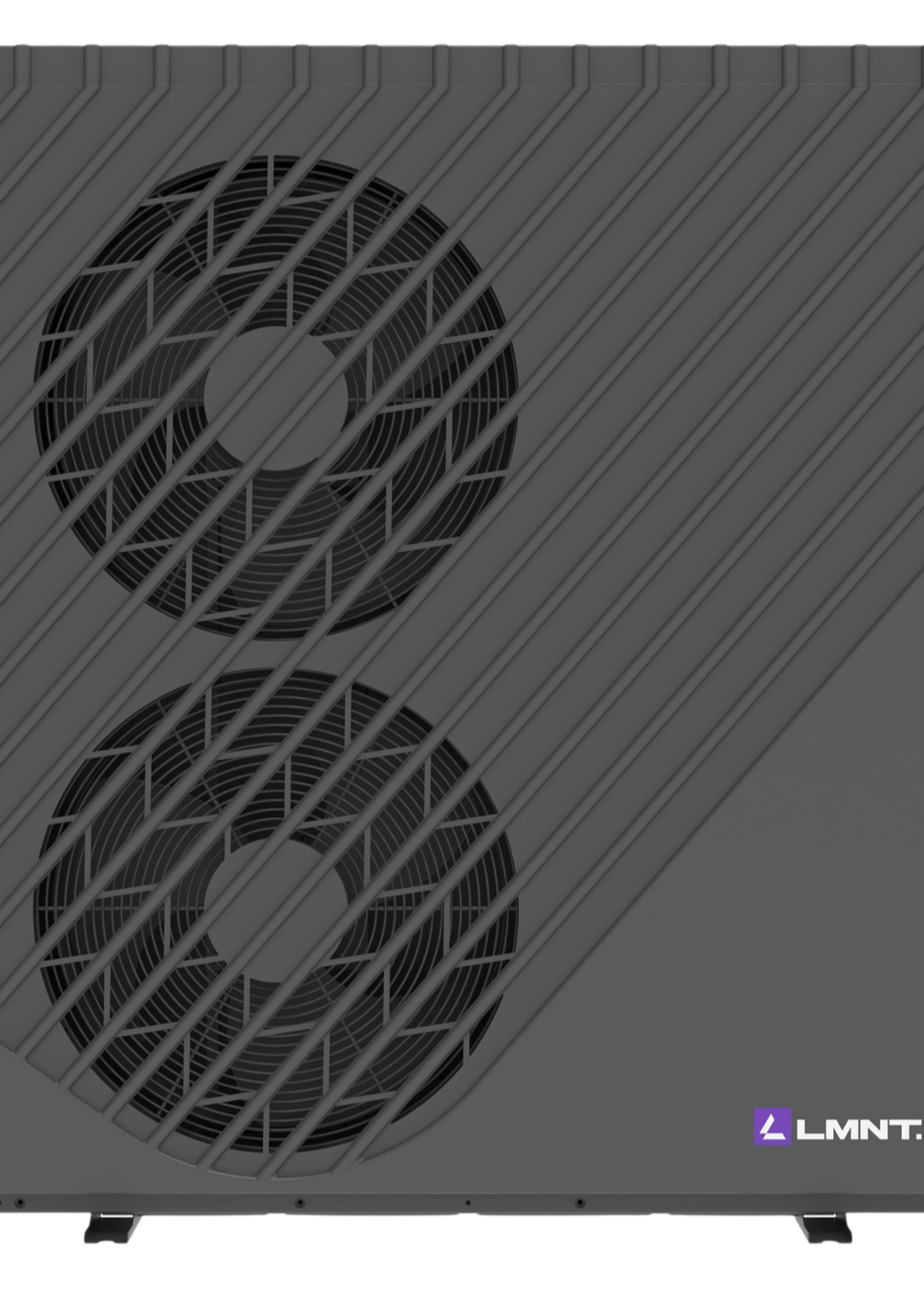

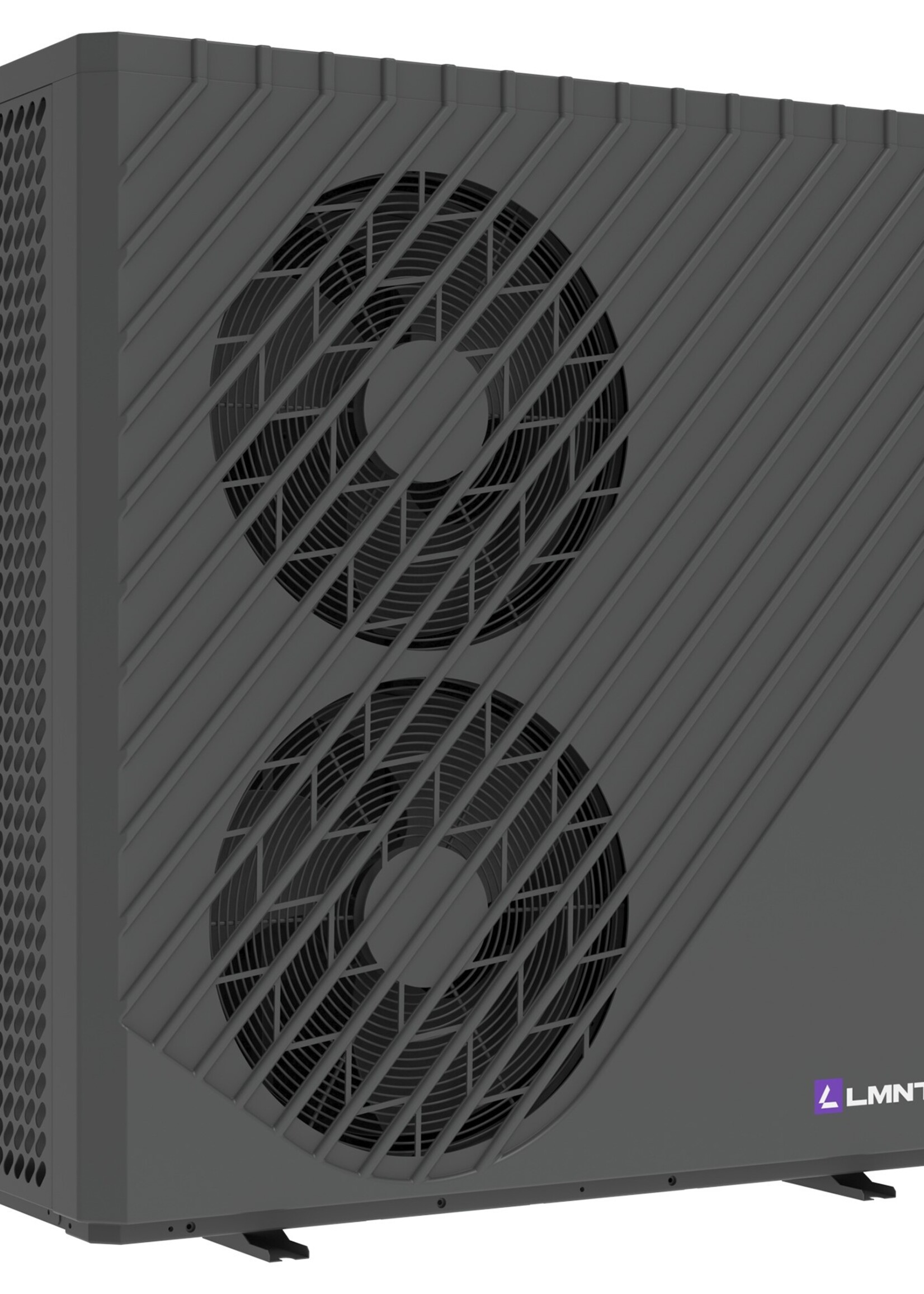

Revnu CASWR060B-T – Monoblock Heat Pump with Propane (R290) – 22.0 kW Output

The Revnu CASWR060B-T is a powerful, robust, and highly efficient air-to-water monoblock heat pump using the natural refrigerant R290 (propane). With an impressive heating capacity of 22.0 kW at A7/W35, this heat pump is specifically designed for large homes, commercial buildings, apartment complexes, agricultural facilities, and other applications with high heating demands.

Thanks to its monoblock design, the entire refrigeration circuit is contained within the outdoor unit, simplifying installation and eliminating the need for F-gas-certified technicians. As a result, the CASWR060B-T is not only cost-efficient to install, but also future-proof in a market increasingly focused on natural refrigerants.

The heat pump delivers top performance in both heating and cooling modes, and can also supply domestic hot water when combined with a storage tank. The advanced inverter compressor ensures modulating operation, meaning the system continuously adjusts to real-time heat demand – with a SCOP of 4.64 (W35) and an energy label of A+++.

Key Benefits

• High capacity: 22.0 kW at A7/W35 – suitable for larger buildings and installations

• Natural refrigerant (R290): eco-friendly, GWP of just 3

• Monoblock design: all cooling components outside – no F-gas certification needed

• Very energy efficient: SCOP up to 4.64, SEER up to 5.02

• All-electric ready: full replacement of gas-fired systems

• Provides heating, cooling, and domestic hot water

• Quiet operation: just 59 dB(A) at 1 meter distance

• Suitable for low-temperature systems (e.g. underfloor heating)

• Reliable performance, even down to -25 °C outdoor temperature

Technical Specifications (summary)

• Model: CASWR060B-T

• Type: Air-to-water monoblock heat pump

• Refrigerant: Propane (R290) – charge: 2.5 kg

• GWP: 3

• Heating capacity (A7/W35): 22.0 kW

• Heating capacity (A-7/W35): 21.0 kW

• COP (A7/W35): 4.74

• SCOP (W35): 4.64

• SCOP (W55): 3.33

• Cooling capacity (A35/W18): 20.6 kW

• SEER: 5.02

• Power supply: 400V ~ 3N / 50Hz

• Power input heating (A7/W35): 4.64 kW

• Power input heating (A-7/W35): 6.78 kW

• Power input cooling: 4.10 kW

• Sound pressure @ 1 m: 59 dB(A)

• Dimensions (L x W x H): 1400 x 500 x 1100 mm

• Weight: 188 kg

• Protection class: IPX4

• Operating temp (heating): -25 °C to +35 °C

• Operating temp (cooling): -5 °C to +46 °C

• Max. flow temperature: 75 °C

• Max. water system pressure: 6 bar

Applications

• Large homes & villas

• Apartment complexes

• Commercial buildings & office spaces

• Agricultural buildings (barns, workshops)

• Housing associations & light commercial systems

• New builds and sustainable renovations

• All-electric and hybrid heating systems

• Underfloor heating, low-temp radiators, LT convectors

• DHW in combination with buffer tanks and boilers

The Revnu CASWR060B-T is the ideal choice for those seeking sustainable power, quiet operation, and maximum efficiency in one reliable system. It combines cutting-edge performance with ecological design and easy installation – ready for tomorrow’s energy transition.
